●Disassembling Procedure
147
8
Disassembling Procedure
Disassembling
Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.
① Disconnect the relay
connector of the
discharge thermistor. (wire
color: black) Remove
the band banding the
discharge thermistor in
the oil cooling unit.
② Remove the heat
insulating tube.
③ Detach the fixture, and
remove the discharge
thermistor.
3.
Removing discharge thermistor (Th-6)
① Disconnect the relay
connector of the EEV
outlet thermistor. (wire
color: white) Remove the
band banding the EEV
outlet thermistor in the oil
cooling unit.
② Remove the dew proofing
material.
③ Pull out the EEV outlet
thermistor from the
thermistor holder.
4.
Removing EEV outlet thermistor (Th-8)
① Disconnect the relay
connector of the
condenser thermistor.
(wire color: red) Remove
the band banding the
condenser thermistor in
the oil cooling unit.
② Pull out the condenser
thermistor from the
thermistor holder.
5.
Removing condenser thermistor (Th-7)

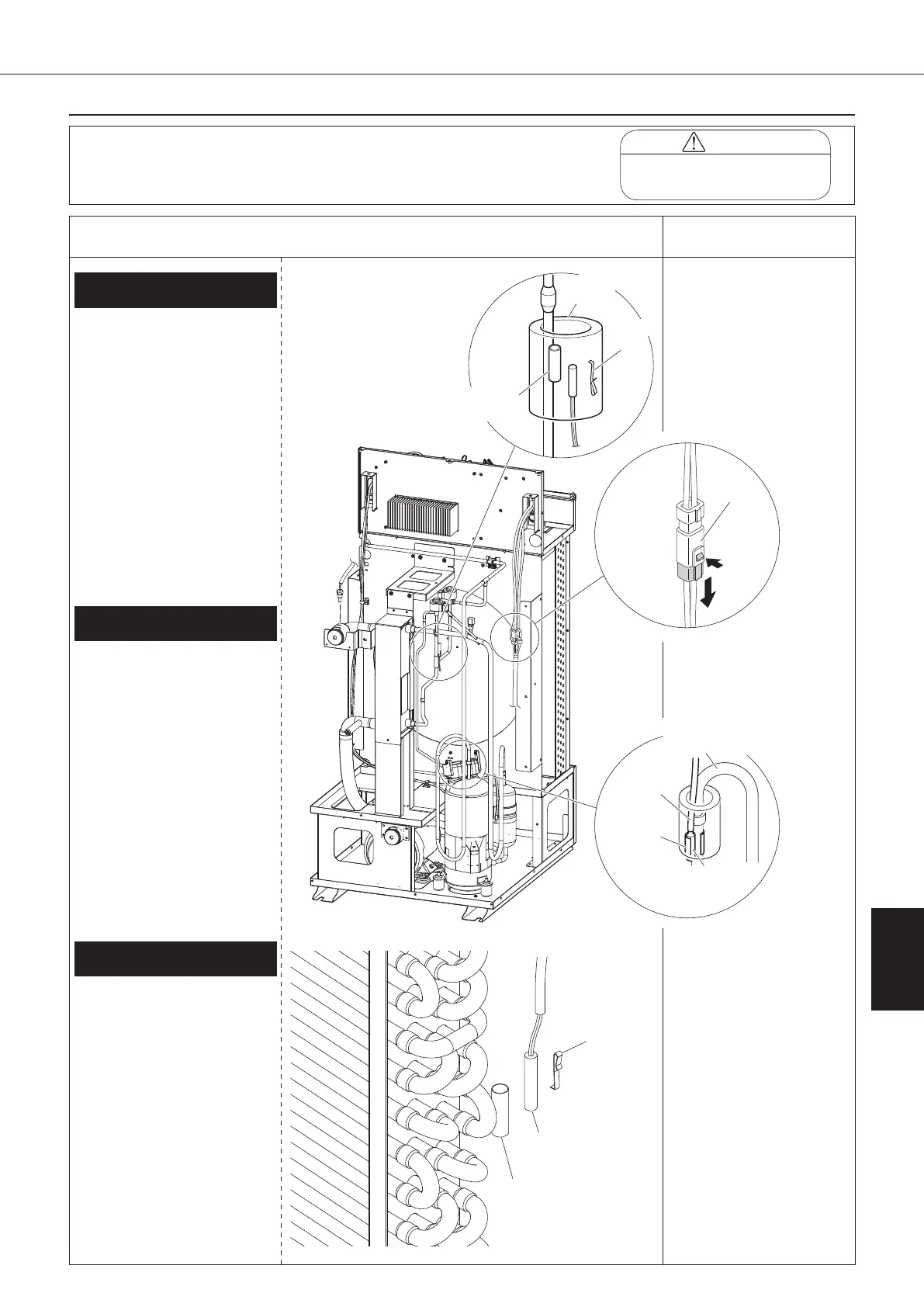

Procedure for Removing
Thermistors (2/2)
*1
*1
Disconnect the relay
connector in the oil cooling
unit before replacing the
thermistors.
Discharge
thermistor
(Th-6)
Harness
Thermistor
fixing
bracket
Dew proofing
material
Support
spring
EEV outlet
thermistor
(Th-8)
Relay
connector
Compressor
discharge pipe
Condenser thermistor
(Th-7)
Thermistor holder
Support
spring
