●Control Panel
71
5
Control Panel
Control
Panel

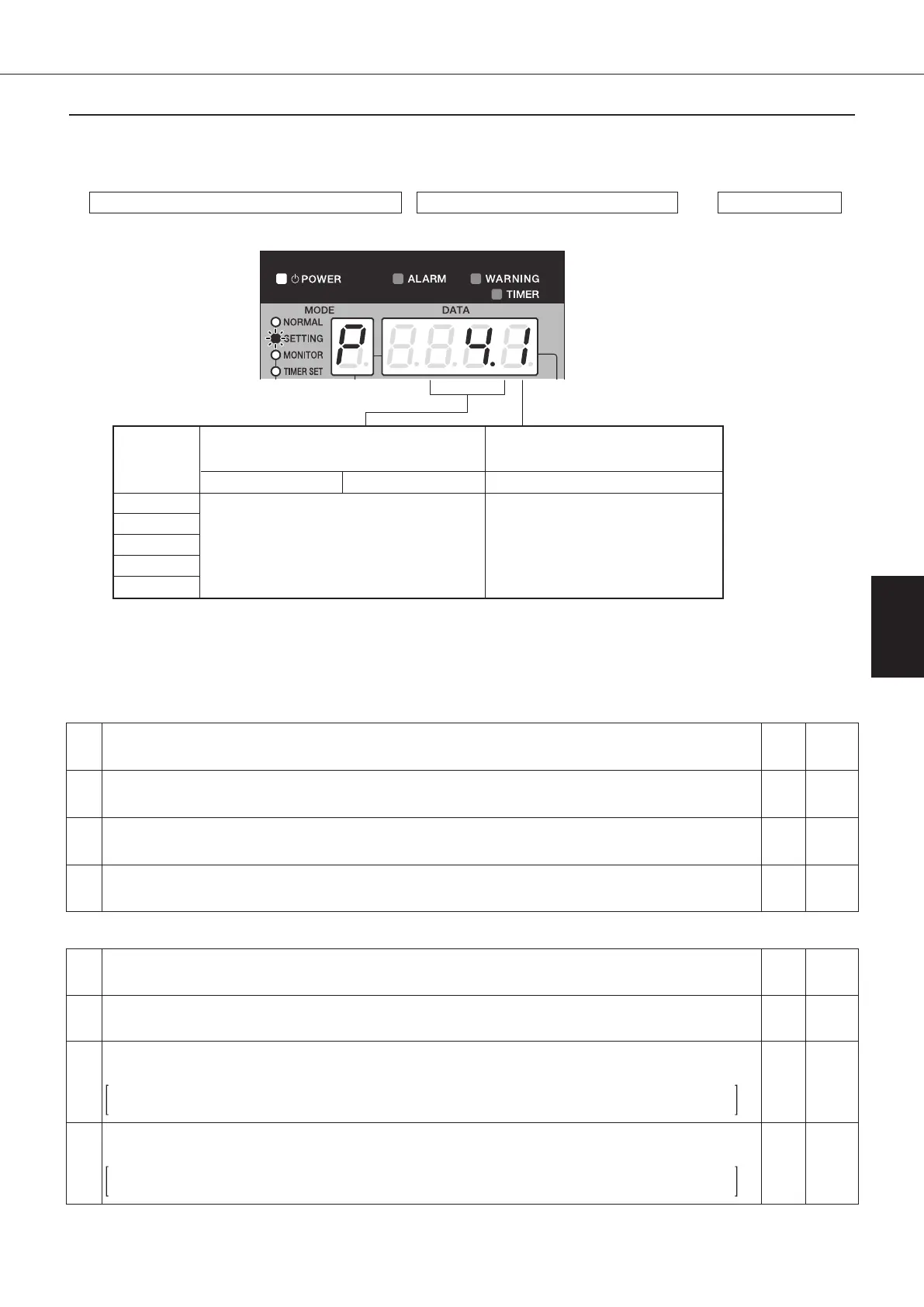

■Parameter (d) (e) settings
(3) Set the following “differential value (e)” to specify the reset temperature in order to release the temperature range
warning.
Return temperature or return temperature difference
=
Temperature range warning temperature (d)
– (*5)
Differential value (e)
*5: However, when the comparison target (b) is “≤ fixed value”, it becomes “+”.
Temperature range warning temperature (d)
or the temperature difference
Differential value (e)
Parameter
number
Set temperature difference for automatic reset * 6
Tens place Ones place First decimal place
0 to 60 (°C) 1 to 9 (°C)
n011
n013
n015
n017
n018
Note) 0.1 (°C) when it is 0
*6: When the operation at time of temperature range warning (c) is set to 4 or 5, it is invalid because it does
not automatically reset.
■Temperature range warning setting example
Example of parameter settings (for temperature range warning: See page 69.)
(1)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is 15℃ or lower, the compressor
stops. (Warning)
n010
262
(462)
(2)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is 35℃ or higher, the compressor
stops (F1 to F5 alarm), and terminal [66]-[67] output turns ON or OFF.
n012
255
(455)
(3)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is at least 5℃ lower than the room temperature
[Th-3] (or machine temperature [Th-1]), terminal [66]-[67] output turns ON or OFF.
n014
121
(141)
(4)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is at least 5℃ higher than the room temperature
[Th-3] (or machine temperature [Th-1]), terminal [66]-[67] output turns ON or OFF.
n016
211
(411)
Example of parameter settings (for temperature range warning: See page 69.)
(1)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is 15℃ or lower, the compressor stops. (Warning)
[When outlet oil temperature [Th-2] becomes 17℃, the warning status will be automatically reset.]
n011 15.2
*7
(2)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is 35℃ or higher, the compressor stops
(F1 to F5 alarm), and terminal [66]-[67] output turns ON or OFF.
n013 35.0
(3)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is at least 5℃ lower than the room temperature
[Th-3] (or machine temperature [Th-1]), terminal [66]-[67] output turns ON or OFF.
When the difference between room temperature [Th-3] and outlet oil temperature [Th-2] becomes 4℃ or less, the
warning status will be automatically reset.
n015 5.1
*8
(4)
When the outlet oil temperature [Th-2] (or inlet oil temperature [Th-4]) is at least 5℃ higher than the room temperature
[Th-3] (or machine temperature [Th-1]), terminal [66]-[67] output turns ON or OFF.
When the difference between room temperature [Th-3] and outlet oil temperature [Th-2] becomes 3℃ or less, the
warning status will be automatically reset.
n017 5.2
*9
*7: 17 (Temperature range warning reset temperature) – 15 (Temperature range warning temperature) = 2
*8: 5 (Temperature range warning temperature) – 4 (Temperature range warning reset temperature) = 1
*9: 5 (Temperature range warning temperature) – 3 (Temperature range warning reset temperature) = 2
