SettIng the mode dISplay

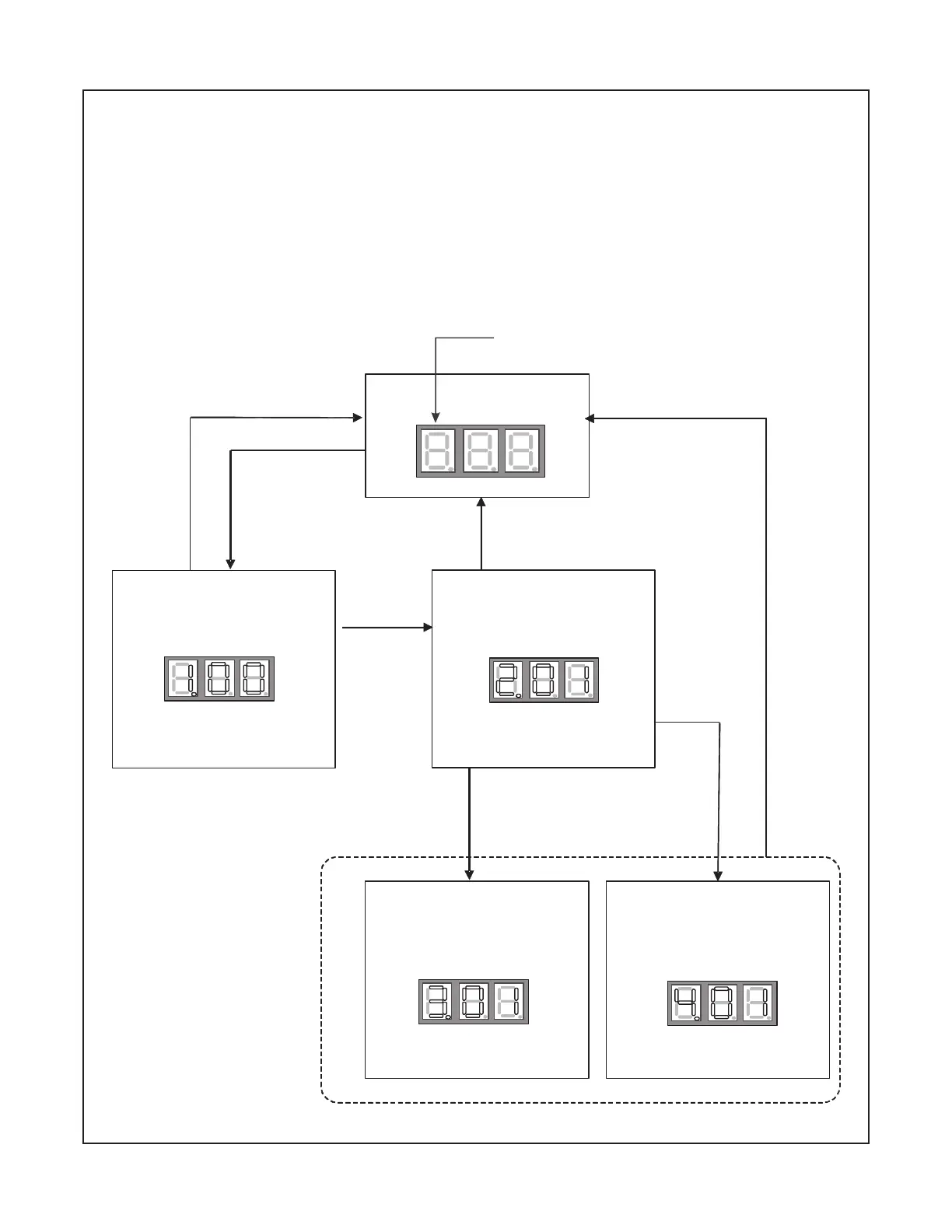

NAVIGATING THROUGH THE DISPLAY SCREENS
SCREEN 0 The home or default screen on the display. This shows the most recent fault.
SCREEN 1 To access, hold the “RECALL” button from screen 0 - 5 seconds.
SCREEN 2 To access, hold the “RECALL” button from screen 1 - 5 seconds.
SCREEN 3 To access, hold the “RECALL” button from screen 2 - 5 seconds.
SCREEN 4 To access, hold the “RECALL” and “TEST” buttons simultaneously - 5 seconds.
To return to SCREEN 0 of the display, press the LEARN button.
< SCREEN 0 >
< SCREEN 1 >
< SCREEN 2 >
< SCREEN 4 >< SCREEN 3 >
Press RECALL Button
to change fault code history.
Hold RECALL
and TEST.
The first digit displays the SCREEN #.
Hold RECALL.
Press LEARN.
Press LEARN.
Press LEARN.
Hold
RECALL.
Hold
RECALL.
