Daikin DZ17VSA481AA - Installation Clearances

4
InStallatIon clearanceS
• Where a wall or other obstacle is in the path of the out-
door unit’s intake or exhaust airow, follow the installation
space requirements below.
• For any of the below installation patterns, the wall height
on the outlet side should be 47” or less.
• When installing under a non-moveable object, ensure 20”
or greater clearance (to allow access to internal compo-
nents).

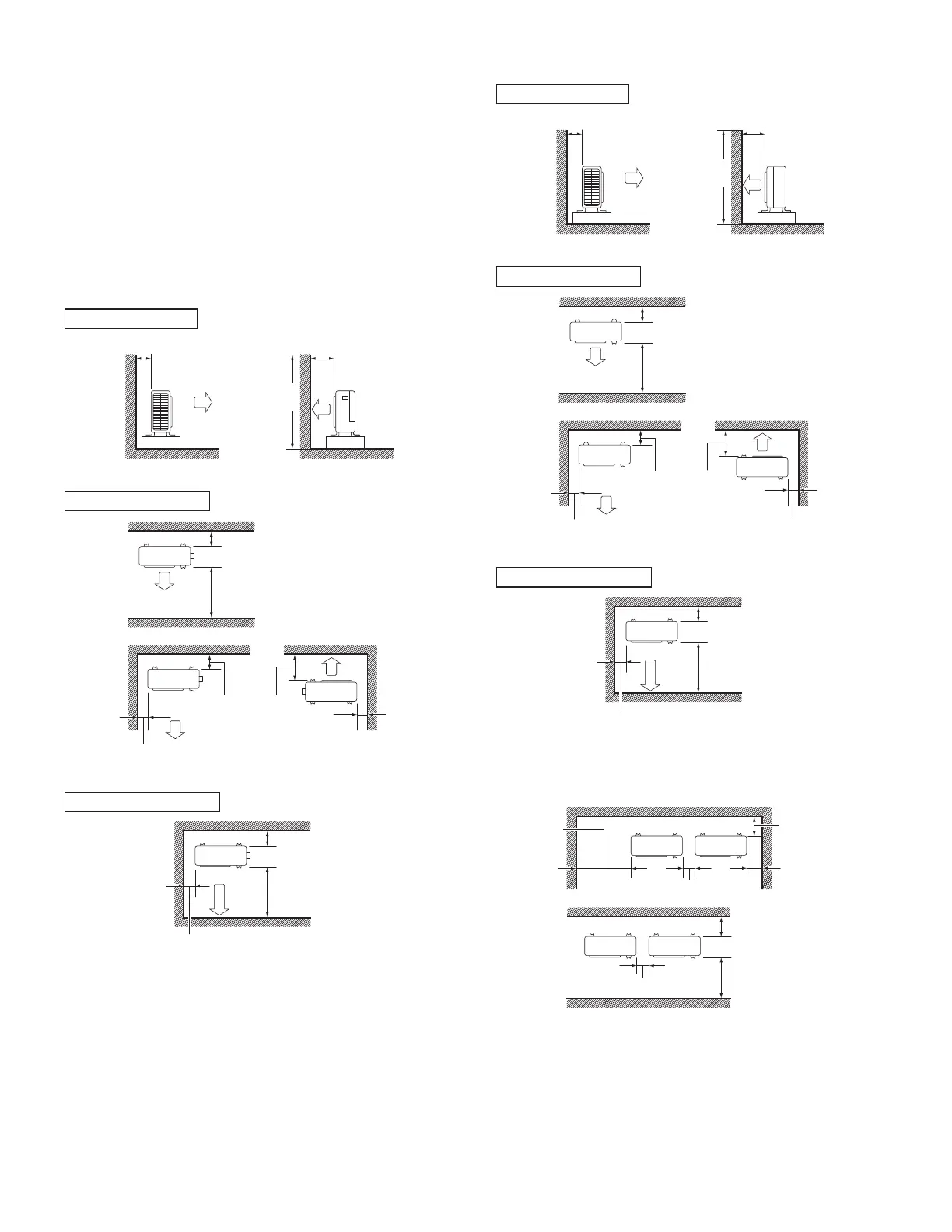

In case of 1 unit installation
<1.5 - 3.0 ton>
Wall facing one side
More than 4” More than 14”
Direction
of air
47” or
less
Side view
Walls facing two sides
More than 2” More than 2”
More
than 14”
More
than 4”
More
than 4”
More
than 14”
Top view
Walls facing three sides
More than 2”
More than 4”
More than 14”
Top view
unit: inch
<3.5 - 5.0 ton>
Wall facing one side
More than 4” More than 20”
Direction
of air
47” or
less
Side view
Walls facing two sides
More than 4” More than 4”
More
than 20”
More
than 4”
More
than 4”
More
than 20”
Top view
Walls facing three sides
More than 4”
More than 4”
More than 20”
Top view
unit: inch
In case of 2 units installation
More
than 40”
More than 8”
More than 12”
More than 12”
More than 40”
More than 4”
More than 4”
Top view
unit: inch
If the distance between two units is greater than 40”, follow
single unit installation clearance.
