Indoor Unit SiBE06-708_A
141 Removal Procedure

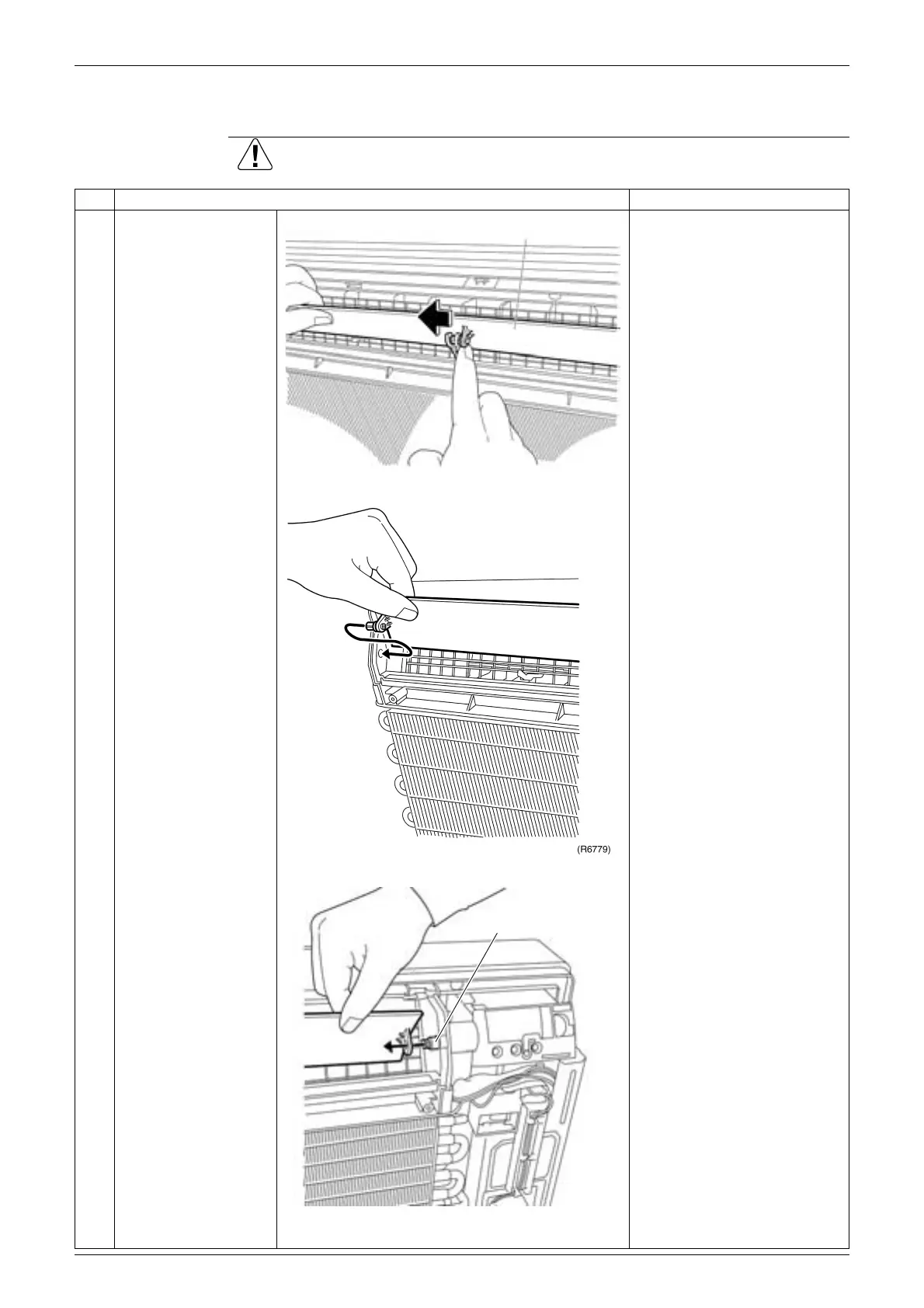

1.2 Removal of Horizontal Blade
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
2
Open the horizontal
blade.
Release the center
shaft.
3 Bend the horizontal
blade to release the
right and the left shafts
and remove the
horizontal blade.
Release the left shaft first
and then release the right
shaft from the key alignment.
Horizontal blade
(R6778)
Key alignment
(R6780)
