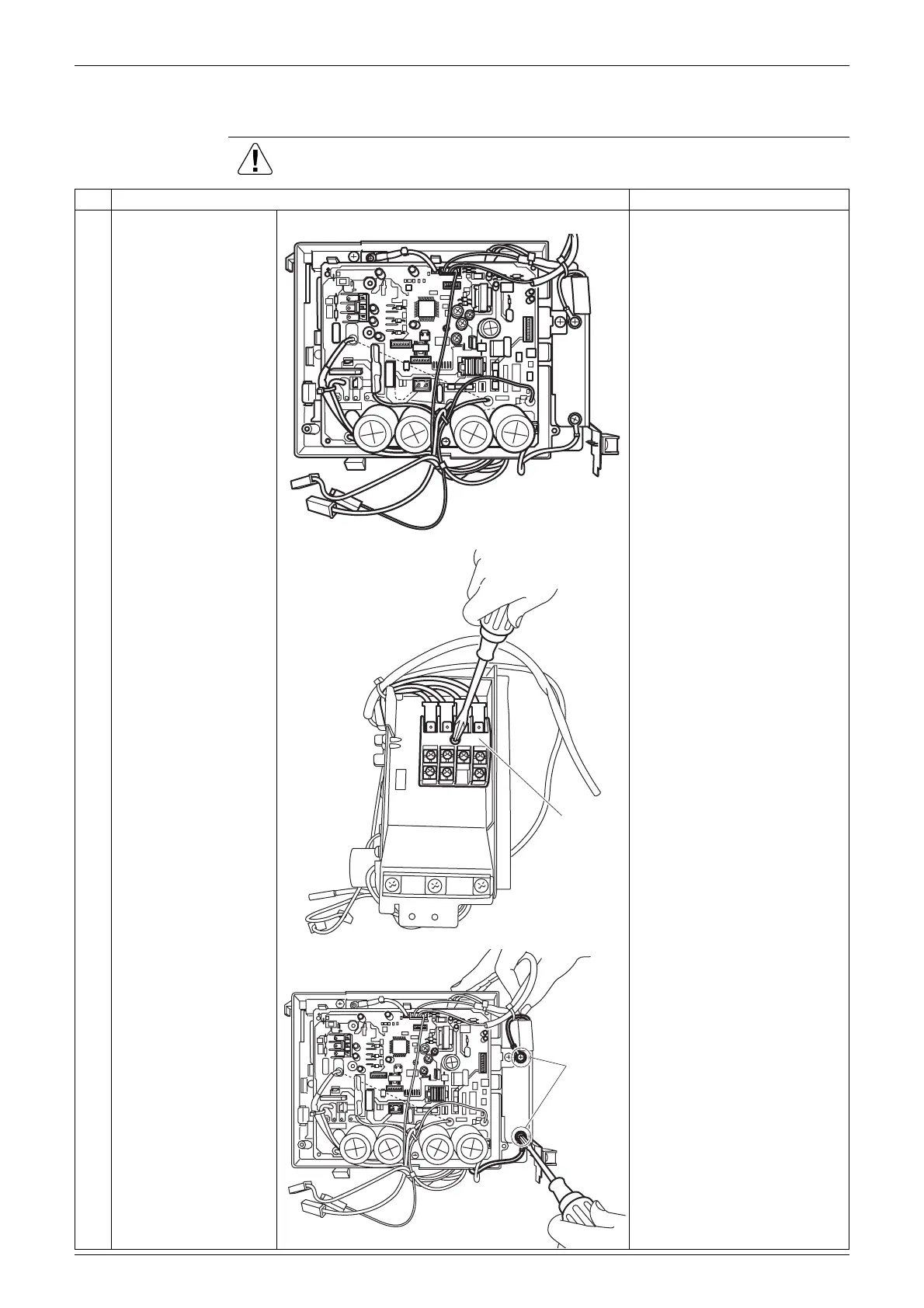

Outdoor Unit - RK(X)S25/35F2V1B SiBE06-708_A
167 Removal Procedure
2.3 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Feature of the main
PCB
You can remove the main
PCB when you disconnect
the lead wires on the
terminal board without
removing the electrical box.
2
Remove the screw on
the terminal board.
3
Release the 2 earth
terminals.
(R7255)
(R7256)
Terminal
board
(R7257)
Earth
terminal
