SiBE06-708_A Indoor Unit
Removal Procedure 152

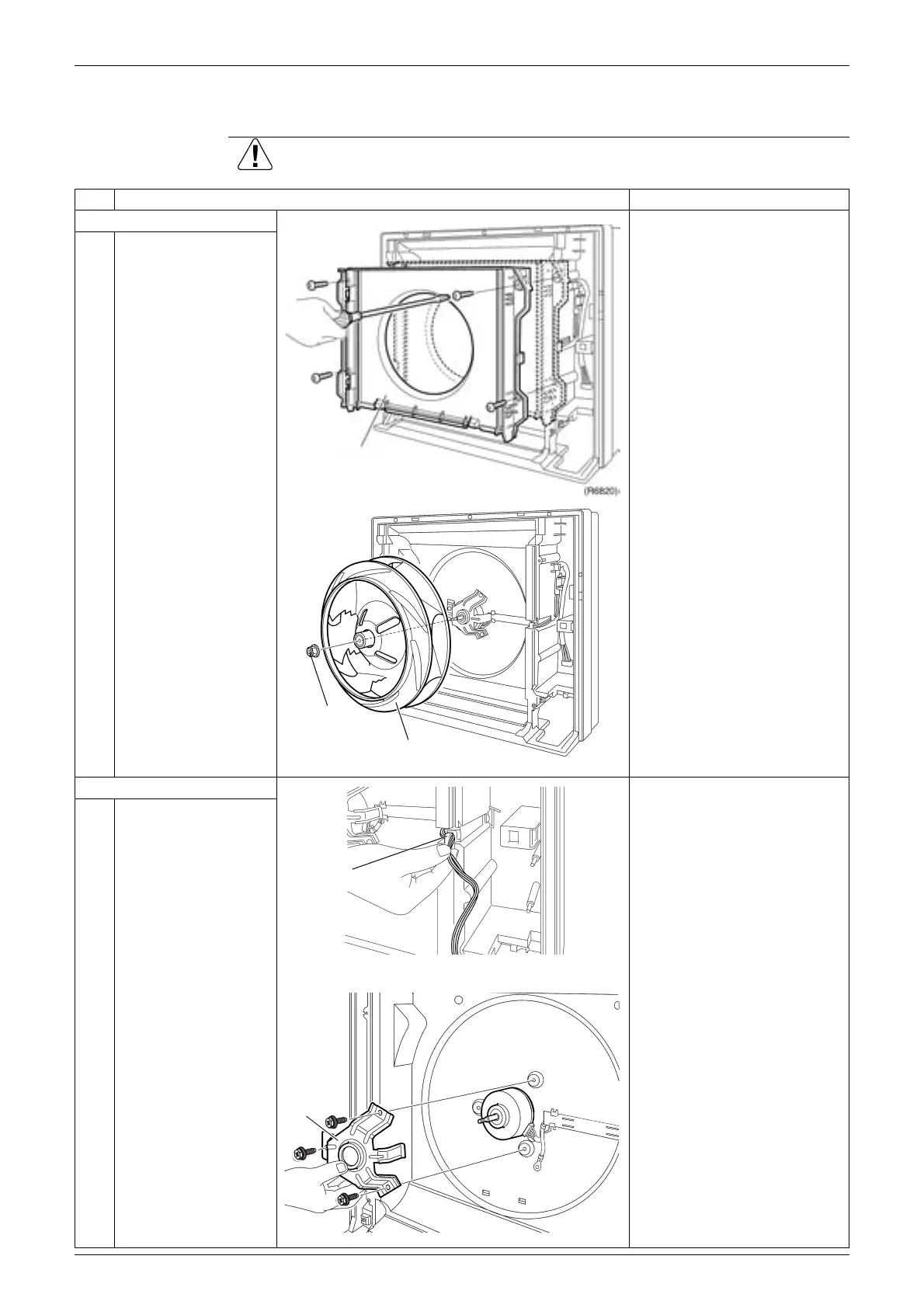

1.7 Removal of Fan Rotor / Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the fan rotor.
1
Remove the 4 screws
and remove the
bellmouth.
2 Remove the nut (M6) to
remove the fan rotor.

Wrench size: 10mm
2. Remove the fan motor.
1 Release the harness of
the fan motor from the
hook.
2 Remove the 3 screws
and remove the fan
motor cover.
Bellmouth
Nut
Fan rotor
(R6821)
Hook
(R6822)
(R11503)
Fan motor
cover
