Daikin Floor Standing Type F-Series User Manual

SiBE06-708_A Indoor Unit
Removal Procedure 142
1.3 Removal of Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
2

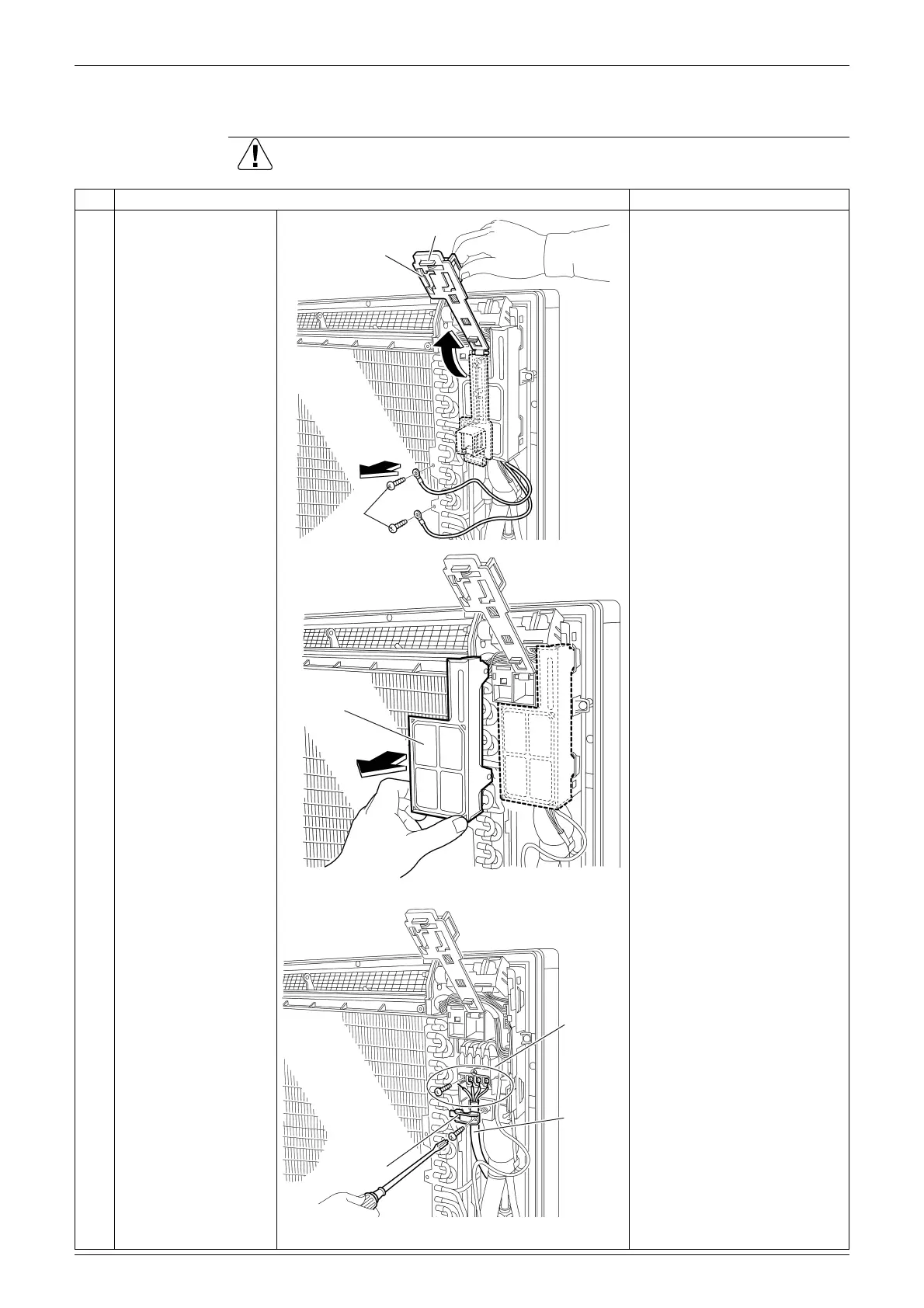

Remove the 2 earth
screws.
Unfasten the hook and
open the sensor PCB
fixing plate.
3 Remove the front
shield plate.
4 To detach the
connection wires,
remove the 1 screw
from the wiring fixture
and remove the 4
screws from the
terminal board.
Sensor PCB fixing plate
Hook
(R6781)
Earth
screws
Front shield plate
(R6782)
Wiring fixture
(R6783)
Terminal
board
Connection
wires
