SiBE06-708_A Outdoor Unit - RK(X)S25/35F2V1B
Removal Procedure 154
2. Outdoor Unit - RK(X)S25/35F2V1B
2.1 Removal of Outer Panels / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step

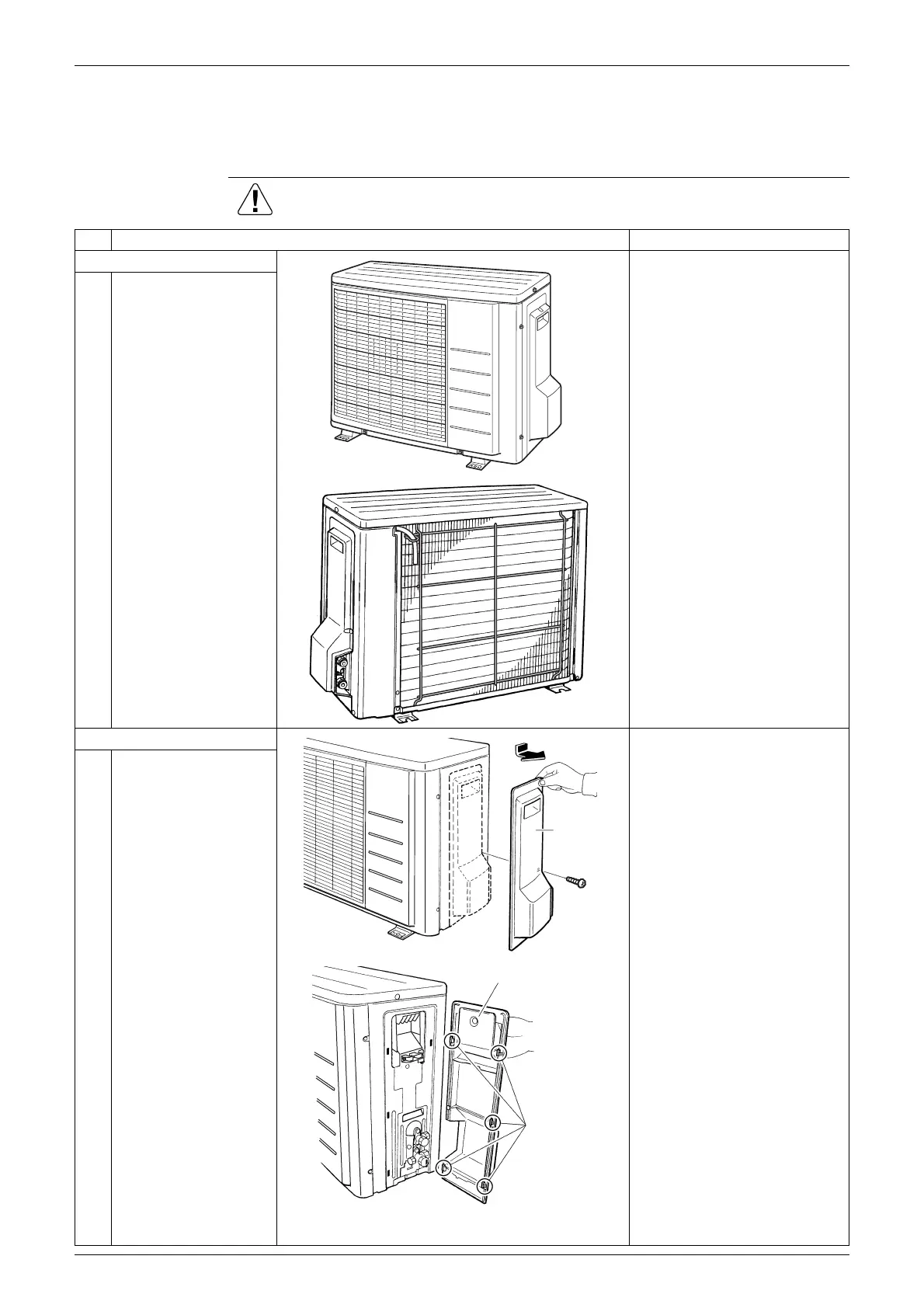

Procedure Points
1. Appearance features

Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
2. Remove the panels.

The stop valve cover is
united with the shield plate.

When reassembling, make
sure to fit the 5 hooks.
1
Remove the screw of
the stop valve cover.
Pull down the stop
valve cover and remove
it.
DAIKIN
INVERTER
(R7186)
(R11890)
Stop
valve
cover
(R7188)
Shield plate
Hooks
(R7189)
