Removal Procedure 148

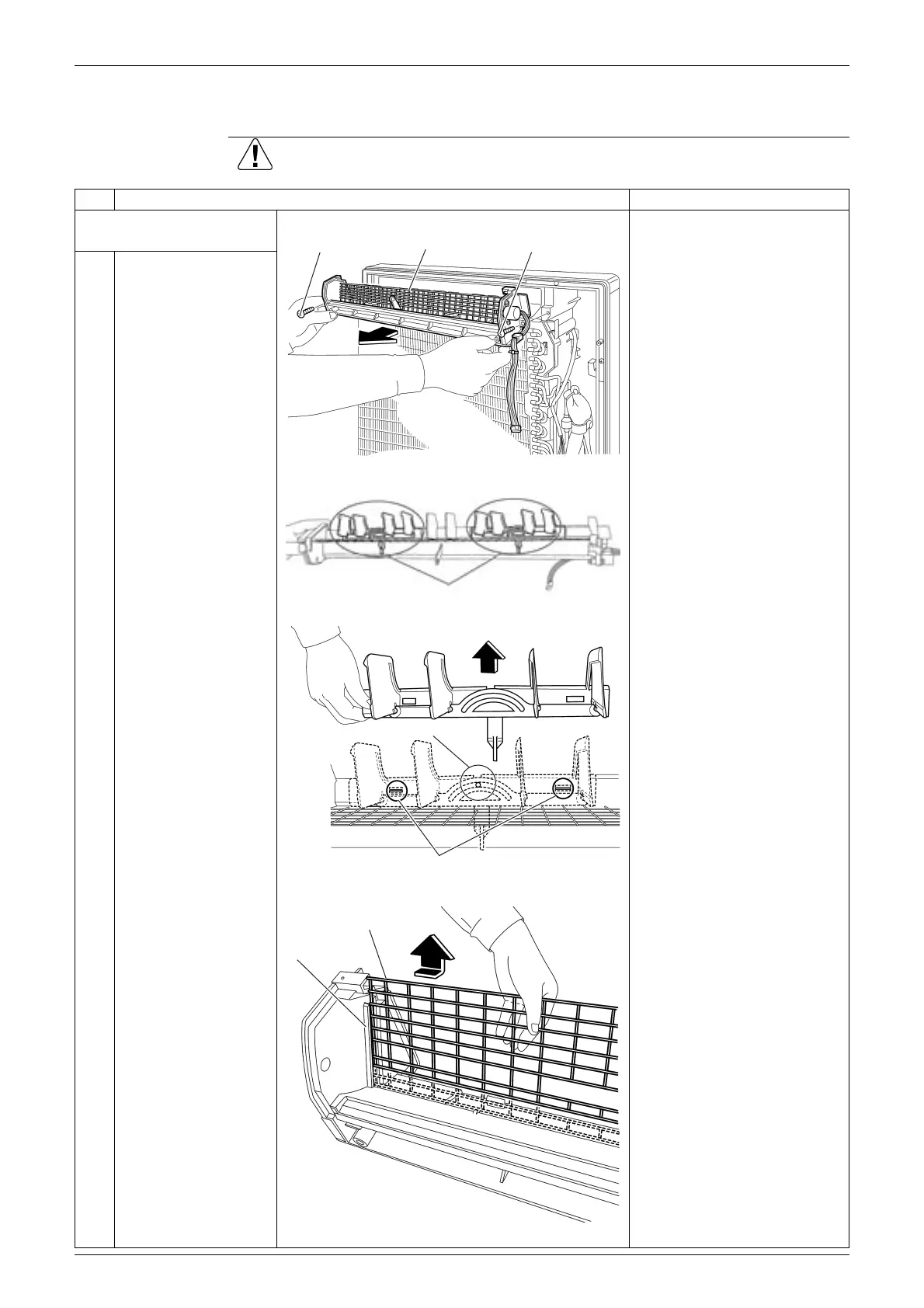

1.5 Removal of Vertical Blades
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the vertical blade
(upper).
1
Remove the 2 screws
and remove the air
outlet ASSY.
2 The air outlet ASSY
has the 2 vertical
blades ASSYs.
3 Unfasten the 2 hooks
and the center hook to
remove the vertical
blades ASSY.
4 Slide the protection net
along the right and the
left grooves and
remove it.
Screw Screw
Air outlet ASSY
(R6803)
Vertical blades ASSY
(R6804)
Center hook
Hooks
(R6805)
Groove
Protection net
(R6806)
