Daikin Floor Standing Type F-Series - Part 9 Appendix

SiBE06-708_A Outdoor Unit - RK(X)S50F2V1B, RK(X)S50G2V1B
Removal Procedure 252
5.8 Removal of Compressor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the terminal
cover.
2
Disconnect the lead
wires of the
compressor.

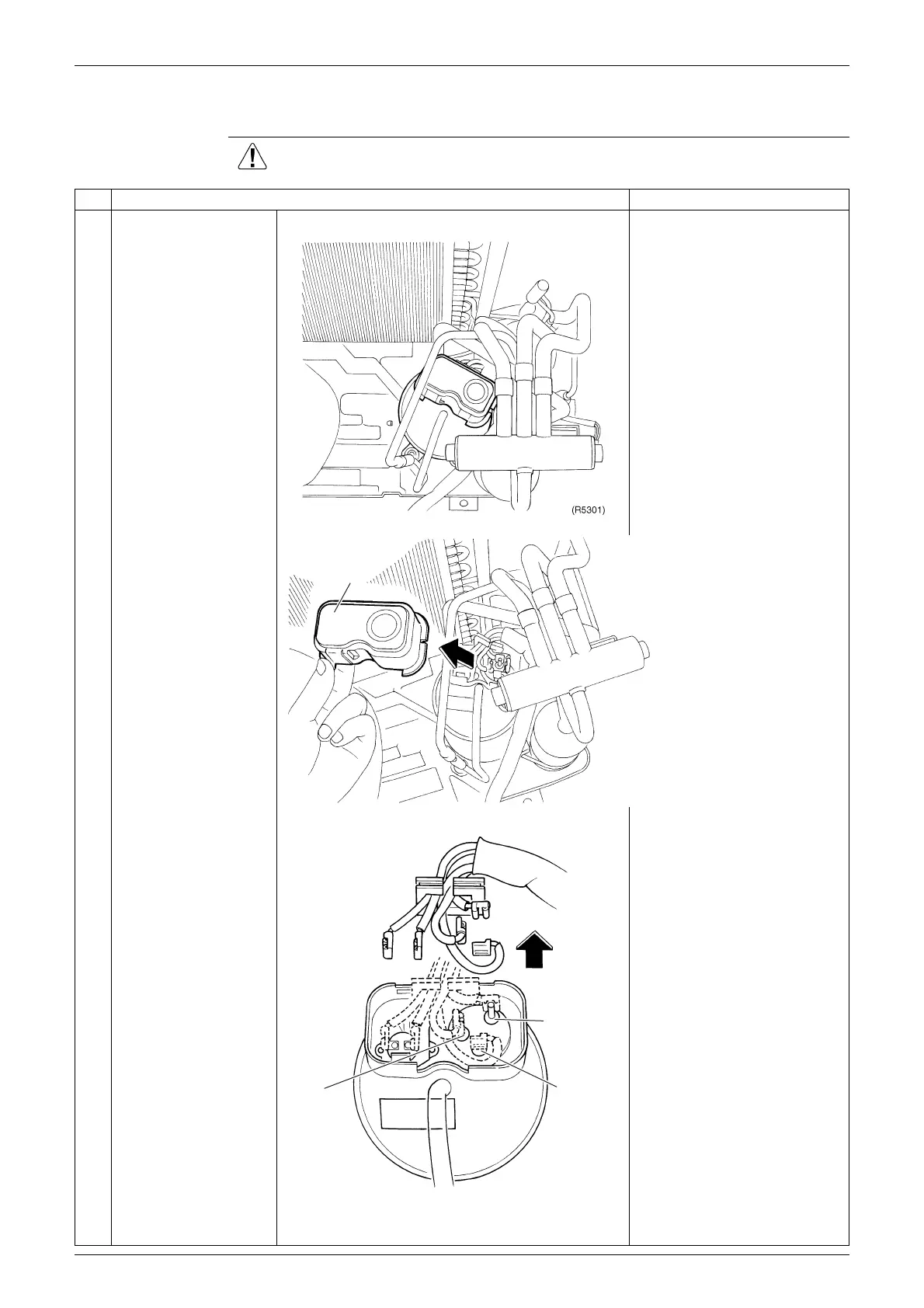

Terminal cover
(R5302)
(R12204)
Yellow (V)
Red (U)
Blue (W)
