Daikin Floor Standing Type F-Series User Manual

Outdoor Unit - RK(X)S25/35F2V1B SiBE06-708_A

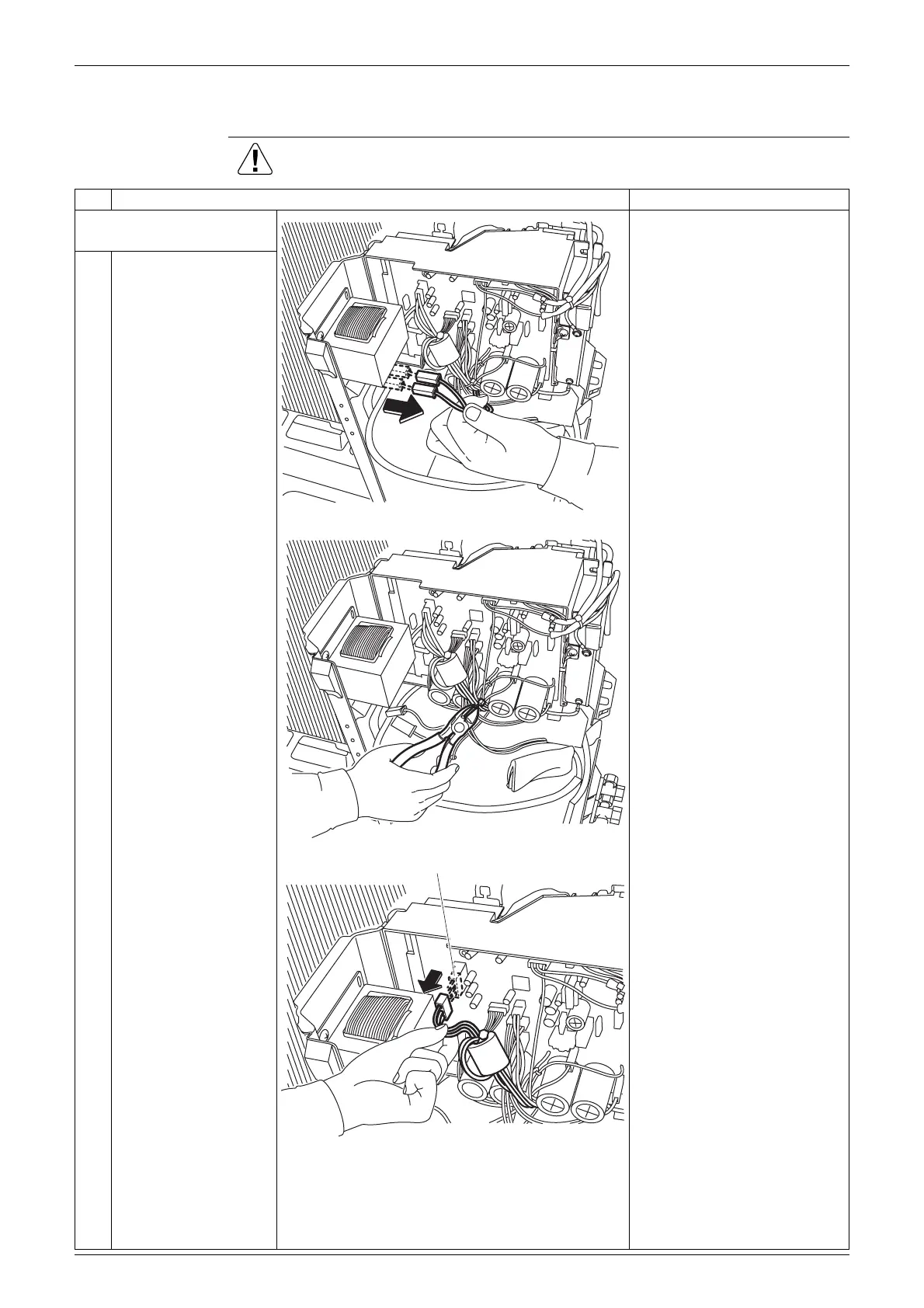

163 Removal Procedure
2.2 Removal of Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the electrical
box.
Preparation

Remove the panels and
disconnect the connector for
the fan motor according to
“Removal of Outer Panels /
Fan Motor”.
1
Disconnect the 2
connectors for the
reactor.
2
Cut the clamp.
3
Disconnect the
connector for the
compressor [S30].

When reassembling, coil the
excessive lead wire and
hang the loop on the hook.
(R7214)
(R7215)
(R7216)
[S30]
