Daikin Floor Standing Type F-Series - Removal of Reactor; Partition Plate

Outdoor Unit - RK(X)S25/35G2V1B9 SiBE06-708_A
223 Removal Procedure

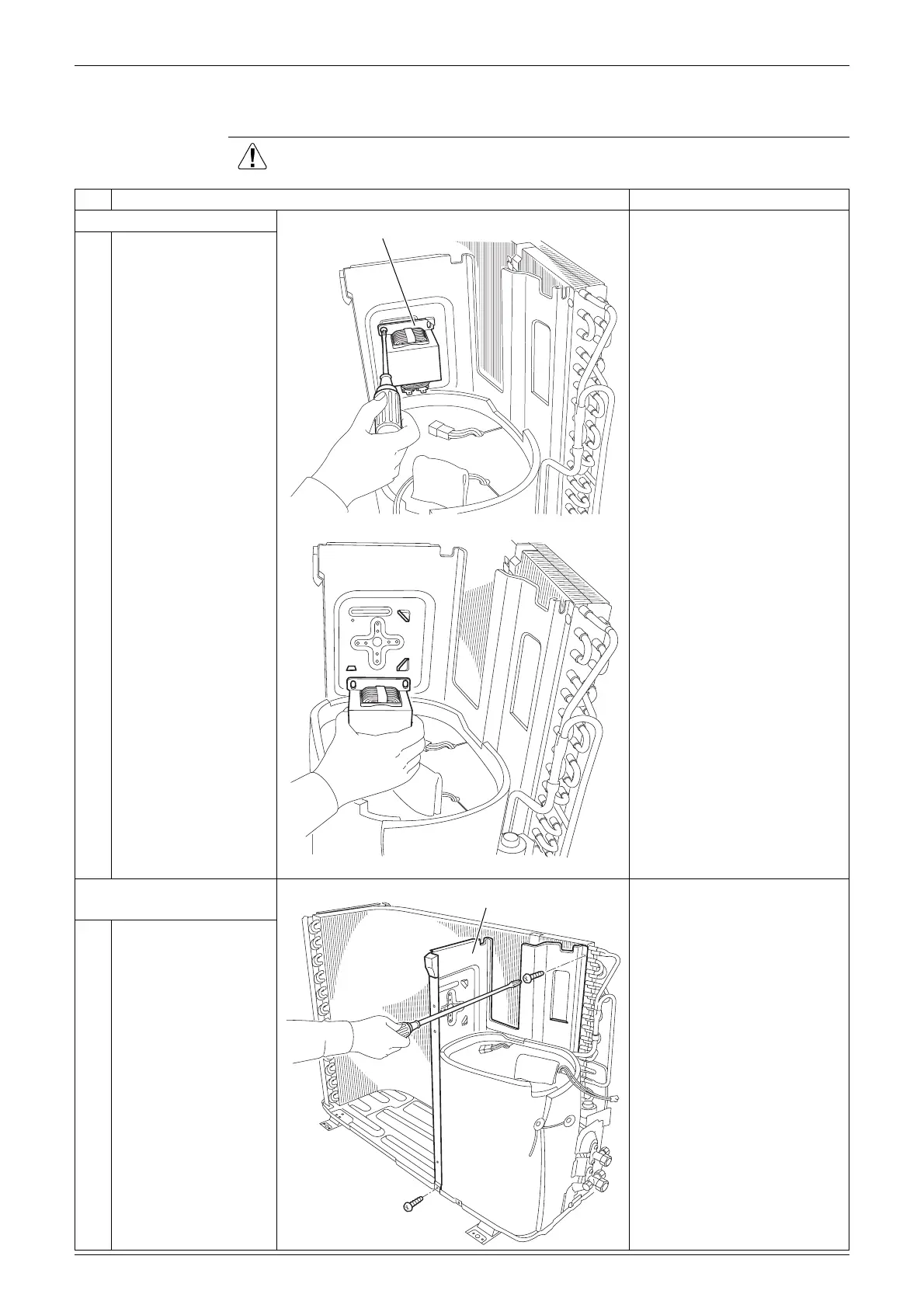

4.4 Removal of Reactor / Partition Plate
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the reactor. Preparation

Remove the outer panels
according to the “Removal of
Outer Panels / Fan Motor”.

Remove the electrical box
according to the “Removal of
Electrical Box”.
1
Remove the screw and
remove the reactor.
2. Remove the partition
plate.
1
Remove the 2 screws.
(R11879)
Reactor
(R11880)
(R12273)
Partition plate
