Daikin Floor Standing Type F-Series User Manual

Outdoor Unit - RK(X)S25/35G2V1B SiBE06-708_A
195 Removal Procedure

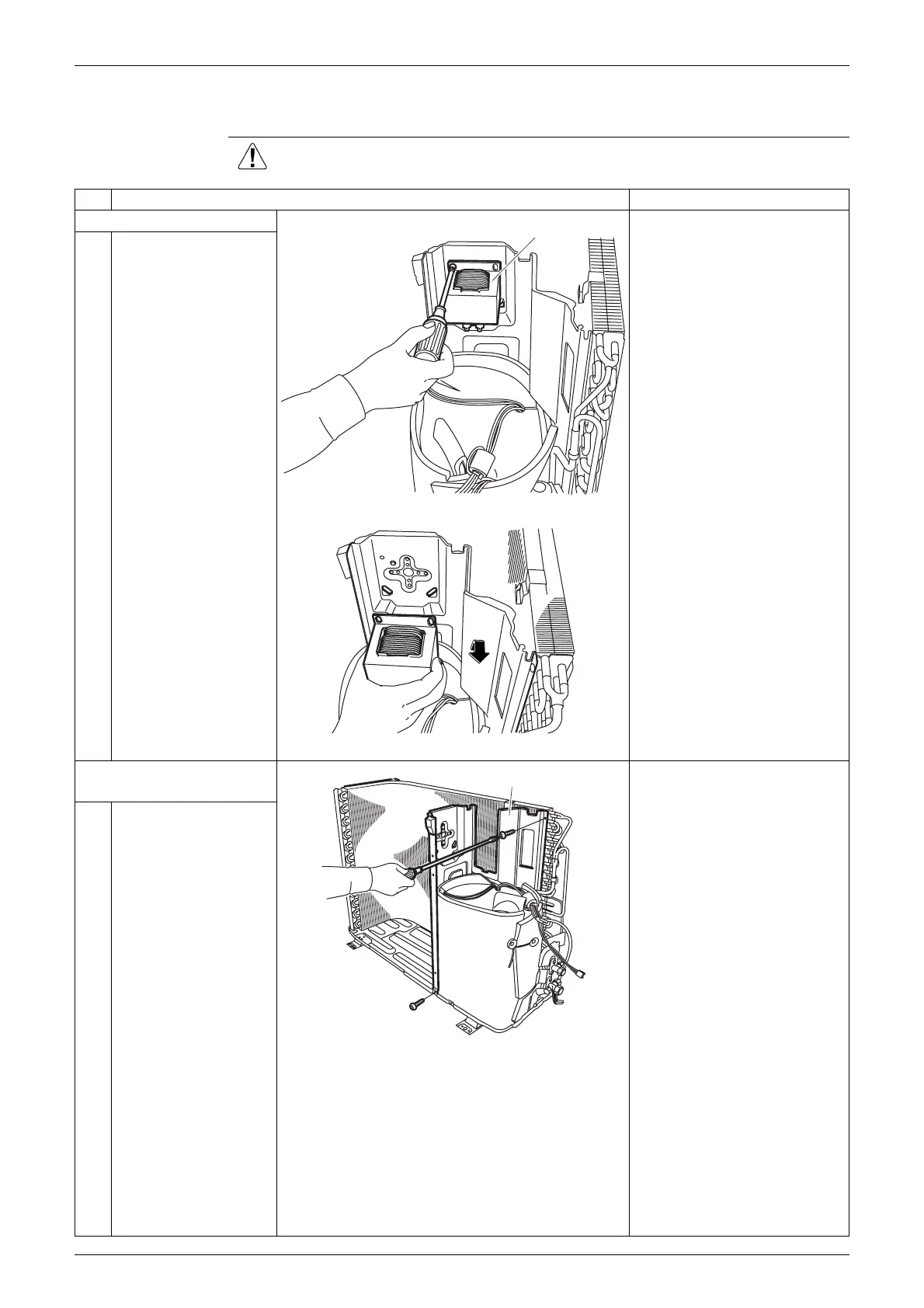

3.5 Removal of Reactor / Partition Plate
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the reactor. Preparation

Remove the outer panels
according to the “Removal of
Outer Panels / Fan Motor”.

Remove the electrical box
according to the "Removal of
Electrical Box".
1
Remove the screw and
remove the reactor.
2. Remove the partition
plate.
1
Remove the 2 screws.
(R7224)
Reactor
(R7225)
(R7226)
Partition plate
