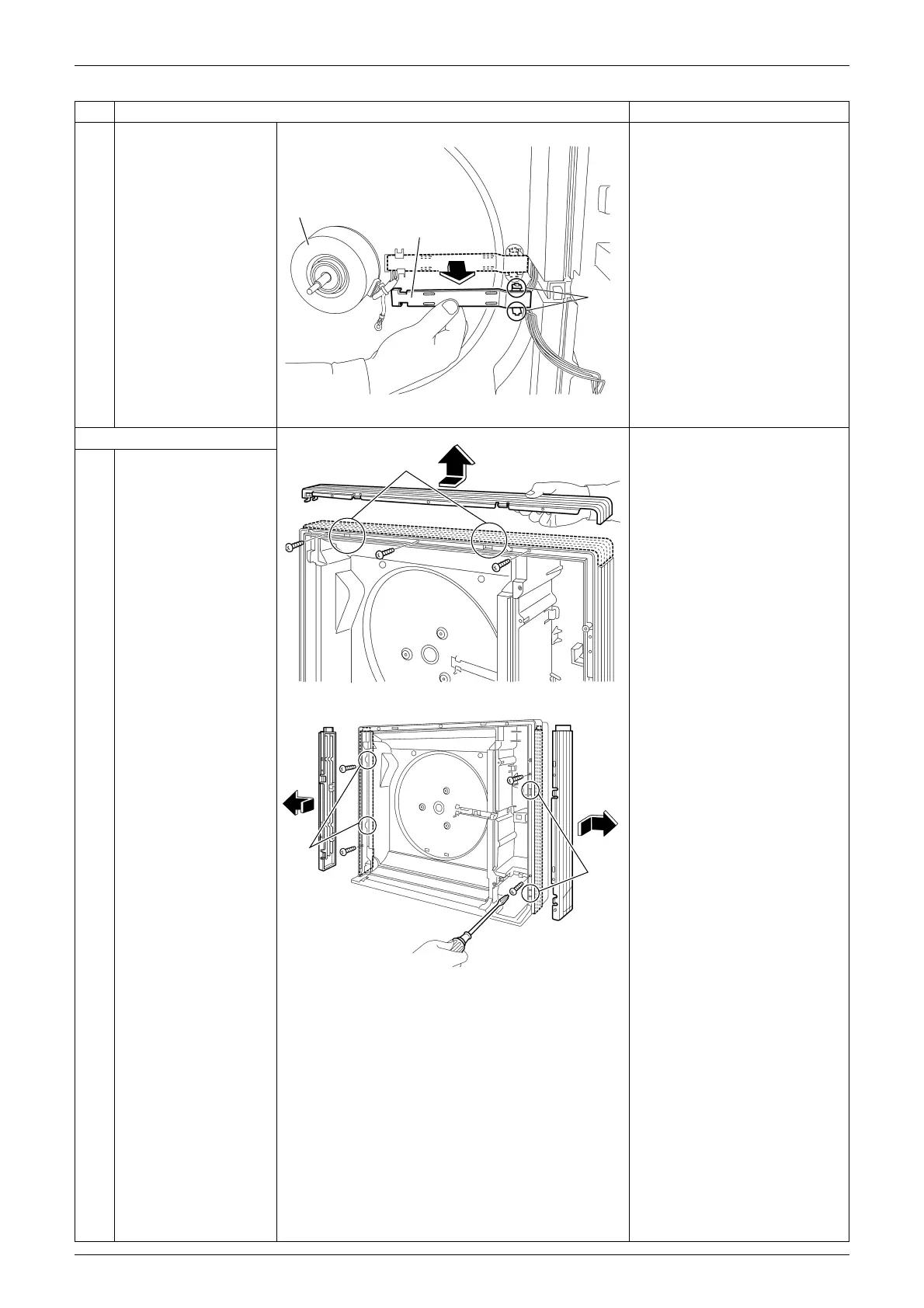

Indoor Unit SiBE06-708_A
153 Removal Procedure
3 Unfasten the 2 hooks
to remove the harness
retainer and remove
the fan motor.
3. Remove the casing.
Press the 2 hooks toward
the back side and remove
the casing.
1 Remove 3 screws and
unfasten the 2 hooks to
remove the upper
casing.
2 Remove 2 screws and
unfasten the 2 hooks to
remove the right casing
or the left casing.
Press the 2 hooks toward
the back side and remove
the casing.
Step Procedure Points
Hooks
Fan motor
(R11504)
Harness
retainer
Hooks
(R6825)
Hooks
Hooks
(R6826)
