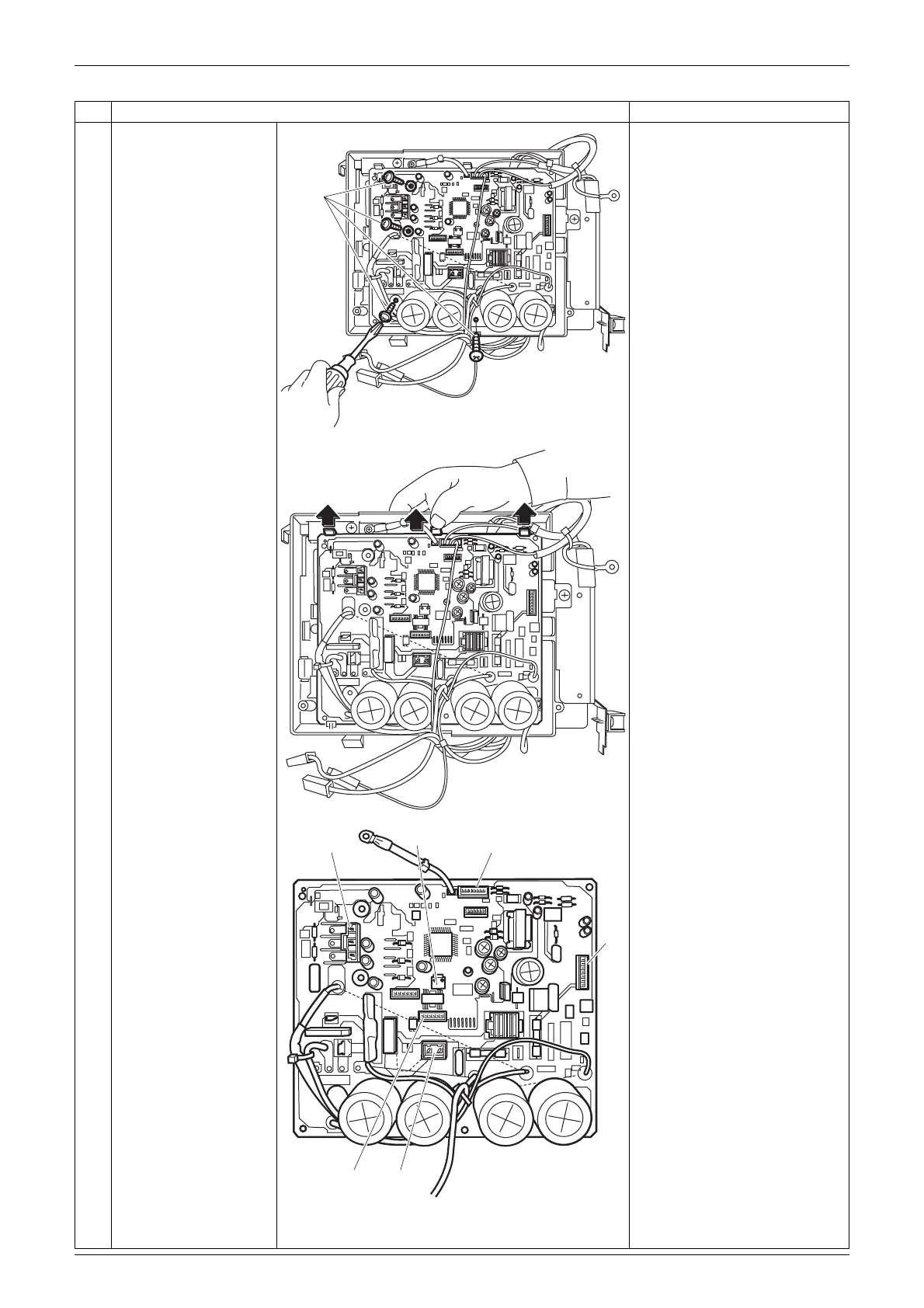

SiBE06-708_A Outdoor Unit - RK(X)S25/35F2V1B
Removal Procedure 168
4
Remove the 4 screws.
5
6
Unfasten the 3 hooks
on the upper side.
Lift and pull out the
main PCB.
Refer to page 23 for detail.
[S20]: electronic expansion
valve coil
[S30]: compressor
[S40]: overload protector
[S70]: fan motor
[S80]: four way valve coil
[S90]: thermistors
Step
Procedure Points
(R7258)
Screw
(R7259)
(R7260)
[S80][S20]
[S90][S30]
[S40]
[S70]
