Daikin Floor Standing Type F-Series - Page 220

Outdoor Unit - RK(X)S25/35G2V1B9 SiBE06-708_A
209 Removal Procedure
8

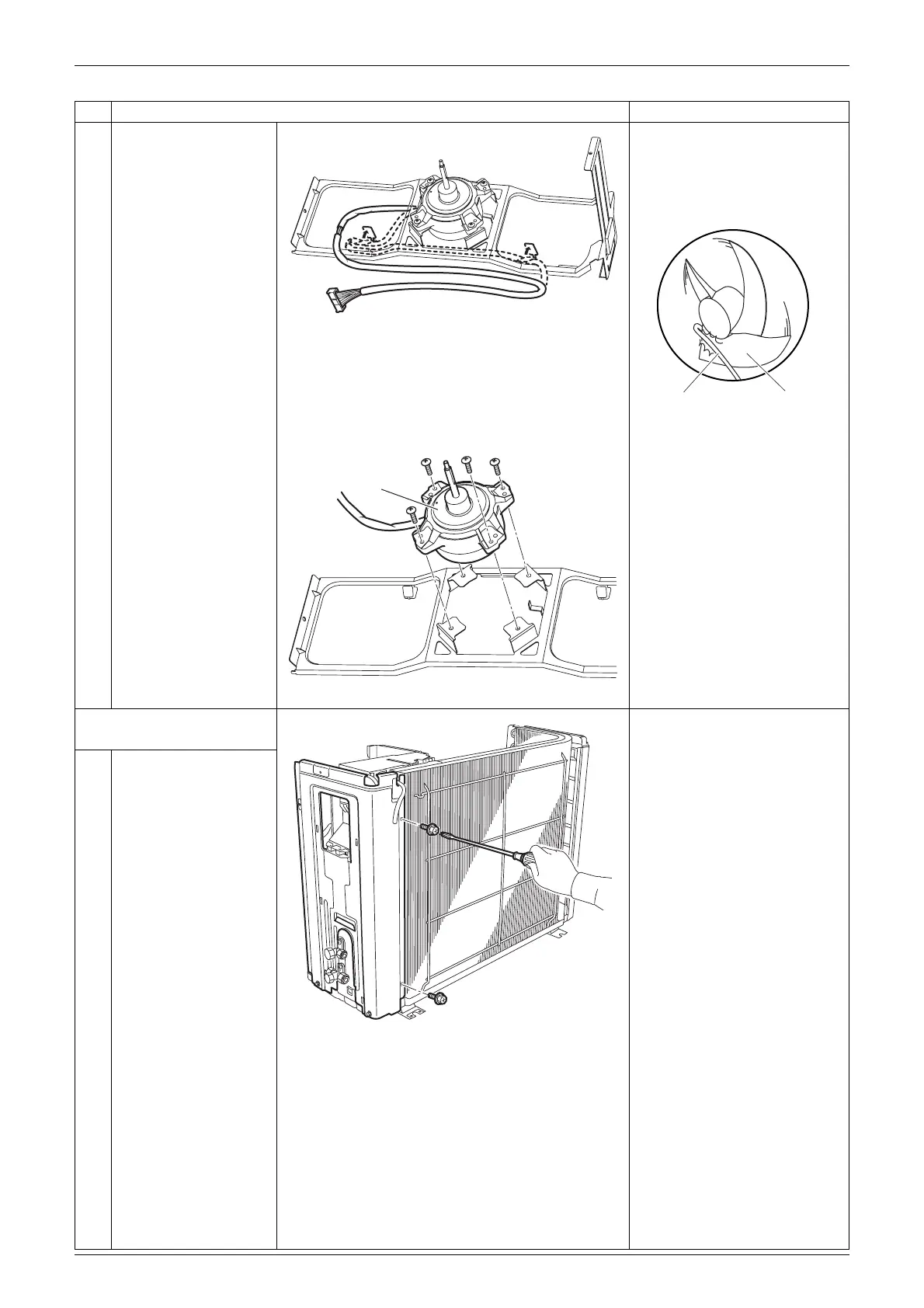

Open the hooks and
release the fan motor
lead wire.

When reassembling, put the
fan motor lead wire through
the back of the fan motor
(so as not to be entangled
with the outdoor fan).
9
Remove the 4 screws
and remove the fan
motor.
4. Remove the right side
panel.
1
Remove the 2 screws
on the rear side.
Step
Procedure Points
(R11835)
(R3249)
Lead wire Outdoor fan
(R12311)
Fan motor
(R12162)
