Outdoor Unit - RK(X)S50F2V1B, RK(X)S50G2V1B SiBE06-708_A
233 Removal Procedure

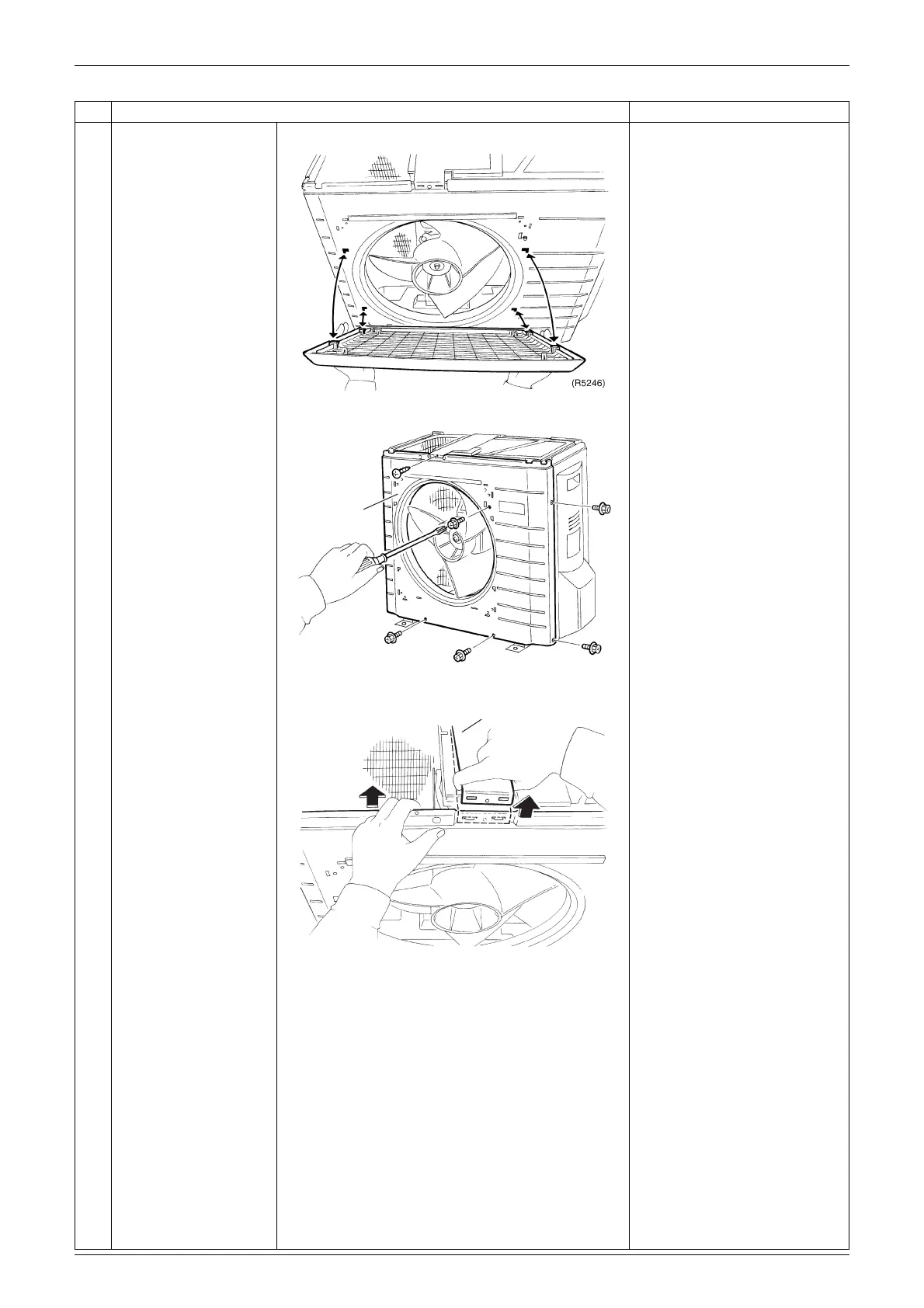

The discharge grille has 4
hooks.
3
Remove the 6 screws
of the front panel.
4
Push the front panel
and lift the shield plate
to unfasten the hooks.
Step
Procedure Points
Front panel
(R12284)
Shield plate
(R5248)
1 Push the
front panel.
2 Lift the shield
plate upwards.
