Daikin Floor Standing Type F-Series - Page 246

Outdoor Unit - RK(X)S50F2V1B, RK(X)S50G2V1B SiBE06-708_A
235 Removal Procedure

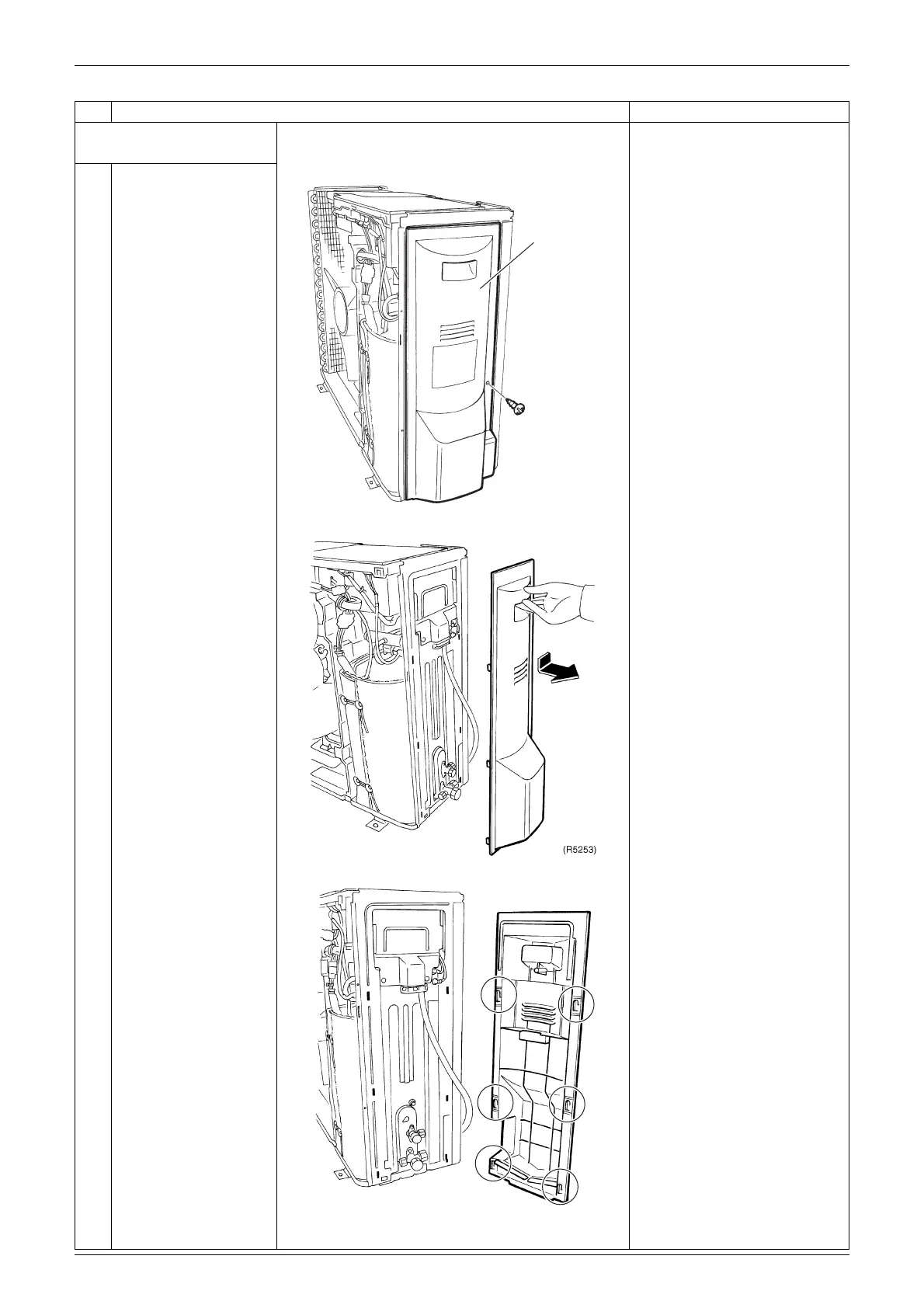

2. Remove the stop valve
cover.
1
Remove the screw of
the stop valve cover.
2
Pull down the stop
valve cover to unfasten
the hooks and remove
it.

The stop valve cover has 6
hooks.
Step
Procedure Points
Stop valve cover
(R5252)
(R5254)
