SiBE06-708_A Outdoor Unit - RK(X)S50F2V1B, RK(X)S50G2V1B

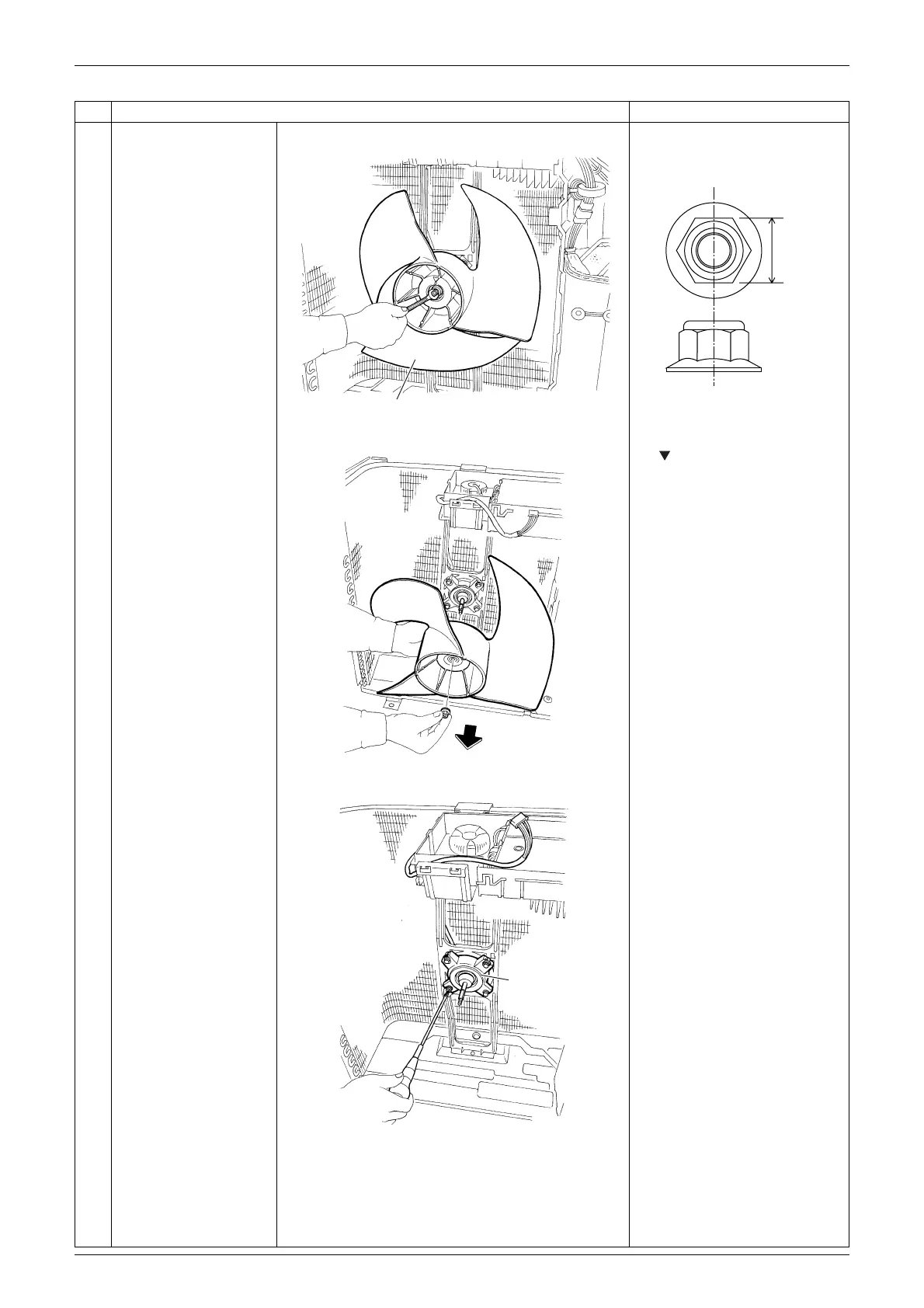

Removal Procedure 238
3
Remove the washer-
fitted nut of the outdoor
fan.

The screw has reverse
winding.

Nut size: M6

When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
4
Remove the lower 2
screws from the fan
motor first.

Be sure to remove the lower
screws first. If the upper
screws are removed first, the
fan motor, the center of
gravity of which is toward the
front, may tilt down or fall,
getting you injured.
5
Then, remove the upper
2 screws.
Step
Procedure Points
(R5262)
Outdoor fan
10 mm
(R12236)
(R5263)
(R5264)
Fan motor
