SiBE06-708_A Outdoor Unit - RK(X)S50F2V1B, RK(X)S50G2V1B

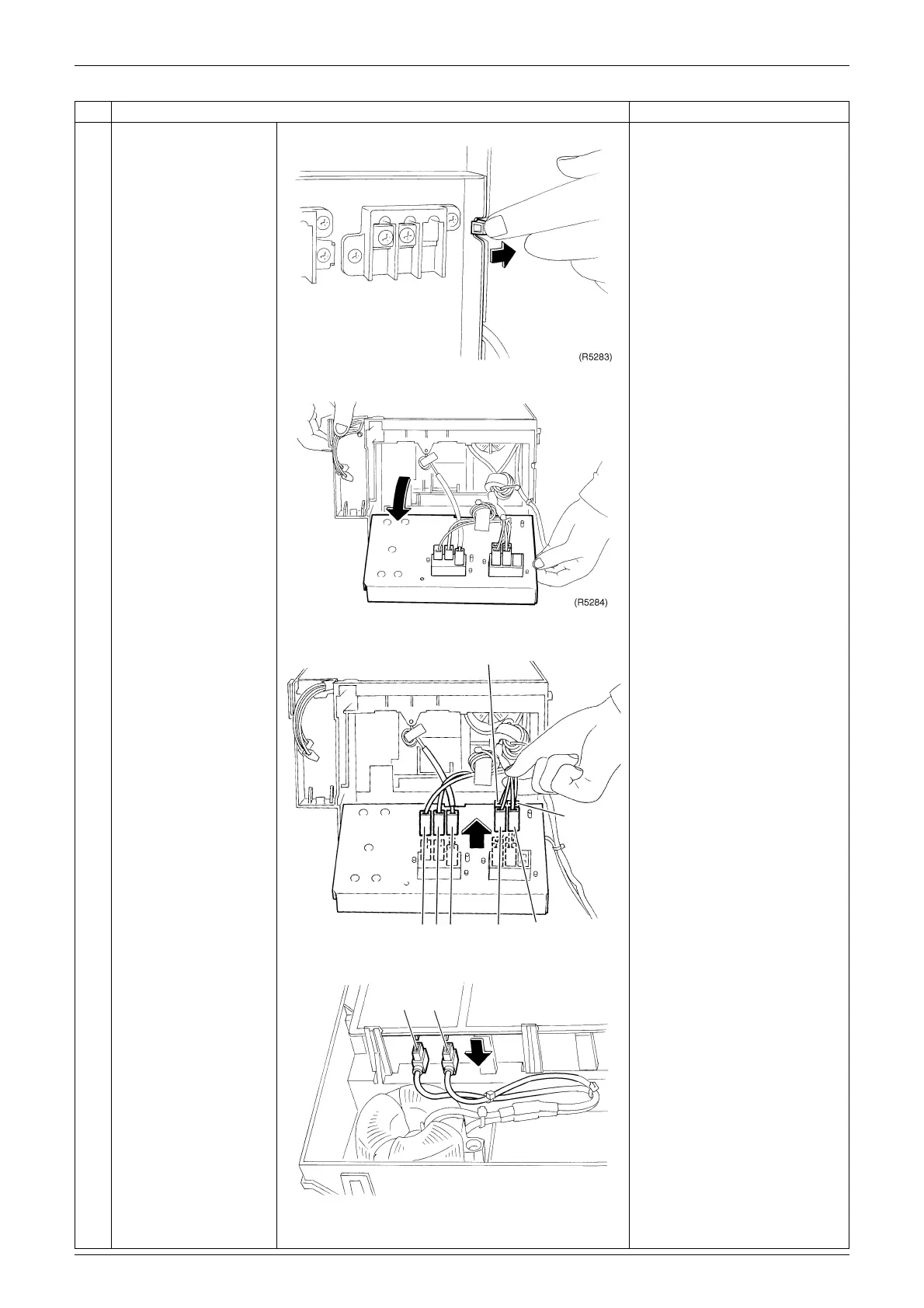

Removal Procedure 246
4
Unfasten the hook on
the right.
5
Open the terminal
board.
6
Disconnect the
harnesses.
1: Black
2: White
3: Red
L1: Black
L2: Brown
N1: White
N2: Blue
7
Disconnect the 2
connectors for the
reactor [HR1] [HR2].
Step
Procedure Points
(R5285)
N2
N1
L1
321
L2
(R11473)
[HR2]
[HR1]
