Group 31: Automatic Reset
This group denes conditions for automatic resets. An automatic reset occurs after a particular fault is detected. The drive holds for a set delay time, then automatically
restarts. You can limit the number of resets in a specied time period and set up automatic resets for a variety of faults.
Table 17: Group 31: Automatic Reset
Code Description Range Resolution Default S
3101 NUMBER OF TRIALS 0…5 1 5
Sets the number of allowed automatic resets within a trial period dened by 3102 TRIAL TIME.
• If the number of automatic resets exceeds this limit (within the trial time), the drive prevents additional automatic resets and remains stopped.
• Starting then requires a successful reset performed from the control panel or from a source selected by 1604 FAULT RESET SEL.

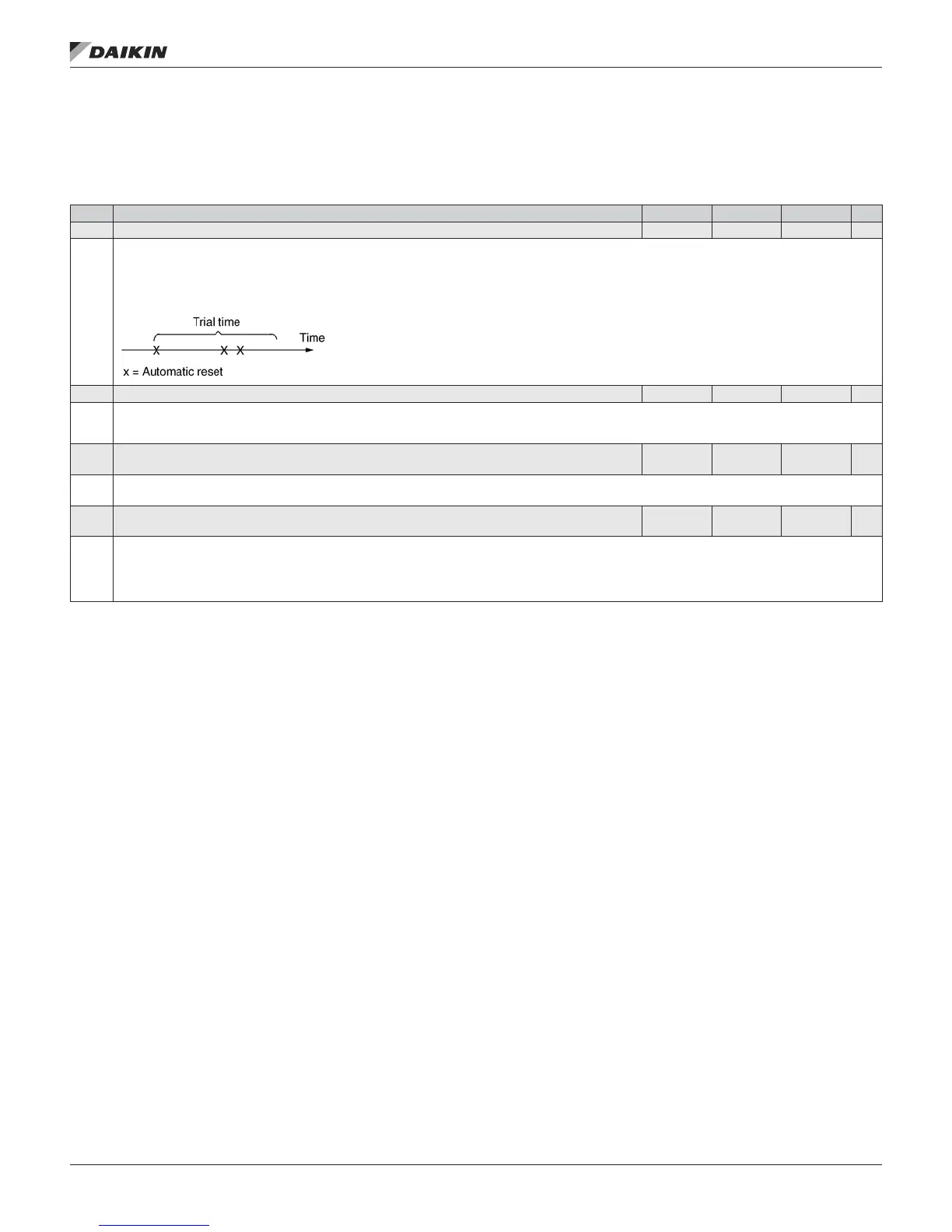

Example: Three faults have occurred in the trial time. The last is reset only if the value for 3101 NUMBER OF TRIALS is 3 or more.
3102 TRIAL TIME 1.0…600.0 s 0.1 s 30.0 s
Sets the time period used for counting and limiting the number of resets.
• See 3101 NUMBER OF TRIALS.
3103 DELAY TIME
0.0…
120.0 s
0.1 s 6.0 s
Sets the delay time between a fault detection and attempted drive restart.
• If DELAY TIME = zero, the drive resets immediately.
3104 AR OVERCURRENT 0, 1 1
0
(DISABLE)
Sets the automatic reset for the overcurrent function on or off.
0 = DISABLE – Disables automatic reset.
1 = ENABLE – Enables automatic reset.
• Automatically resets the fault (OVERCURRENT) after the delay set by 3103 DELAY TIME, and the drive resumes normal operation.
