Group 36: Timed Functions
This group denes the timed functions. The timed functions include:
• Four daily start and stop times
• Four weekly start, stop and boost times
• Four timers for collecting selected periods together.
A timer can be connected to multiple time periods and a time period can be in multiple timers.
A parameter can be connected to only one timer..
You can use the Timed functions assistant for easy conguring.
Table 19: Group 36: Timed Functions
Code Description Range Resolution Default S
3601 TIMERS ENABLE -6…7 1 0 (NOT SEL)
Selects the source for the timer enable signal.
0 = NOT SEL – Timed functions are disabled.
1 = DI1 – Denes digital input DI1 as the timed function enable signal.
• The digital input must be activated to enable the timed function.
2…6 = DI2…DI6 – Denes digital input DI2…DI6 as the timed function enable signal.
7 = ACTIVE – Timed functions are enabled.
-1 = DI1(INV) – Denes an inverted digital input DI1 as the timed function enable signal.
• This digital input must be de-activated to enable the timed function.
• -2…-6 = DI2(INV)…DI6(INV) – Denes an inverted digital input DI2…DI6 as the timed function enable signal.
3602 START TIME 1 00:00:00…23:59:58 2 s 12:00:00 AM
Denes the daily start time.
• The time can be changed in steps of 2 seconds.
• If parameter value is 07:00:00, the timer is activated at 7 a.m.

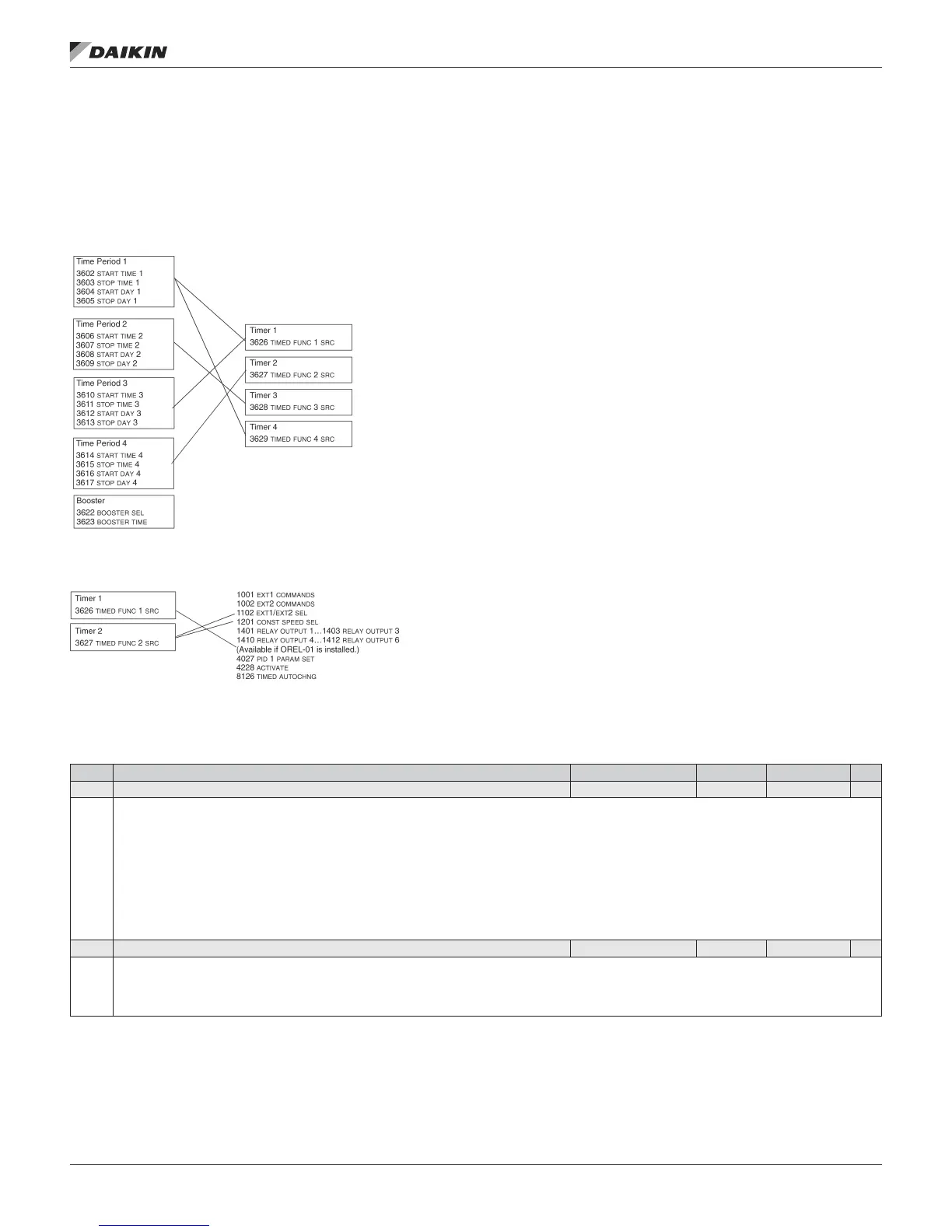

• The gure shows multiple timers on different weekdays.
