1.12.2 Wired Remote Controller – Heat Reclaim Ventilation <BRC301B61>
Setting procedure
1. In the Normal Mode, press the button for more than 4 seconds to enter the Local
Setting mode.
2. Using the (Mode No. UP) and [Ventilation Volume] (Mode No. DOWN) buttons to
select a desired Mode No.
3. To set individual Heat Reclaim Ventilation units in group control (select Mode Nos. 27 and
28 (Heat Reclaim Ventilation )), press the button and choose the Unit No. to set. (This
step is not necessary in all group unit setting.)
4. Press the UP button to select a Setting Switch No.
5. Press the DOWN button to select a Setting Position No.
6. Press the button once to enter the settings.
7. Depress the button for about 1 second to return to the Normal Mode.
(Example)
When setting the filter sign time to "Filter Dirtiness - High" in all group unit setting, set the Mode
No. to "17," Mode Setting No. to "0" and Setting Position No. to "02."
4
3
6
1, 7
5
2

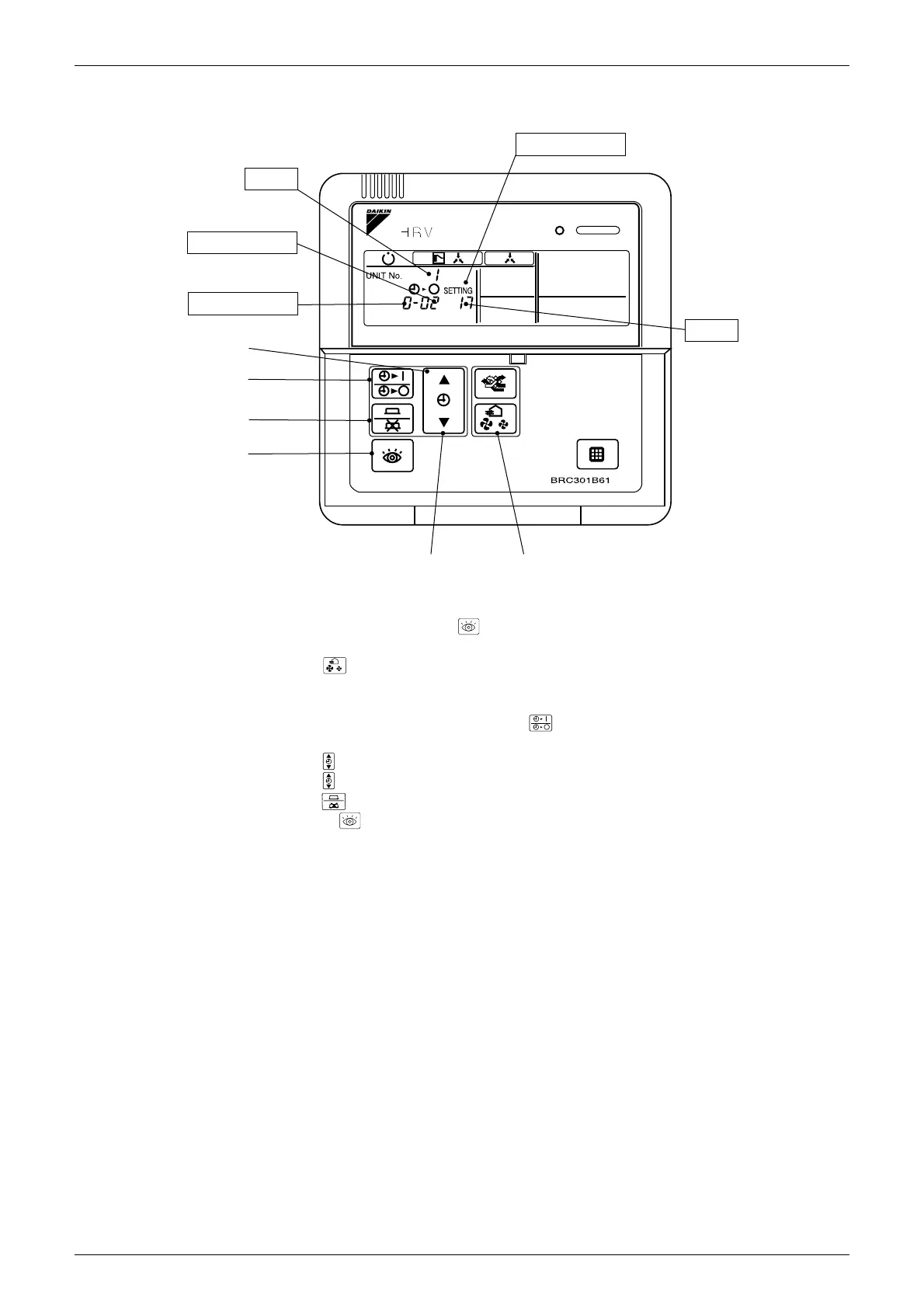

Unit No.
Mode No.
Setting position No.
Field setting mode
Setting switch No.
(HL039)
