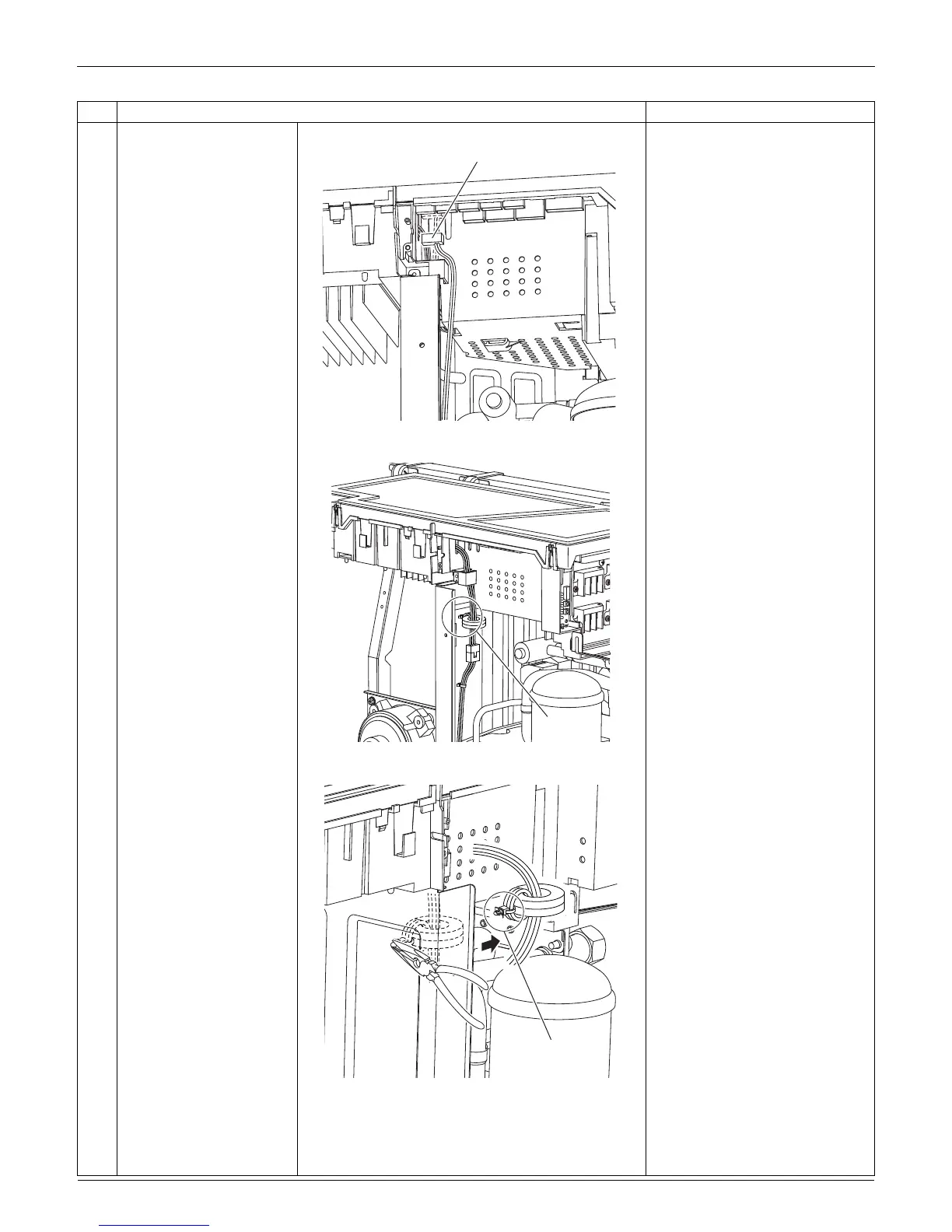

Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B
237 Removal Procedure
10
Disconnect the connector
for the overload protector
[S40].
11
The wire harness for the
compressor is attached to
the partition plate (1) by
the clamp.
12
Pull out the clamp with
pliers.
Step
Procedure Points
[S40]
(R10539)
Clamp
(R6422)
Clamp
(R6423)
