SiUS12-928_B Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU

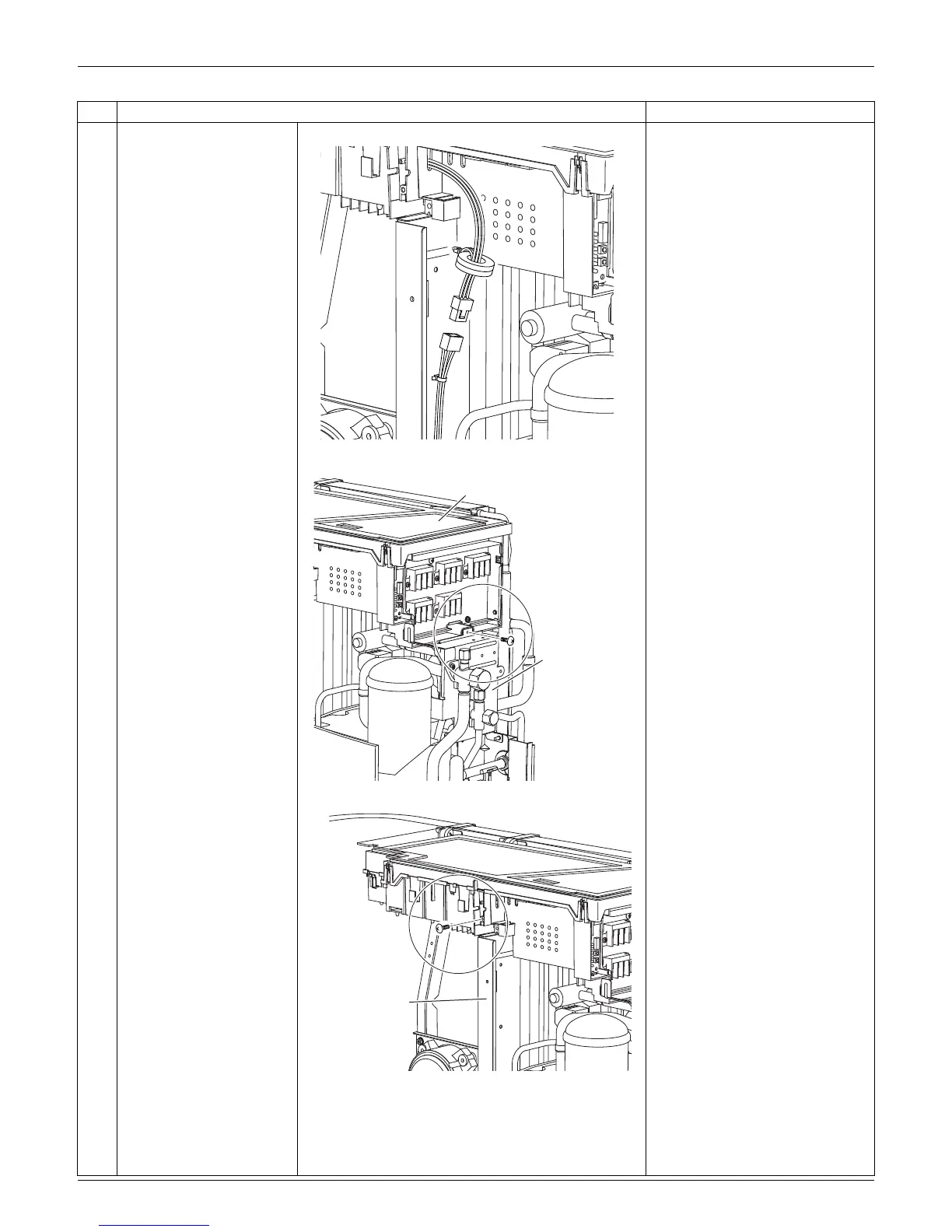

Removal Procedure 238
13
Disconnect the relay
connector of the
compressor.
14
Remove the screw on the
stop valve mounting plate.
15
Remove the screw on the
partition plate (1).
Step
Procedure Points
(R6469)
(R10395)
Electrical box
Stop valve
mounting plate
(R6411)
Partition plate (1)
