Daikin SUPER MULTI NX G Series Service Manual

Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU SiUS12-928_B

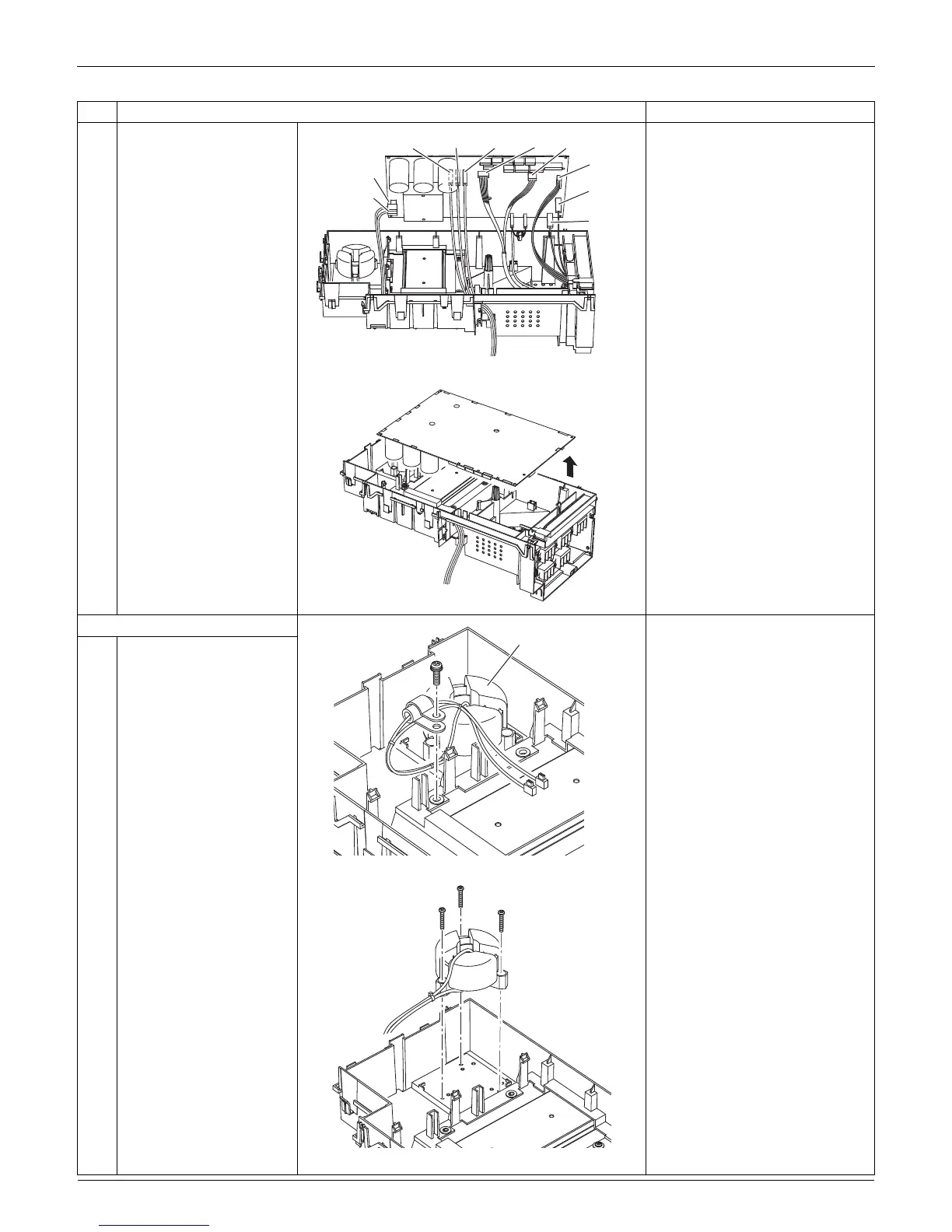

241 Removal Procedure
5
Disconnect the
connectors.
 Refer to page 33 for detail.
[S51] [S101] : service monitor
PCB
[S10] : terminal board
(transmission)
[HR1] [HR2] : reactor
[AC1] [AC2] : terminal board
(power supply)
[U] [V] [W] : compressor
6
Remove the main PCB.
2. Remove the reactor.
1
Remove the screw.
2
Remove the 3 screws and
lift the reactor upward to
remove it.
Step
Procedure Points
(R10407)
[AC1]
[AC2]
[S10]
[S101]
[S51]
W
V
U
[HR2]
[HR1]
(R10408)
(R10409)
Reactor
(R6434)
