SiUS12-928_B Outdoor Unit: 3MXS24JVJU, 4MXS32GVJU
Removal Procedure 242

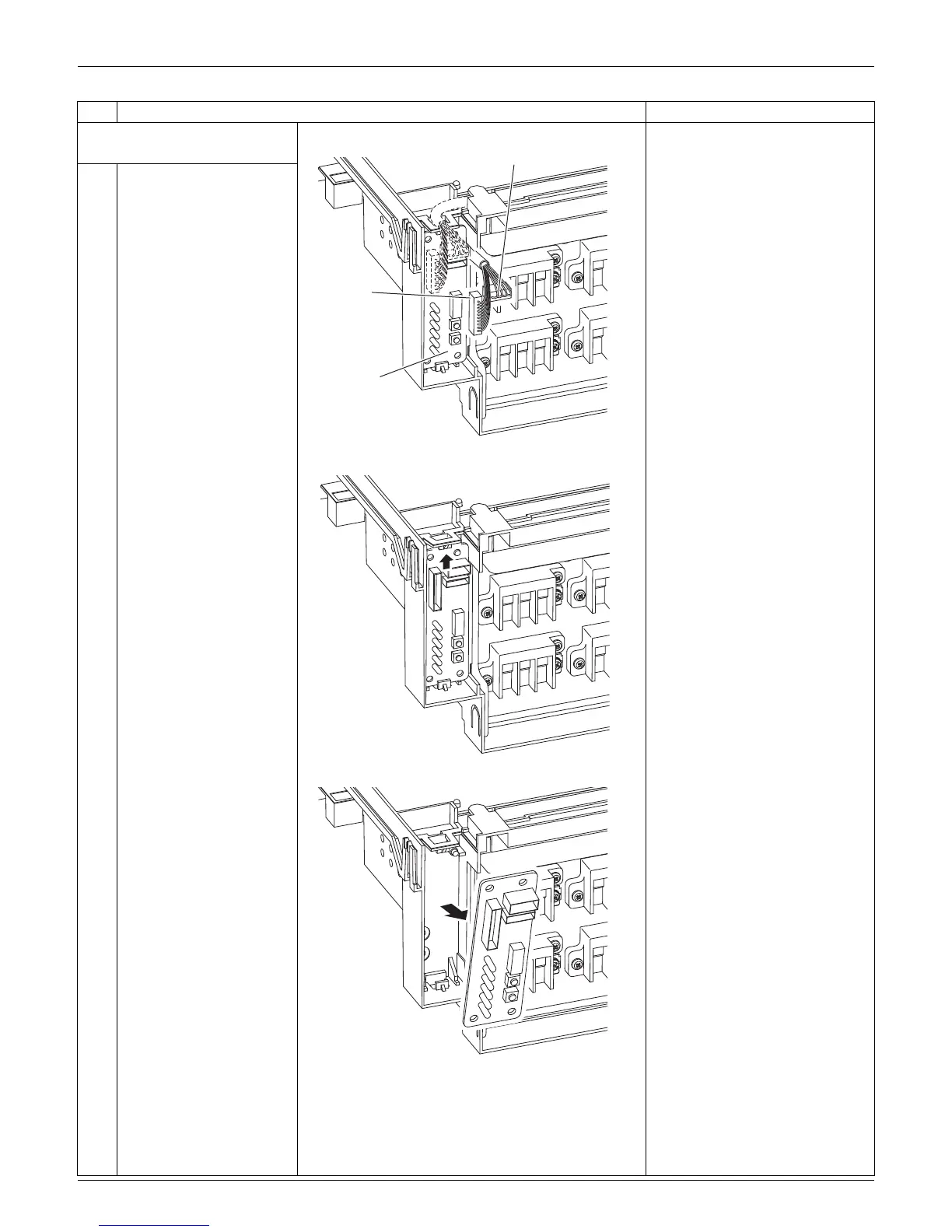

3. Remove the service monitor
PCB.
1
Disconnect the
connectors from the
service monitor PCB
[S52] [S102].
2
Slightly lift the top hook to
unfasten it.
3
Unfasten the bottom hook
to remove the service
monitor PCB.
Step
Procedure Points
(R10410)
[S102]
[S52]
Service
monitor PCB
(R6436)
(R6437)
