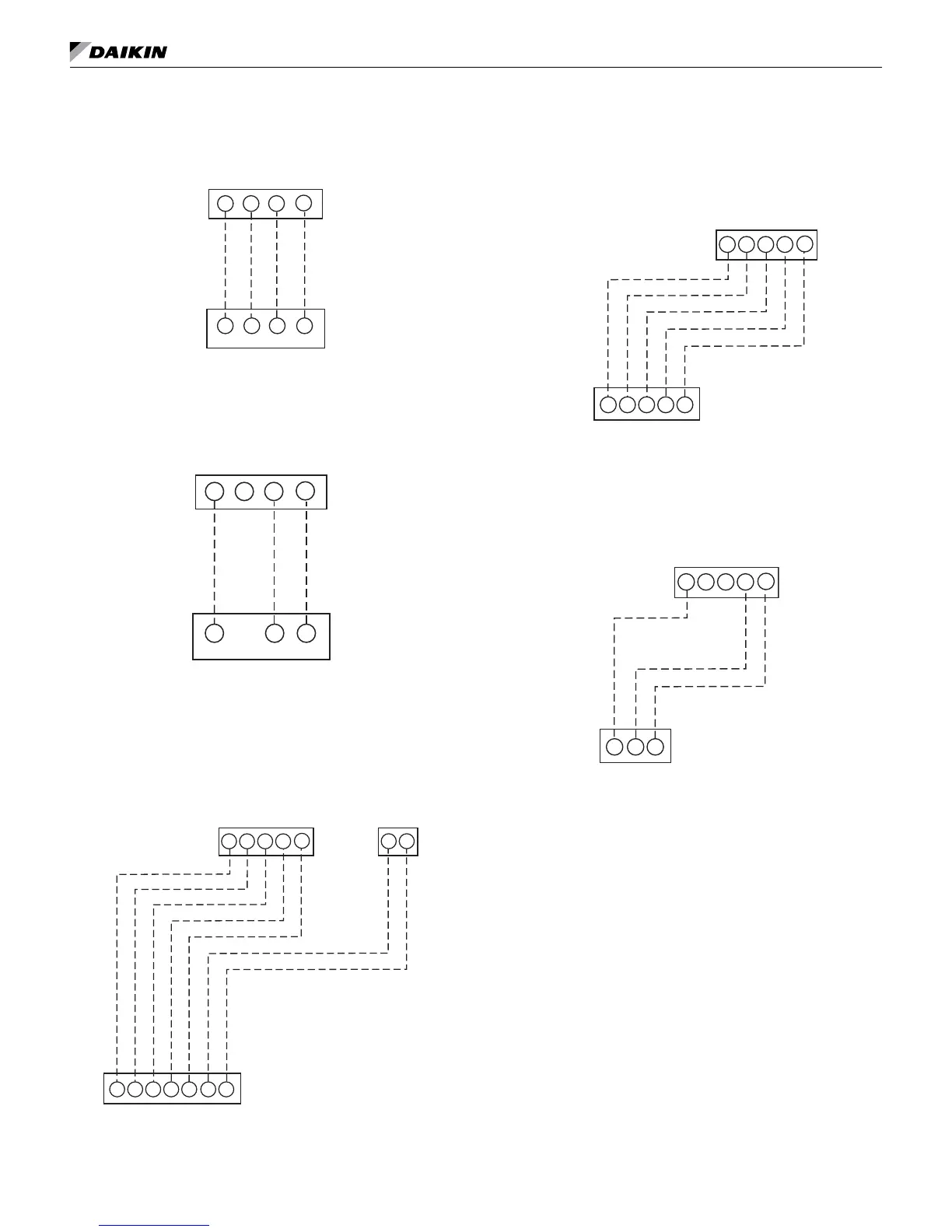

Cool/Warm Adjustable Sensor Wiring – P/N
910171464
1
4
5
3
MicroTech III Controller
Terminals TB1
1
Cool/Warm Adjustable Sensor
(Part No. 910171464)
4
3
5
(ST) (SP) (UTS)(GND)
Basic Sensor Wiring – P/N 910152149
1
4
5
MicroTech III Controller
Terminals TB1
1
Basic Sensor
(Part No. 910152149)
4
3
5
(ST)(UTS) (GND)
Room Temperature Sensor – Adjustable Cool/
Warm With Occupancy Switch – P/N 910121753
1
24
E
U5
3
2
MicroTech III
Controller
Terminals TB1
1
U
MicroTech III
Controller
Terminals TB3
E
Adjustable Cool/Warm
With Occupancy Switch
Room Temperature Sensor
4
3
5
Room Temperature Sensors Adjustable 55° to
95°F or +/- 3°F – P/N 669529101 Sensor +/- 3°F –
P/N 669529201
1
24
5
3
2
MicroTech III
Controller
Terminals TB1
1
Adjustable 55º to 95º or +/- 3º
F
Room Temperature Sensor
4
3
5
Basic Sensor – P/N 669529001
1
4
5
2
MicroTech III
Controller
Terminals TB1
1
Basic Sensor
4
3
5
