installation

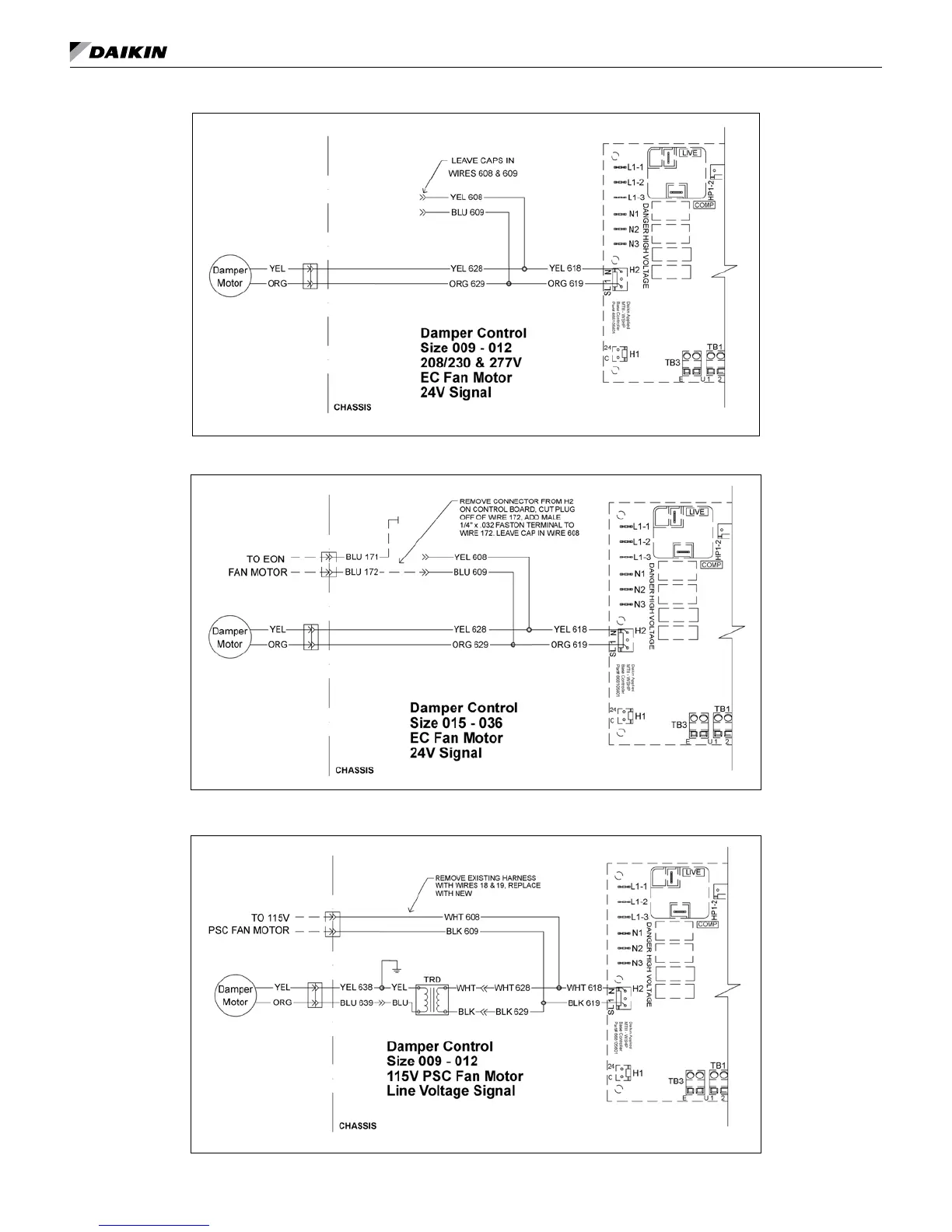

Figure 42: Damper control wiring, sizes 009-012 with 208/230V and 277V fan motor control
Figure 43: Damper control wiring, sizes 015-036 with EC motor
Figure 44: Damper control wiring, sizes 009-012 with 115V PSC fan motor, line voltage control
