installation

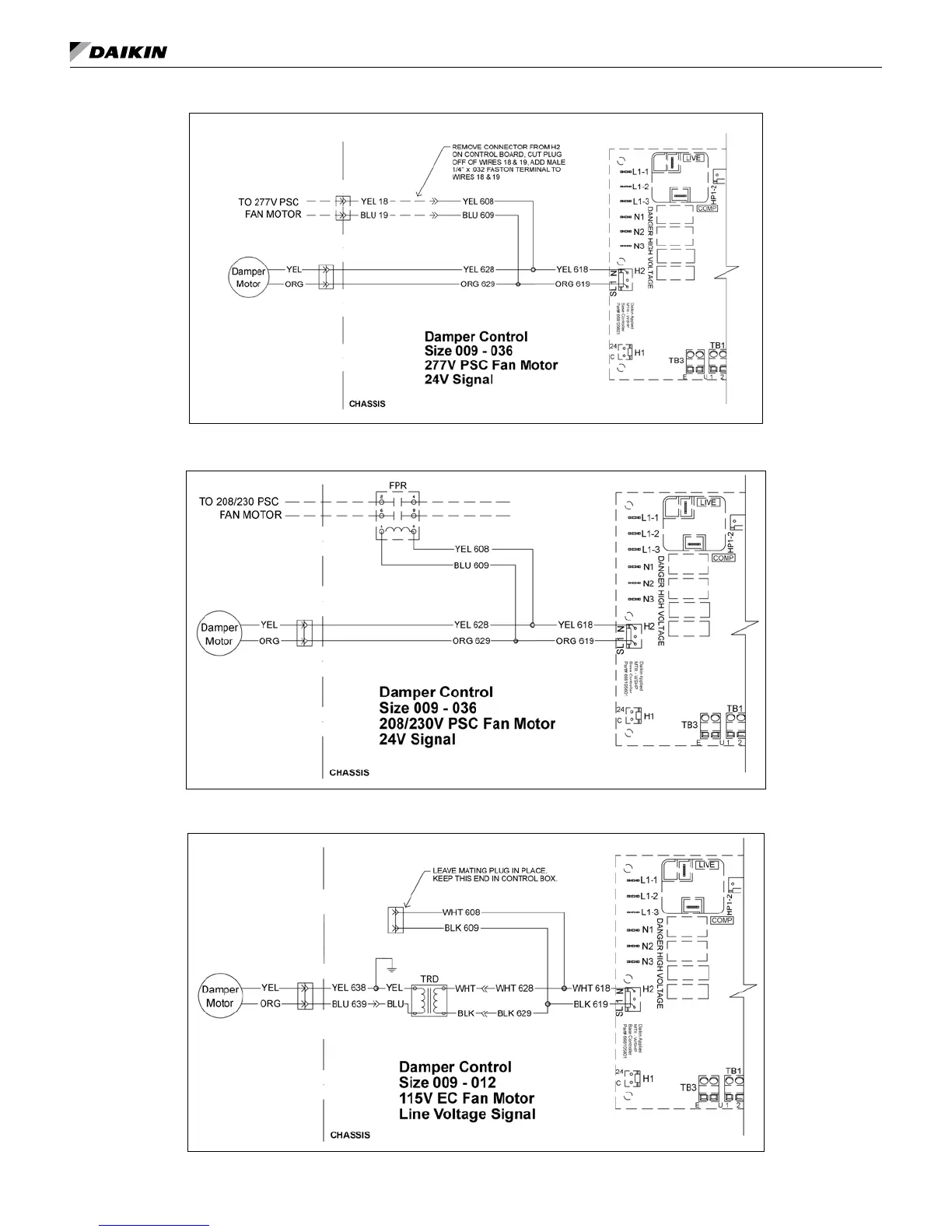

Figure 45: Damper control wiring, sizes 009-036 with 277V PSC fan motor, 24V control
Figure 46: Damper control wiring, sizes 009-036 with 208/230V PSC fan motor, 24V control
Figure 47: Damper control wiring, sizes 009-012 with 115V EC fan motor, line voltage control
