Sign Conguration
Click the red name in the left-side menu to open a SignConguration and Output
Location window. Refer to Figure 26.
Change the
sign name

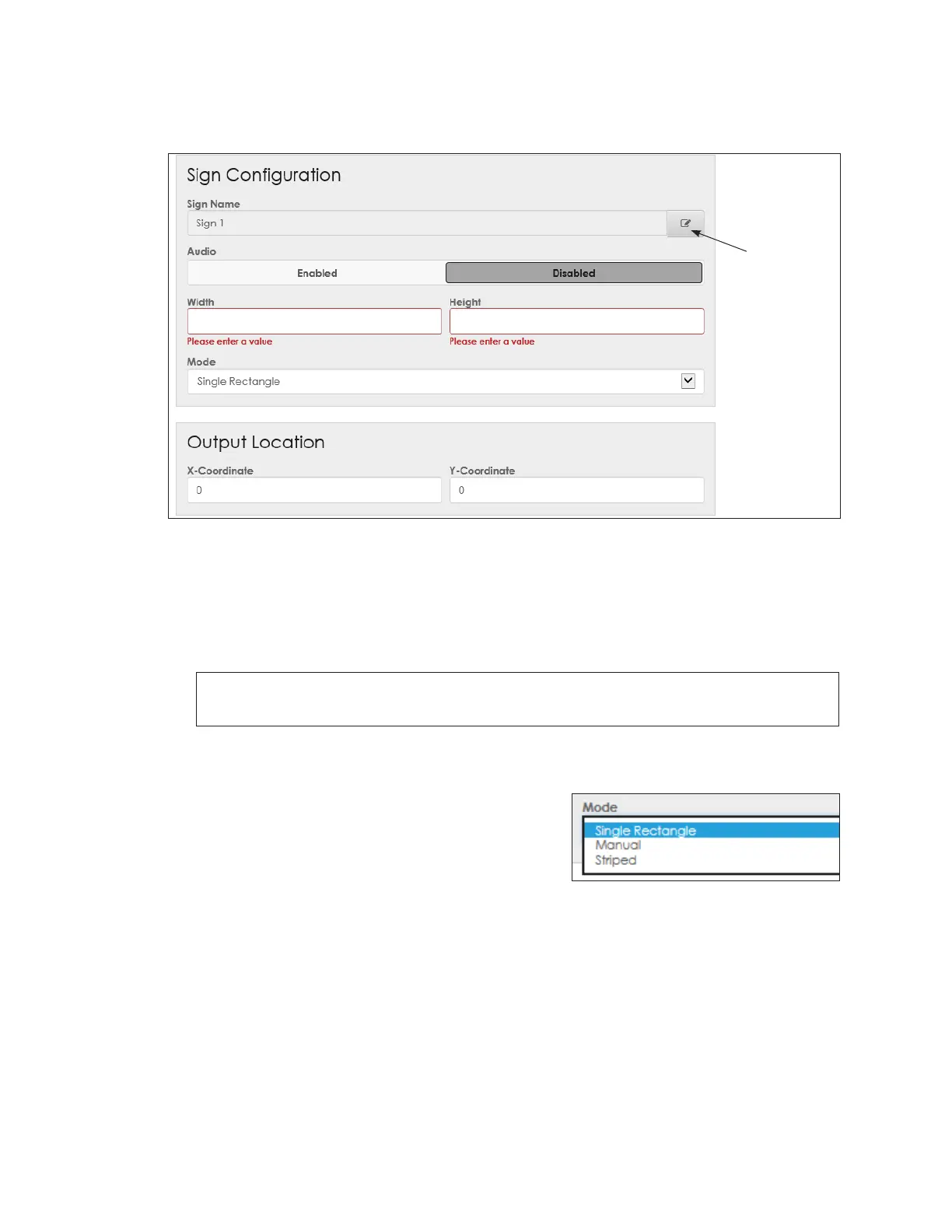

Figure 26: New Sign Conguration Parameters
To congure a new sign, follow these steps:
1. Click the edit icon next to the Sign Name to change the sign name from the generic
name (64 characters maximum). Refer to Figure 26. A warning message opens.
2. Select whether audio is Enabled or Disabled.
Note: If audio is Enabled for any sign under an output, the entire output is enabled
for audio.
3. Enter the Width and Height of the display’s active area (area that shows the image)
in pixels.
4. Choose the Mode from the drop-down list.
Mode determines how the content is arranged
on the display. Refer to Figure 27.
Single Rectangle is used for displays that
have a width no greater than the output
width (most video displays).
Manual is used by Daktronics Technical Support.
Striped is used for displays that have a width greater than the output width
(typically ribbon displays). Display content is broken down into sections smaller
than the output width. Refer to contract-specic Schematic Drawings for a
description of the number of stripes and their widths and enter this information.
Figure 27: Sign Conguration - Mode
