Cong

To schedule a weekly restart, click Weekly, enter a time in the Restart Time eld, and

select the day(s) of the week that the restart will be executed.

To schedule a daily restart, click Daily and enter a time in the Restart Time eld.

Note: To trigger an immediate system restart, refer to System Restart (p.31)

VIP

VIP enables the user to congure an associated video image processor (VIP). Refer to

Figure 37.

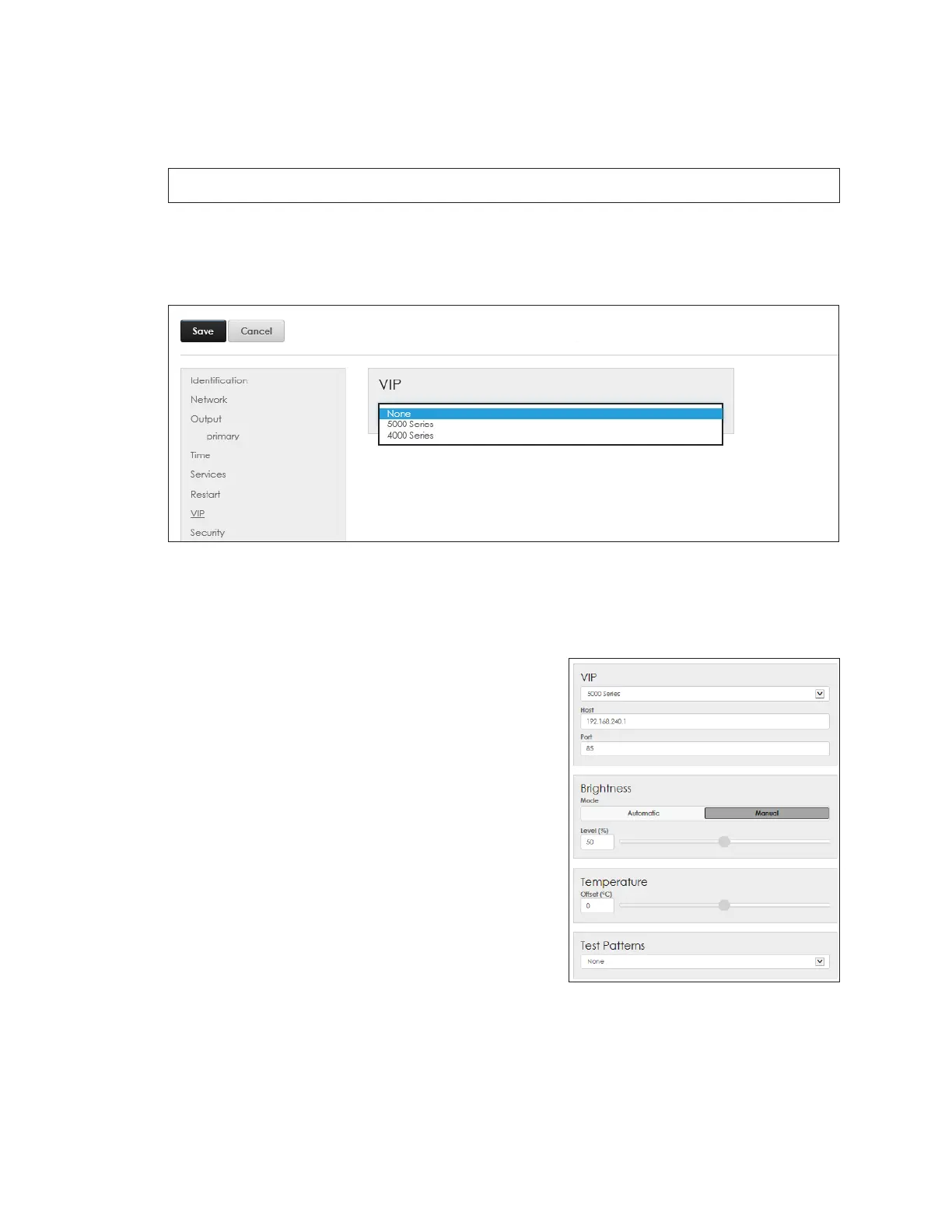

Figure 37: Conguration - VIP

Choose the type of VIP associated with the player from the drop-down list as shown in

Figure 37. Choose None if no VIP is available.

5000 Series

Choose the VIP 5000 Series from the drop-down list

to open the conguration elds for the Host address

and Port as well as Brightness, Temperature, and

Test Patterns. Refer to Figure 38.

• Host: default value

• Port: default value

Brightness

The brightness mode determines how the

brightness or intensity of the display is controlled.

• Automatic: Use this option if the display is

equipped with a light sensor. Dimming values

are determined by the light sensor and

automatically adjusted according to ambient

light conditions. Values vary to reect the

information from the light sensor.

• Manual: Use this option to manually enter the

dimming values using the slider bar. The brightness level remains at this value until

it is adjusted. Moving the slider bar to the right adjusts all color levels equally by the

percentage indicated. For example, 100 percent means a full white image shows

at the maximum light output of the display; 50 percent shows at 50 percent of the

maximum light output capacity of the display.

Figure 38: VIP-5000 Series

Daktronics DMP-8000 Series User Manual
