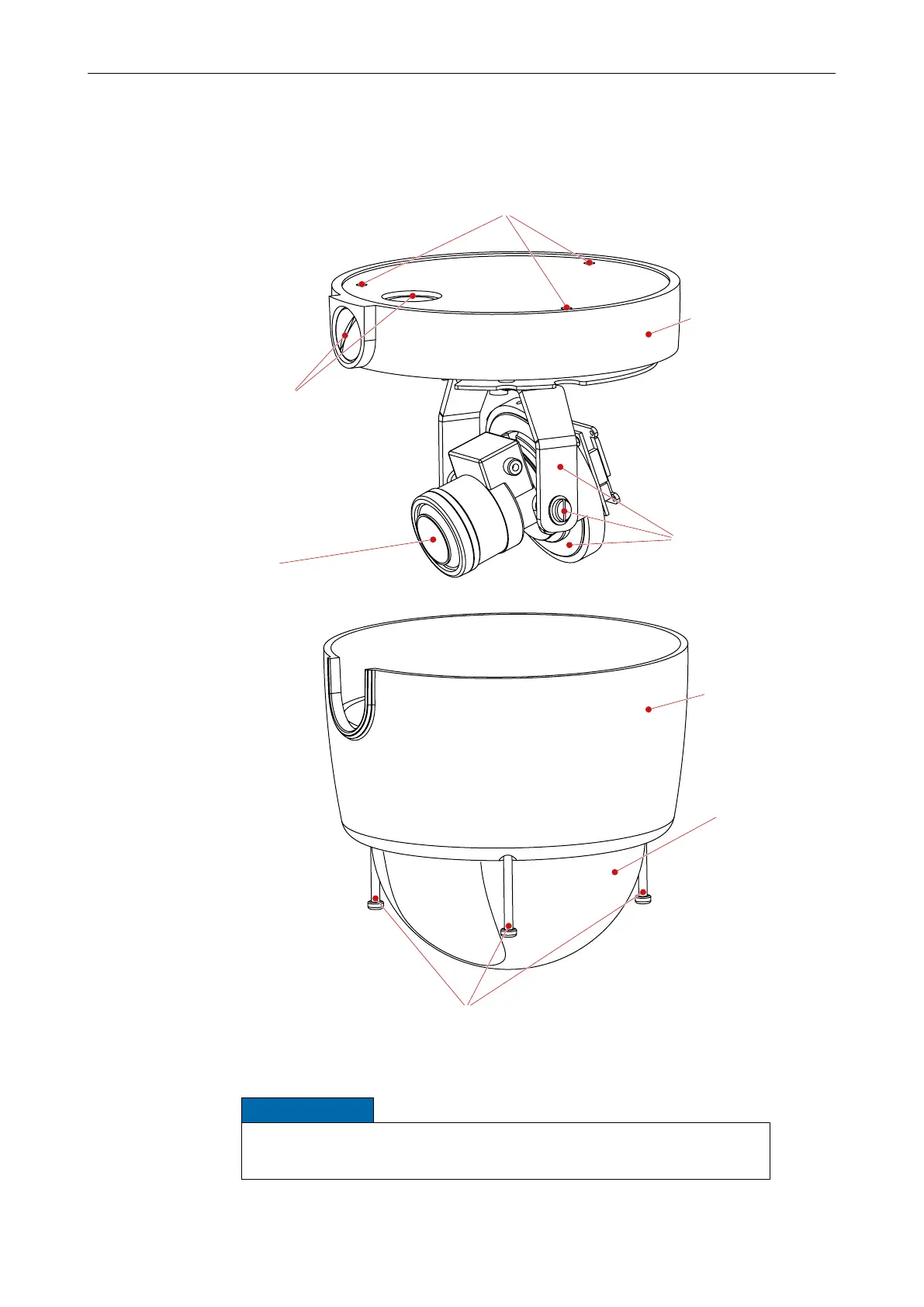

5.2.2 Surface Mount Variants (SM)
Thread for
PG16 cable gland
Mounting hole for
Ø 4 mm screw
Housing base
Housing with bubble
Lens
3-axis mount
(pan / tilt / rotation)
Housing screw
(T20 Torx)
Black inner
dome cover
Fig. 5-5
NOTICE
Always ensure that the lens is not covered by the black inner dome cover
when assembling the camera enclosure.
