7.2 Connection
The factory default IP address of the device is 192.168.2.28.
 Ensure that the PC/web browser can establish a connection to the device via Ethernet.
 Start the web browser.
 Enter the IP address of the device into the address bar of the web browser.
 Conrm the input.
The connection to the device is established.
The graphical user interface (GUI) of the live mode is displayed.
A HGECB D F

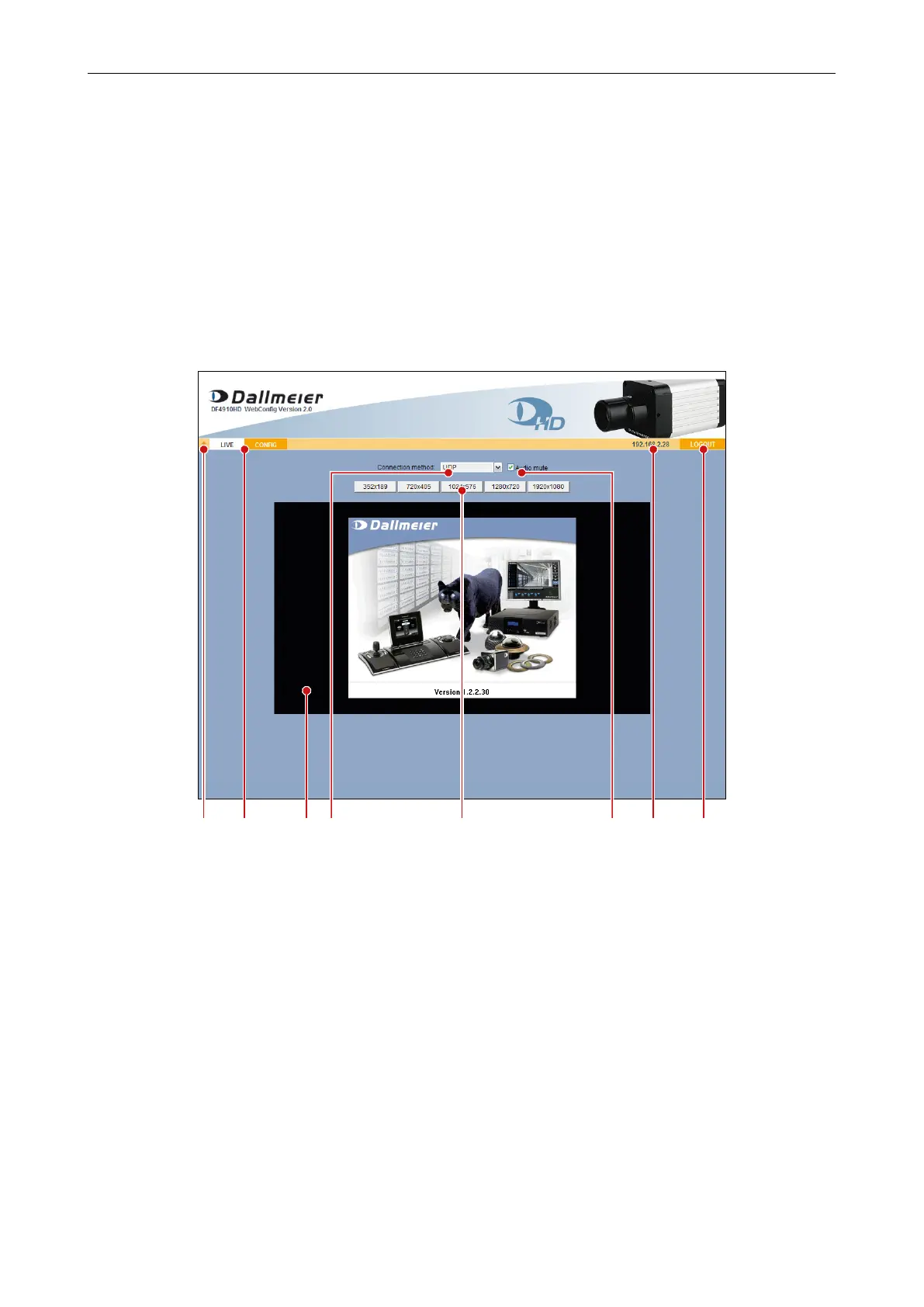

Fig. 7-1 Live mode with adjustable video resolution
A Hide/show title bar
B Switch between live and conguration mode
C Live video
D Connection method (UDP or TCP)
E Adjust video resolution
F Audio On/Off (live audio)
G IP address of the device
H Log out of conguration mode
