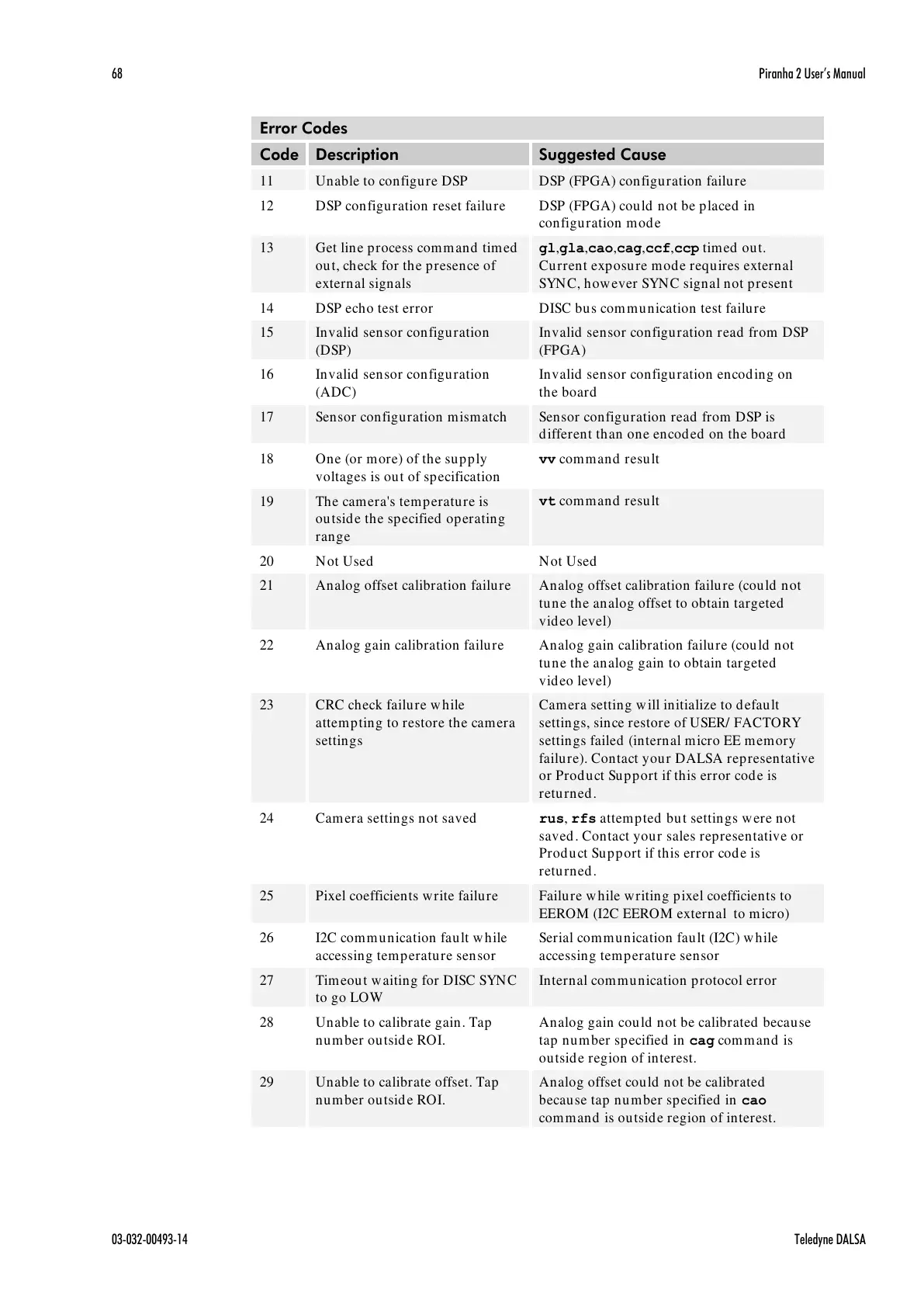

Error Codes
Code
Description
Suggested Cause
11
Unable to configure DSP
DSP (FPGA) configuration failure
12
DSP configuration reset failure
DSP (FPGA) could not be placed in
configuration mode
13
Get line process command timed
out, check for the presence of
external signals
gl,gla,cao,cag,ccf,ccp timed out.
Current exposure mode requires external
SYNC, however SYNC signal not present
14
DSP echo test error
DISC bus communication test failure
15
Invalid sensor configuration
(DSP)
Invalid sensor configuration read from DSP
(FPGA)
16
Invalid sensor configuration
(ADC)
Invalid sensor configuration encoding on
the board
17
Sensor configuration mismatch
Sensor configuration read from DSP is
different than one encoded on the board
18
One (or more) of the supply
voltages is out of specification
vv command result
19
The camera's temperature is
outside the specified operating
range
vt command result
20
Not Used
Not Used
21
Analog offset calibration failure
Analog offset calibration failure (could not
tune the analog offset to obtain targeted
video level)
22
Analog gain calibration failure
Analog gain calibration failure (could not
tune the analog gain to obtain targeted
video level)
23
CRC check failure while
attempting to restore the camera
settings
Camera setting will initialize to default
settings, since restore of USER/ FACTORY
settings failed (internal micro EE memory
failure). Contact your DALSA representative
or Product Support if this error code is
returned.
24
Camera settings not saved
rus, rfs attempted but settings were not
saved. Contact your sales representative or
Product Support if this error code is
returned.
25
Pixel coefficients write failure
Failure while writing pixel coefficients to
EEROM (I2C EEROM external to micro)
26
I2C communication fault while
accessing temperature sensor
Serial communication fault (I2C) while
accessing temperature sensor
27
Timeout waiting for DISC SYNC
to go LOW
Internal communication protocol error
28
Unable to calibrate gain. Tap
number outside ROI.
Analog gain could not be calibrated because
tap number specified in cag command is
outside region of interest.
29
Unable to calibrate offset. Tap
number outside ROI.
Analog offset could not be calibrated
because tap number specified in cao
command is outside region of interest.
