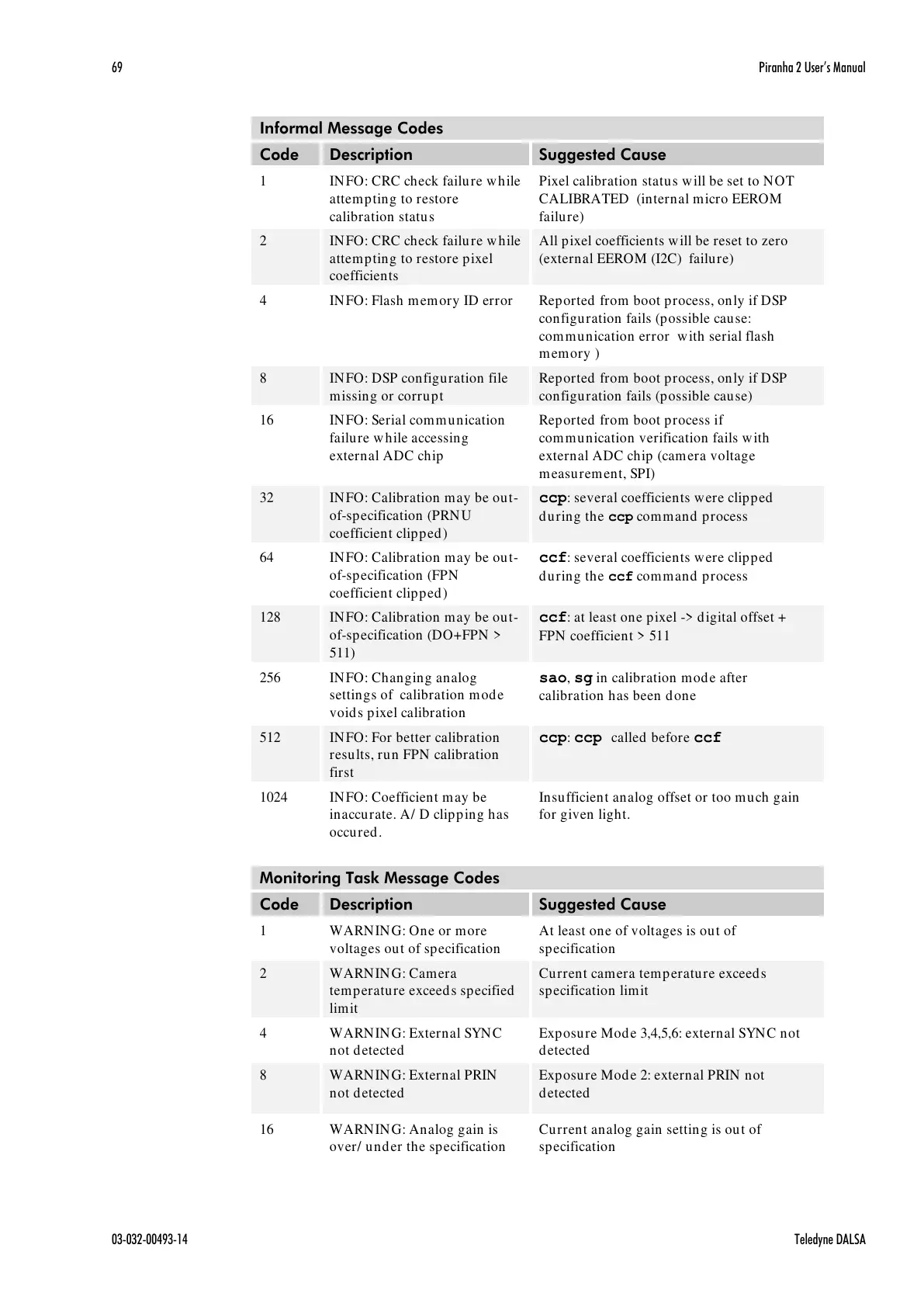

Informal Message Codes
Code
Description
Suggested Cause
1
INFO: CRC check failure while
attempting to restore
calibration status
Pixel calibration status will be set to NOT
CALIBRATED (internal micro EEROM
failure)
2
INFO: CRC check failure while
attempting to restore pixel
coefficients
All pixel coefficients will be reset to zero
(external EEROM (I2C) failure)
4
INFO: Flash memory ID error
Reported from boot process, only if DSP
configuration fails (possible cause:
communication error with serial flash
memory )
8
INFO: DSP configuration file
missing or corrupt
Reported from boot process, only if DSP
configuration fails (possible cause)
16
INFO: Serial communication
failure while accessing
external ADC chip
Reported from boot process if
communication verification fails with
external ADC chip (camera voltage
measurement, SPI)
32
INFO: Calibration may be out-
of-specification (PRNU
coefficient clipped)
ccp: several coefficients were clipped
during the ccp command process
64
INFO: Calibration may be out-
of-specification (FPN
coefficient clipped)
ccf: several coefficients were clipped
during the ccf command process
128
INFO: Calibration may be out-
of-specification (DO+FPN >
511)
ccf: at least one pixel -> digital offset +
FPN coefficient > 511
256
INFO: Changing analog
settings of calibration mode
voids pixel calibration
sao, sg in calibration mode after
calibration has been done
512
INFO: For better calibration
results, run FPN calibration
first
ccp: ccp called before ccf
1024
INFO: Coefficient may be
inaccurate. A/ D clipping has
occured.
Insufficient analog offset or too much gain
for given light.
Monitoring Task Message Codes
Code
Description
Suggested Cause
1
WARNING: One or more
voltages out of specification
At least one of voltages is out of
specification
2
WARNING: Camera
temperature exceeds specified
limit
Current camera temperature exceeds
specification limit
4
WARNING: External SYNC
not detected
Exposure Mode 3,4,5,6: external SYNC not
detected
8
WARNING: External PRIN
not detected
Exposure Mode 2: external PRIN not
detected
16
WARNING: Analog gain is
over/ under the specification
Current analog gain setting is out of
specification
