71 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA

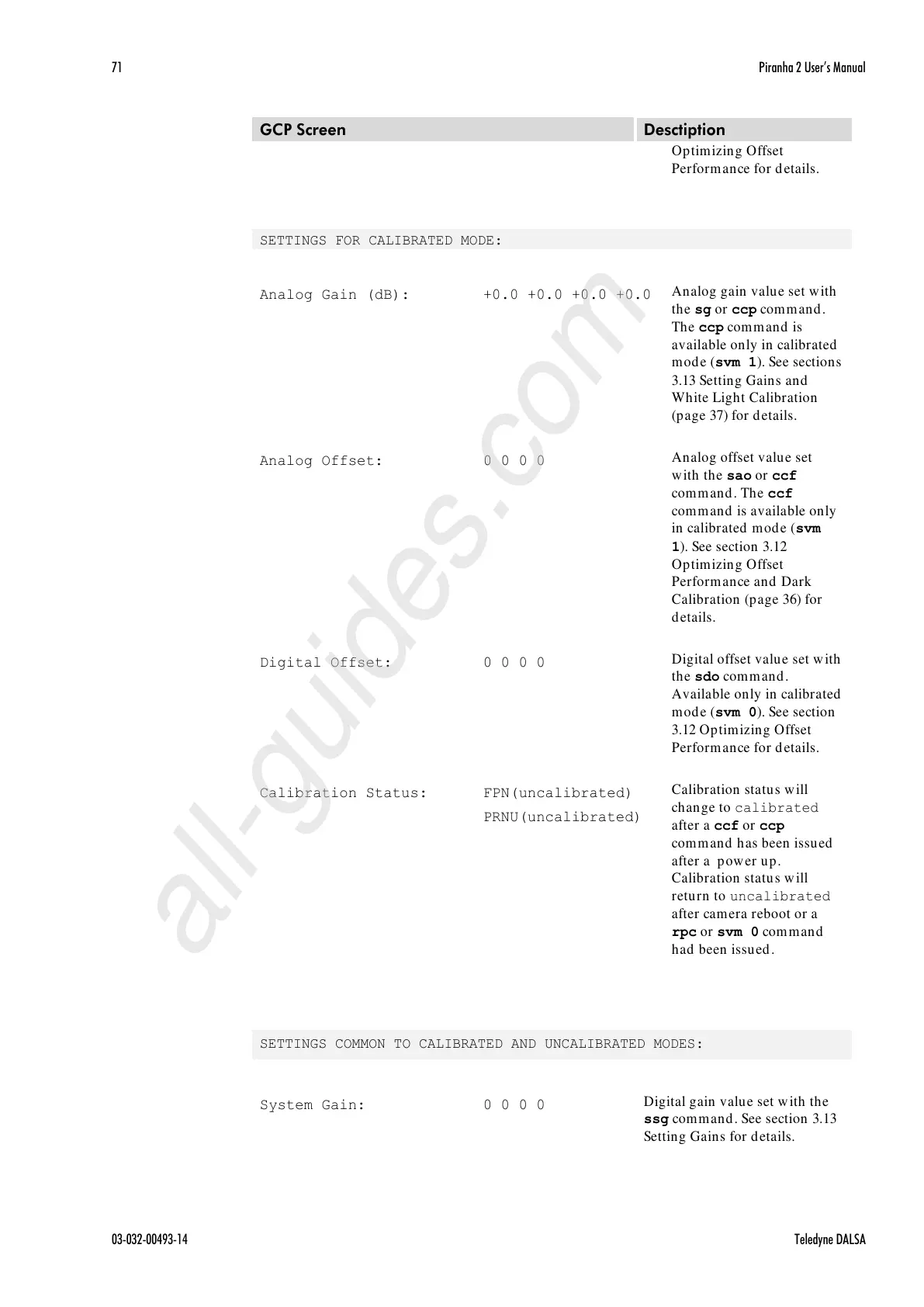

GCP Screen
Desctiption
Optimizing Offset
Performance for details.
SETTINGS FOR CALIBRATED MODE:
Analog Gain (dB):
+0.0 +0.0 +0.0 +0.0
Analog gain value set with
the sg or ccp command.
The ccp command is
available only in calibrated
mode (svm 1). See sections
3.13 Setting Gains and
White Light Calibration
(page 37) for details.
Analog Offset:
0 0 0 0
Analog offset value set
with the sao or ccf
command. The ccf
command is available only
in calibrated mode (svm
1). See section 3.12
Optimizing Offset
Performance and Dark
Calibration (page 36) for
details.
Digital Offset:
0 0 0 0
Digital offset value set with
the sdo command.
Available only in calibrated
mode (svm 0). See section
3.12 Optimizing Offset
Performance for details.
Calibration Status:
FPN(uncalibrated)
PRNU(uncalibrated)
Calibration status will
change to calibrated
after a ccf or ccp
command has been issued
after a power up.
Calibration status will
return to uncalibrated
after camera reboot or a
rpc or svm 0 command
had been issued.
SETTINGS COMMON TO CALIBRATED AND UNCALIBRATED MODES:
System Gain:
0 0 0 0
Digital gain value set with the
ssg command. See section 3.13
Setting Gains for details.
