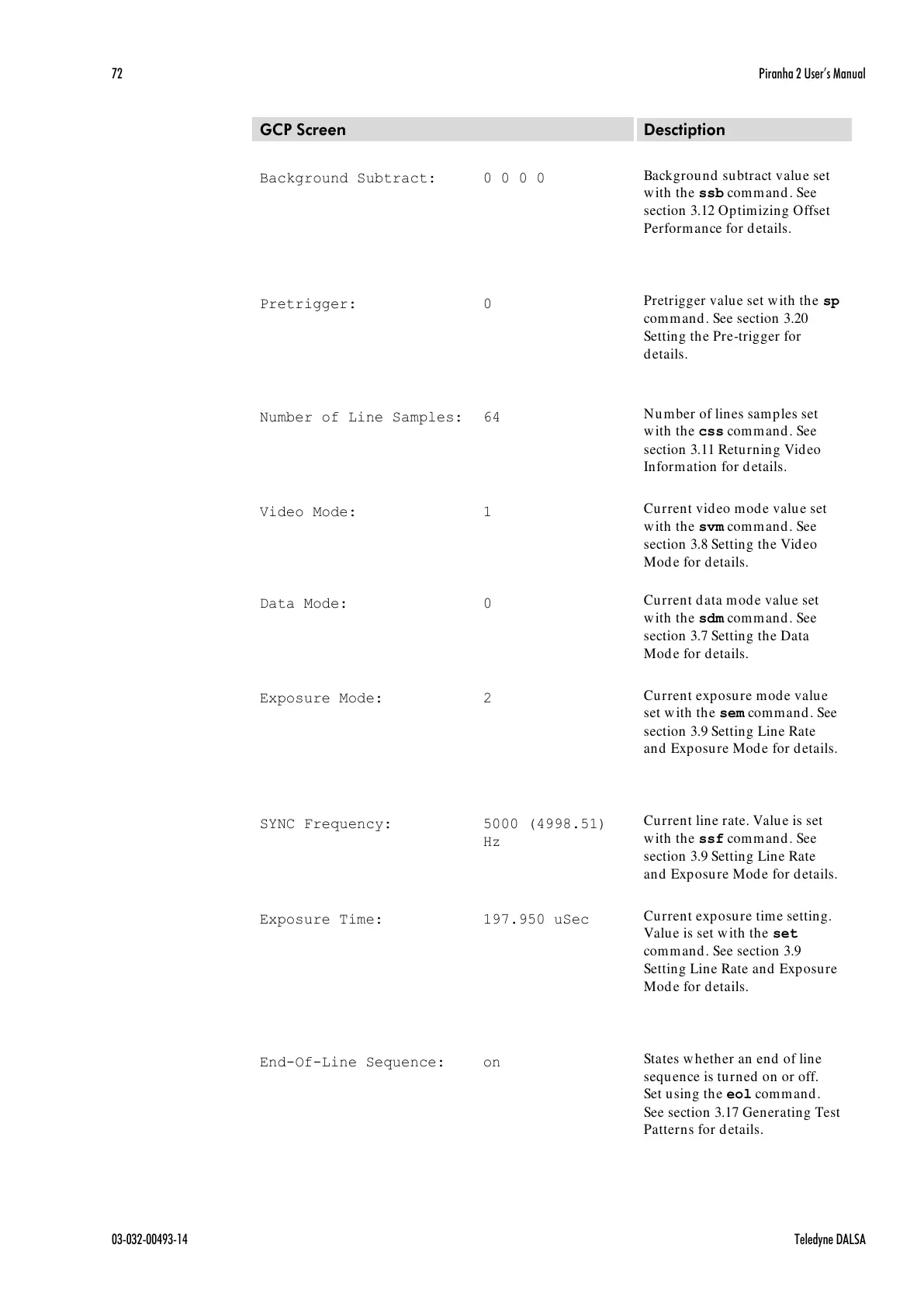

GCP Screen
Desctiption
Background Subtract:
0 0 0 0
Background subtract value set
with the ssb command. See
section 3.12 Optimizing Offset
Performance for details.
Pretrigger:
0
Pretrigger value set with the sp
command. See section 3.20
Setting the Pre-trigger for
details.
Number of Line Samples:
64
Number of lines samples set
with the css command. See
section 3.11 Returning Video
Information for details.
Video Mode:
1
Current video mode value set
with the svm command. See
section 3.8 Setting the Video
Mode for details.
Data Mode:
0
Current data mode value set
with the sdm command. See
section 3.7 Setting the Data
Mode for details.
Exposure Mode:
2
Current exposure mode value
set with the sem command. See
section 3.9 Setting Line Rate
and Exposure Mode for details.
SYNC Frequency:
5000 (4998.51)
Hz
Current line rate. Value is set
with the ssf command. See
section 3.9 Setting Line Rate
and Exposure Mode for details.
Exposure Time:
197.950 uSec
Current exposure time setting.
Value is set with the set
command. See section 3.9
Setting Line Rate and Exposure
Mode for details.
End-Of-Line Sequence:
on
States whether an end of line
sequence is turned on or off.
Set using the eol command.
See section 3.17 Generating Test
Patterns for details.
