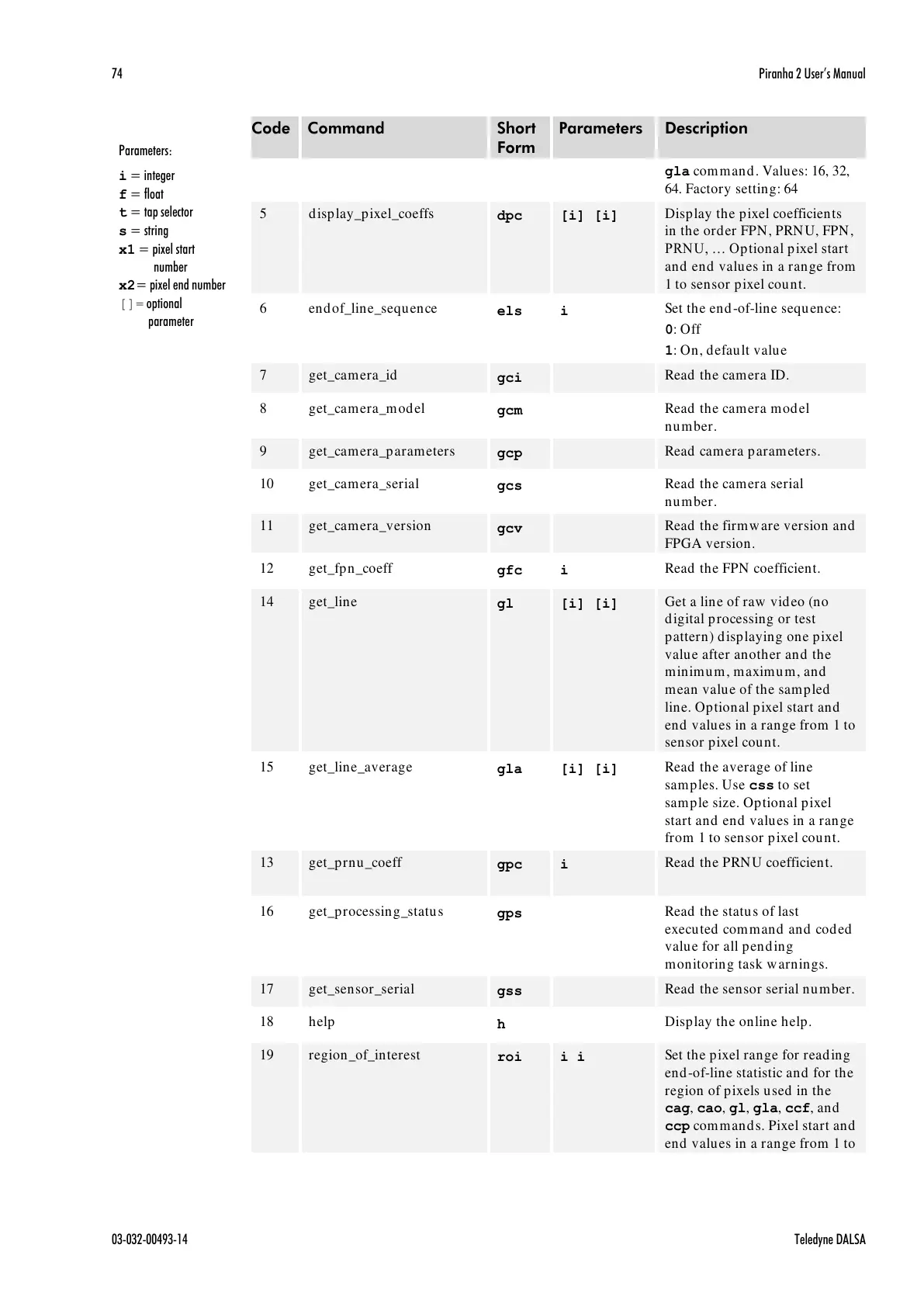

74 Piranha 2 User’s Manual
03-032-00493-14 Teledyne DALSA
Code
Command
Short
Form
Parameters
Description
gla command. Values: 16, 32,
64. Factory setting: 64
5
display_pixel_coeffs
dpc
[i] [i]
Display the pixel coefficients
in the order FPN, PRNU, FPN,
PRNU, … Optional p ixel start
and end values in a range from
1 to sensor pixel count.
6
endof_line_sequence
els
i
Set the end-of-line sequence:
0: Off
1: On, default value
7
get_camera_id
gci
Read the camera ID.
8
get_camera_model
gcm
Read the camera model
number.
9
get_camera_parameters
gcp
Read camera parameters.
10
get_camera_serial
gcs
Read the camera serial
number.
11
get_camera_version
gcv
Read the firmware version and
FPGA version.
12
get_fpn_coeff
gfc
i
Read the FPN coefficient.
14
get_line
gl
[i] [i]
Get a line of raw video (no
digital processing or test
pattern) displaying one pixel
value after another and the
minimum, maximum, and
mean value of the sampled
line. Optional pixel start and
end values in a range from 1 to
sensor pixel count.
15
get_line_average
gla
[i] [i]
Read the average of line
samples. Use css to set
sample size. Optional pixel
start and end values in a range
from 1 to sensor pixel count.
13
get_prnu_coeff
gpc
i
Read the PRNU coefficient.
16
get_processing_status
gps
Read the status of last
executed command and coded
value for all pending
monitoring task warnings.
17
get_sensor_serial
gss
Read the sensor serial number.
18
help
h
Display the online help.
19
region_of_interest
roi
i i
Set the pixel range for reading
end-of-line statistic and for the
region of pixels used in the
cag, cao, gl, gla, ccf, and
ccp commands. Pixel start and
end values in a range from 1 to
Parameters:
i = integer
f = float
t = tap selector
s = string
x1 = pixel start
number
x2= pixel end number
[]= optional
parameter
