6.2.4 Engine functions
This is a list of all available engine functions.

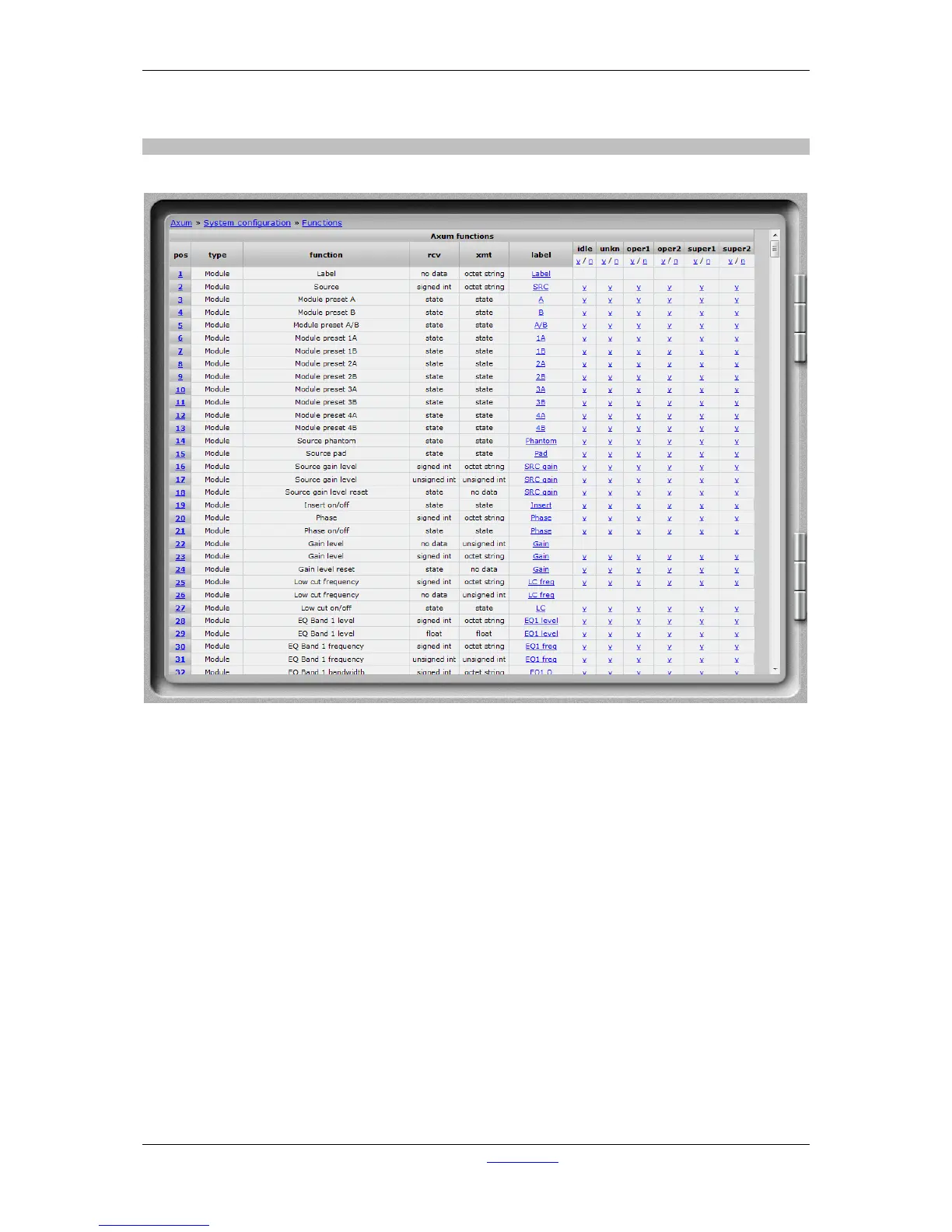

Figure 35: Engine functions
• Pos
Here it is possible to reposition the functions for easier/faster access in the surface/rack
configuration menu’s
• Type
Shows the group the functions belongs to and determines which number range is used.
- Module: 1-128
- Busses: 1-16
- Monitor busses: 1-16
- Global: 0
- Source: 1-1280
- Destination: 1-1280
• Function
Is the description of the engine function
• Rcv
The receive column shows which datatype is required at the object-sensor to be able to
control this functions.
