18.3.2 Practical solution 2: single managed level 3 switch/router
When you select an level 3 managed switch with the following features:
- Port VLAN
- Inter VLAN routing (IP)
(VLAN stands for Virtual Local Area Network)
It will be possible to hook up all your network equipment to the same switch and configure the switch
so it functions equal to ‘Practical solution 1’. Therefore you have to make 3 VLANs and make correct
Inter VLAN IP routes.

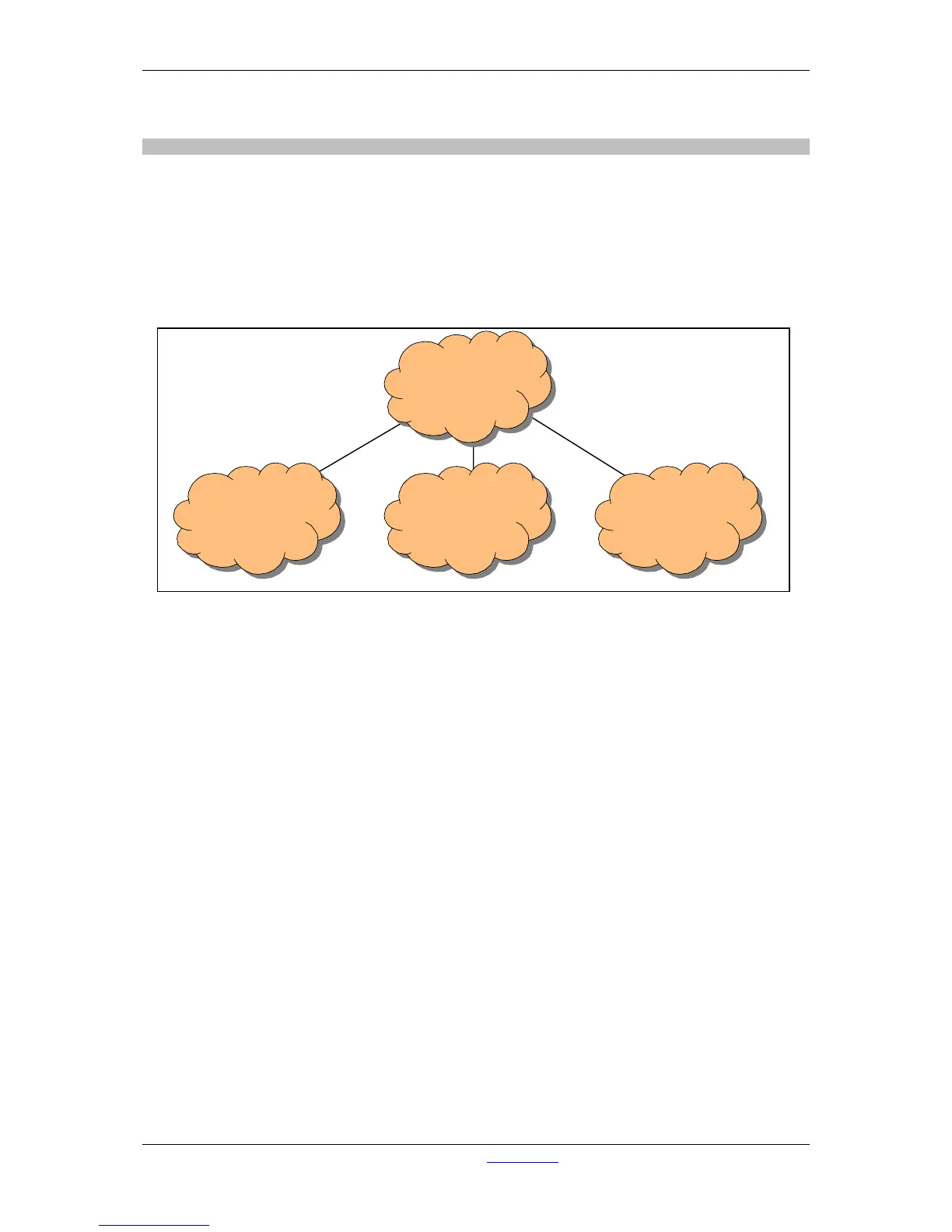

INTER VLAN
IP ROUTING
AXUM 1
VLAN 1
AXUM 2
VLAN 3
OFFICE
VLAN 2
Single managed
Level 3
router/switch
