9 I/O Rack description
The AXUM digital audio system has a 19” rack (for 21 slots) that requires at least one power supply (3
slots) and one engine card (2 slots). You then have space for a maximum of 16 in and output cards.
Because the AXUM is a modular system it is up to you how many in and output cards are necessary
to do the job.
For the connections, we use standard RJ45; an example for other connectors is ADAT that uses the
well-known ADAT optical connector. Connection between de RJ45s in the rack and your patch units is
by standard STP (Shielded Twisted Pair) cable.

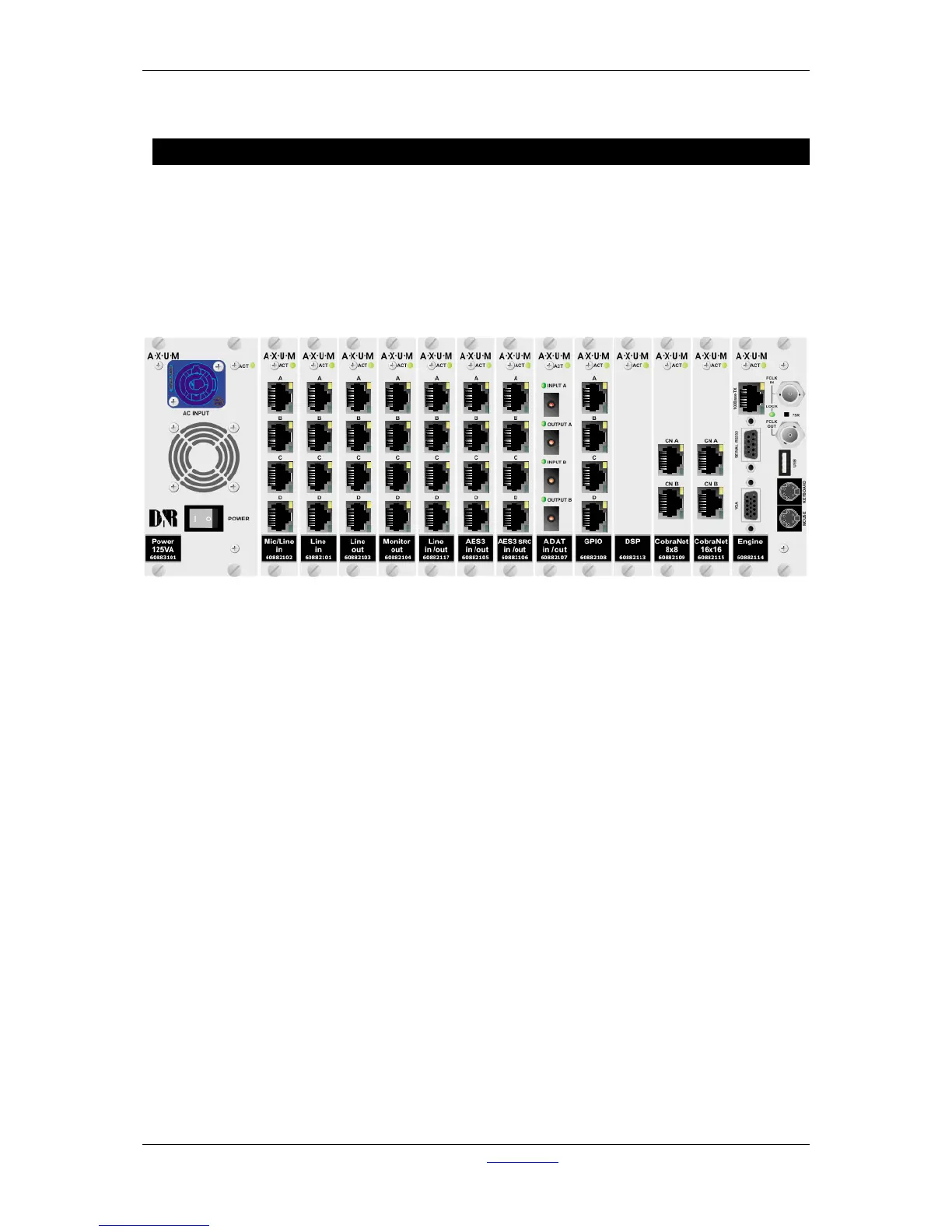

Figure 40: AXUM Digital audio system 19” Rack
