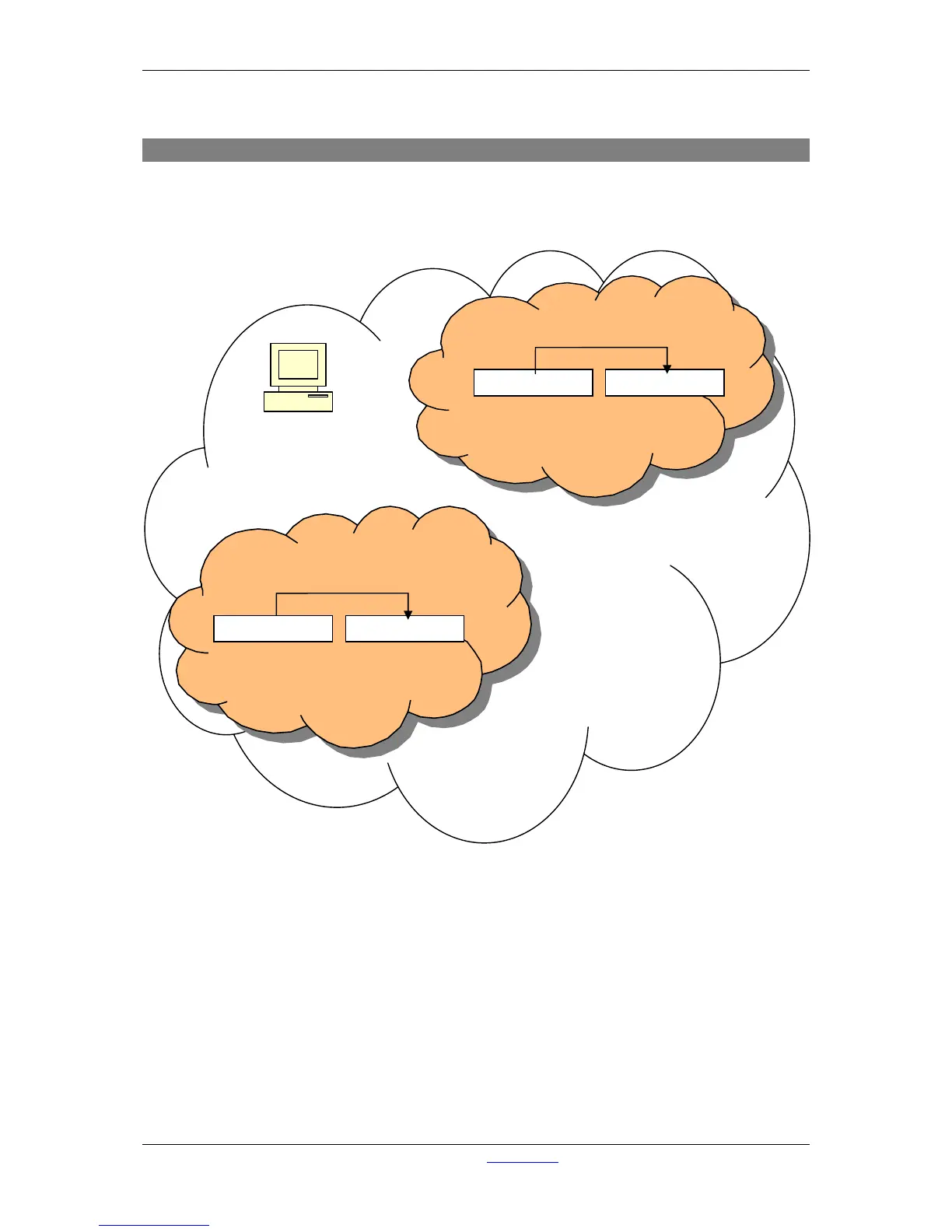

18.4 Network design (MambaNet over Layer 3)
When using MambaNet over UDP or TCP it is possible to use multiple racks in a single network.
It is important you realize that a single surface may connect to a single rack only.
MambaNet over UDP or TCP also gives possibilities to connect to AXUM Racks over the internet; this
requires port forwarding in the router between internet and your local network.
Layer 2 network (Ethernet),
also office network.
MambaNet
cloud 1
IP :192.168.0.101
Mask : 255.255.255.0
GW : 192.168.0.1
AXUM Rack
IP :192.168.0.100
Mask : 255.255.255.0
GW : 192.168.0.1
IP :192.168.0.10
Mask : 255.255.255.0
GW : 192.168.0.1
AXUM Surface
UDP to 192.168.0.100:34848
MambaNet
cloud 2
IP :192.168.0.201
Mask : 255.255.255.0
GW : 192.168.0.1
AXUM Rack
AXUM Surface
IP :192.168.0.200
Mask : 255.255.255.0
GW : 192.168.0.1
UDP to 192.168.0.100:34848
