A·X·U·M User Manual Version 2.5 - 2011-01-28
AXUM from D&R - Phone: +31 294 418014 - E-Mail: info@d-r.nl - 73 -

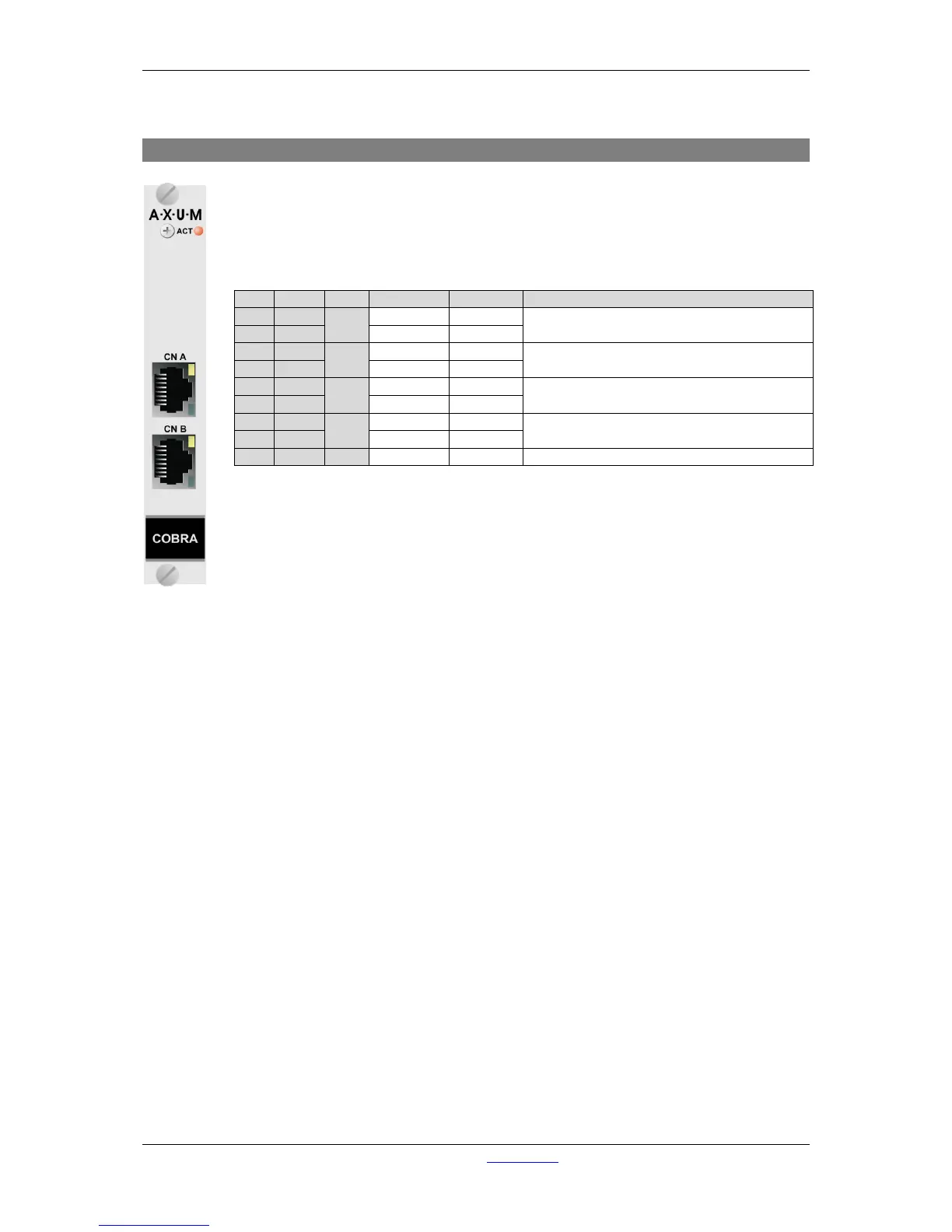

10.6 CobraNet in/output card
This CobraNet In/output card converts the CobraNet network signals into digital audio so it
can be processed in the AXUM system’s 19” inch rack.
The CobraNet In/out card can be ordered with various channel counts, please contact your
sales contact for the available options.
Table 10-7: CobraNet RJ45 (Ethernet) connection.
Con.
Pair
Pin name
Function
Comment
1A
1
TX +
Ethernet
Ethernet TX 10/100BASE-T
1B
TX -
Ethernet
2A
2
RX+
Ethernet
Ethernet RX 10/100BASE-T
2B
RX-
Ethernet
3A
3
NC
3B
NC
4A
4
NC
4B
NC
GND
S
Shield
GND
Ground
