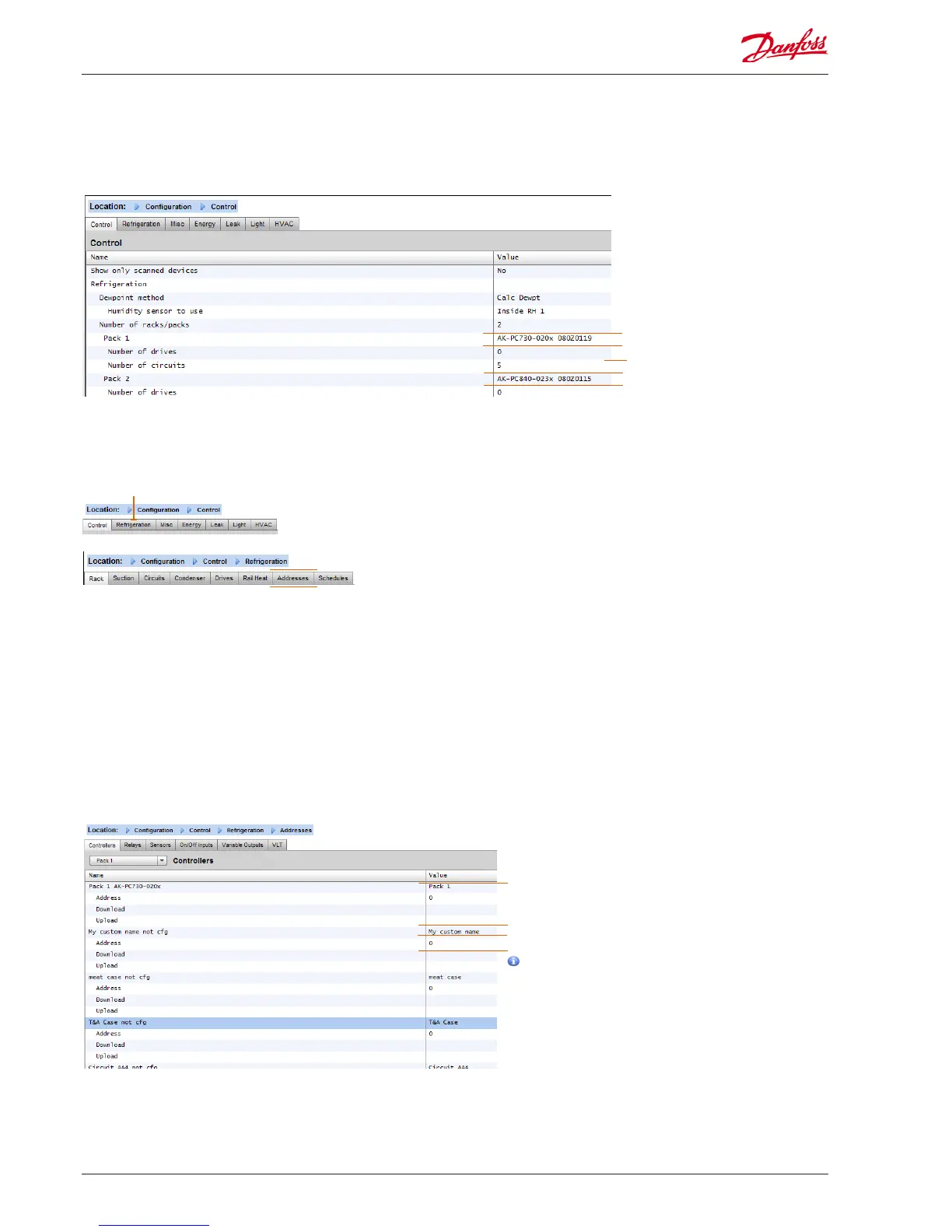

The following screen shots below represent an example of
de-centralized conguration (Pack and Case control).
The AK-SM has been congured for two pack controllers (AK-PC
730 and the AK-PC 840), with 5 Evaporator controllers under each
pack. Selection for each Pack controller was made via the pop up
box that appears when the Rack line is double clicked.
First, navigate to the ‘Address’ tab. Enter a valid network address,
corresponding to the address already set in the eld controllers.
Note: If your eld controllers have already been congured with
the relevant parameters set, you may wish to perform an ‘Upload’.
This function forces the AK-SM to pull back the controller settings
and thus synchronize the AK-SM database. Only use the ‘Down-
load’ function if you have nished controller conguration on the
AK-SM and you wish then to send these settings ‘down’ to the
controller.
A one click option for this (upload/download) can be found under
the Conguration->Network Nodes tab
Set a custom name for your control devices
Enter address that matches the physical
address in the pack and case controllers
Double click to select your
required Pack device
Once the Pack controllers have been dened and the number of
case controllers under each pack have been set, continue to the
Refrigeration tab for detailed conguration.
See above note about Download / Upload
