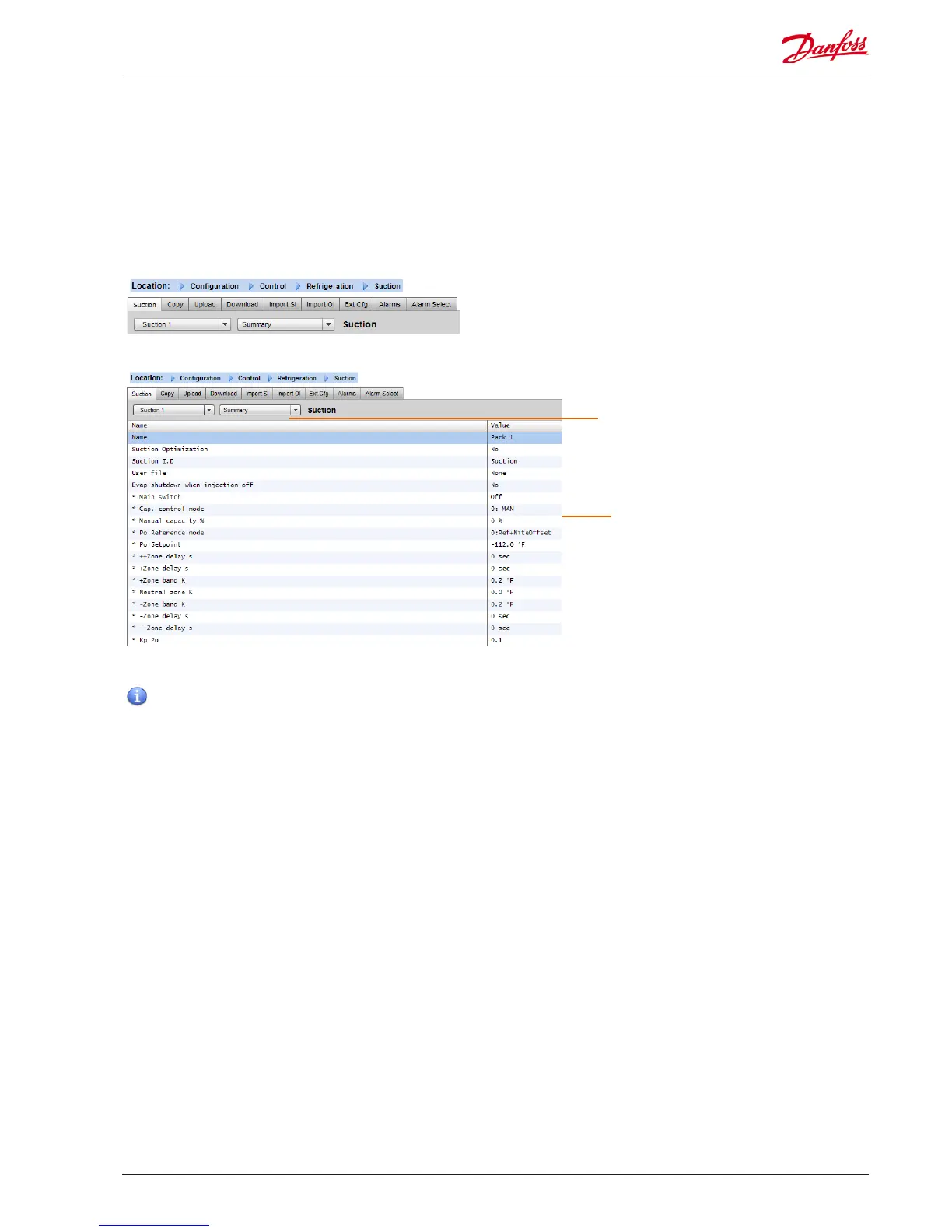

Controller menu selection. Use
this drop down list to access the
dierent controller menus.
Once all the addresses and custom naming is complete escape
out of the addresses menu and navigate to the ‘Suction’ tab. This
will allow for conguration of the Pack Controller(s). Use the drop
down (Suction) menu to access each Pack controller and the
corresponding menus. Please note that any online controller
devices will invoke a dialog box which asks if you wish to retrieve
the data from this controller. This dialog box is intended to direct
the choice of either uploading data from a controller (overwriting
any previous settings held in the AK-SM database) or not. If you
have existing controllers on the network which have already been
congured, choose the upload option (this need only be done
once for each controller you view).
When to use Upload / Download function:
The AK-SM holds a database in which all the system conguration
is held. This includes any actual controller devices connected or
just devices that have been selected ready for conguration. It is
important to recognise when to perform an upload or download
function so that any preset conguration is not overwritten by
automatic upload by the AK-SM.
Upload
This function may be required where the case and pack control-
lers have already been congured and all parameters are set
according to customer specications. In this instance the need is
to typically perform an upload function, thus updating the AK-SM
database to fully reect the controllers commissioned settings.
Once this has been done, changes to the controller settings can
be done directly from the AK-SM.
Download
The opposite to this would be where the controller devices have
not been set per customer specication and the AK-SM should be
used as the commissioning tool or window into the controllers.
By navigating through all the controller screens in the AK-SM it is
possible to congure the controller parameters and then send
these setting to the connected controllers via the download
function.
Controller parameters, to modify or
change double click line and press the
enter key. The new value will be sent to
the controller*
*Controller must be online
*Some controller types require the main
switch (R12 parameter) to be o before
certain changes can be made
