Sensors Tab
The example below shows the Misc Sensors tab. Navigate down
the control lines and congure as required.
Sensors Tab
Depending on control require-
ments the screen layout may
dier.
Navigate though the options,
adding custom name, AK I/O
address, alarms

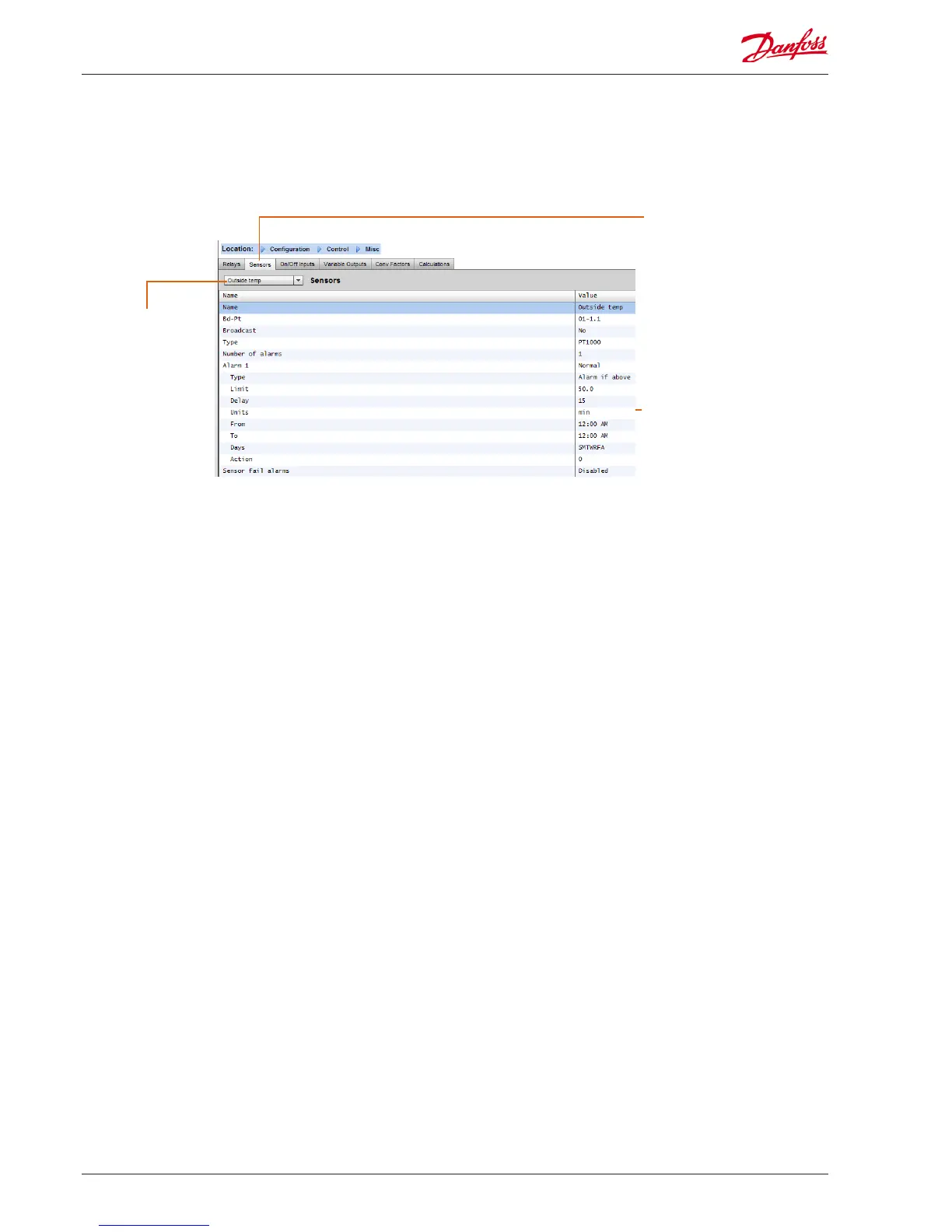

Example of Misc Sensors Tab
Name: Enter custom description for sensor
Bd-Pt: Enter a valid Board & Point address (using AK I/O modules)
Broadcast:
No: The value of the point will not be broadcast to be used in
logic on other controllers.
Send: The value of the point (whether it is ON or OFF) will be
available on the host network for use by other controllers. Be
sure that each sending Board-Point combination is unique
throughout the system. (If the controller at address #01 is
sending from its Bd-Pt address 1-02, then no other controller
can have an output at its Bd-Pt address 1-02 sending.
Rec: The value of the point is being received from another
controller on the host network. You must enter, in the Bd-Pt
elds, the Bd-Pt address of the sending point.
Type: Select from various option in the drop down list (this
example uses a PT1000 sensor)
Control Input: It is possible to use other dened points (includ-
ing calculations) to act as the control Input, these will be seen in a
drop down list
Number of alarms: Enter the amount of alarms (max 3)
Alarm 1: Enter the alarm level (Disabled, Log only, Normal,
Severe, Critical)
Type: Alarm if above or if below limit (seen below)
Limit: Enter the alarm limit
Delay: Enter delay time
Units: Seconds, Minutes, Hours
From: Denes alarm output time window
To: Denes alarm output time window
Days: Dene the days associated with alarm
Action: Dene the alarm action
Sensor fail alarms: Enter the alarm level to issue alarm if sensor
fails (Disabled, Log only, Normal, Severe, Critical)
If congured, navigate
to additional sensors
via the drop down box
Congure alarm setpoint &
actions
46 User Guide Lit. no. USCO.PI.R1.E1.02 © Danfoss 07-2013 AK-SM 850
