Danfoss FC 300

[103] Motor current
[104] Torque rel to lim
[105] Torque rel to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq 0-20
mA
[130] Output freq. 4-20 mA
[131] Reference 4-20 mA
[132] Feedback 4-20 mA
[133] Motor cur. 4-20 mA
[134] Torque % lim. 4-20
mA
[135] Torque % nom 4-20
mA
[136] Power 4-20 mA
[137] Speed 4-20 mA
[138] Torque 4-20 mA
[139] Bus ctrl. 0-20 mA
[140] Bus ctrl. 4-20 mA
[141] Bus ctrl. 0-20 mA,
timeout
[142] Bus ctrl. 4-20 mA,
timeout
[150] Max Out Freq 4-20
mA

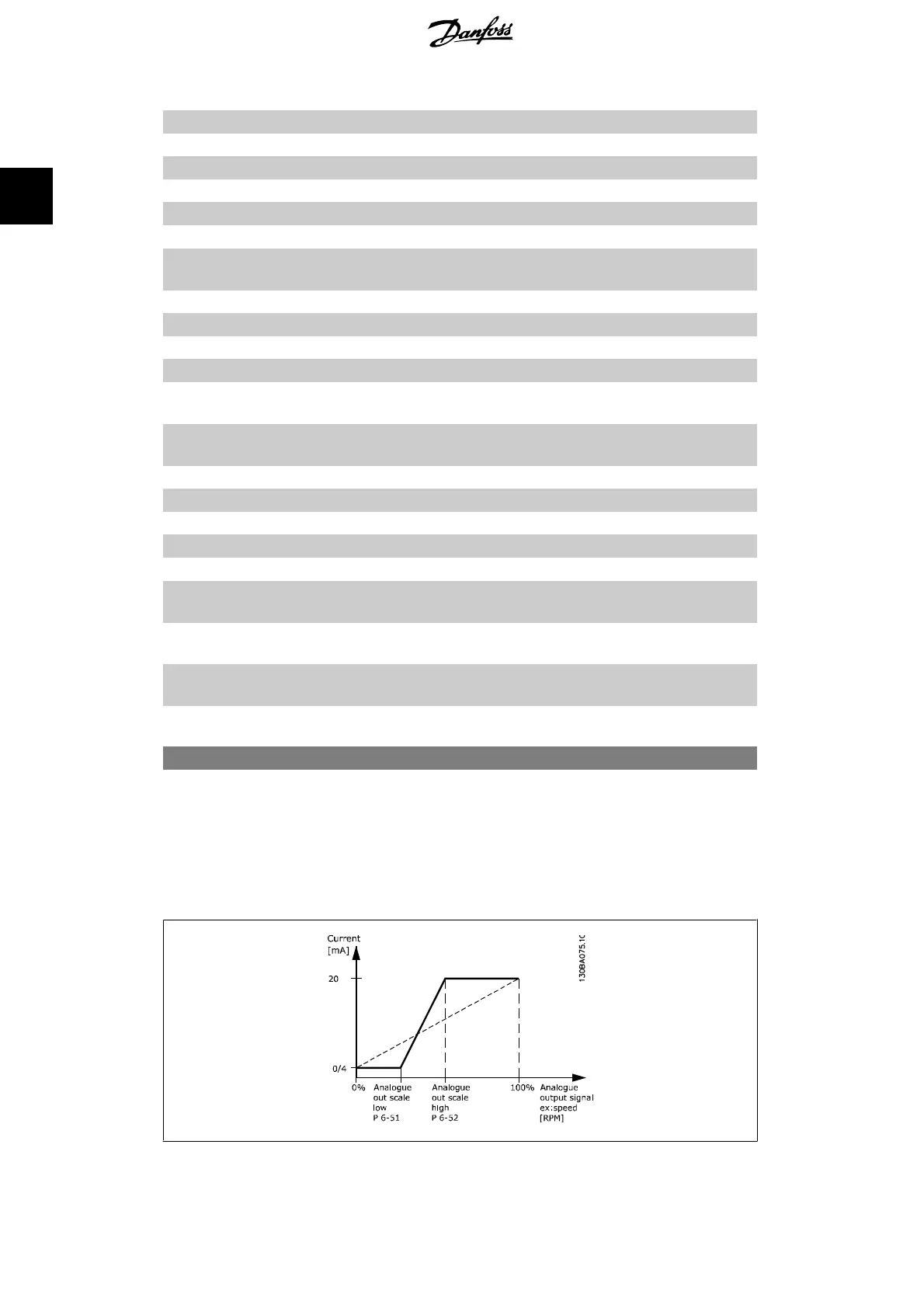

6-51 Terminal 42 Output Min Scale
Range: Function:
0%
*
[0 – 200%] Scale the minimum output of the selected analog signal at ter-
minal 42, as a percentage of the maximum signal value. E.g. if
0 mA (or 0 Hz) is desired at 25% of the maximum output value,
then programme 25%. Scaling values up to 100% can never be
higher than the corresponding setting in par. 6-52.
2. How to Programme FC 300 Programming Guide
118 MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
2
