Danfoss VLT 2800 Design Guide

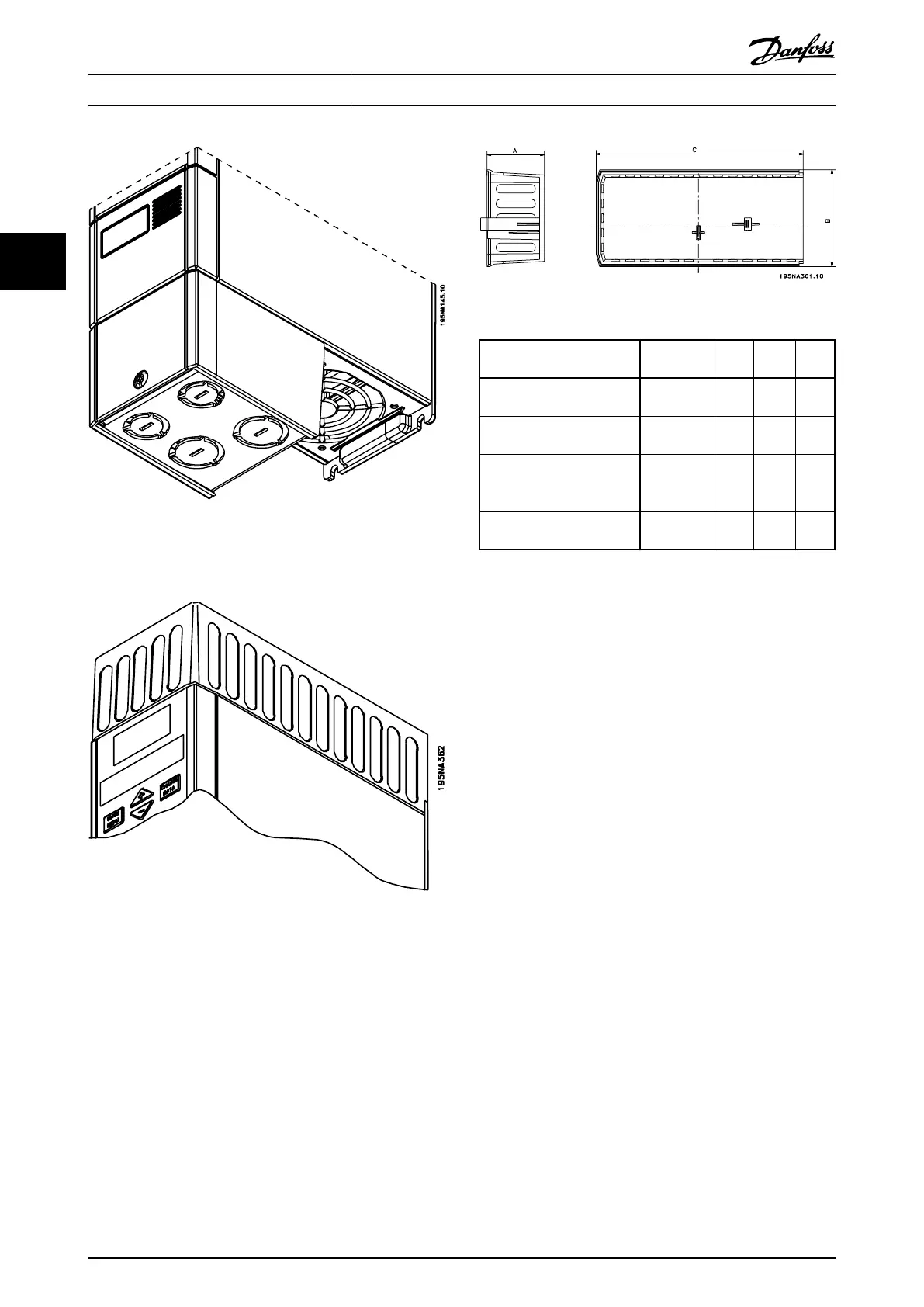

Illustration 3.8 NEMA 1 Terminal Cover
3.1.8
IP21 Solution
Illustration 3.9 IP21 Solution
Illustration 3.10 Dimensions for IP21 Solution
Type Ordering
number
A B C
VLT 2803-2815 200-240 V
VLT 2805-2815 380-480 V
195N2118 47 80 170
VLT 2822 200-240 V
VLT 2822-2840 380-480 V
195N2119 47 95 170
VLT 2840 200-240 V
VLT 2822 PD2
VLT 2855-2875 380-480 V
195N2120 47 145 170
VLT 2880-2882 380-480 V
VLT 2840 PD2
195N2126 47 205 245
Table 3.1 Dimensions
